10.3.3

Removing the SBus Card Adapter Bracket

1. Remove the SBus card extractor (if any) as follows (
a. Slightly bend one extractor leg towards the outside until the extractor leg hook
clears the SBus card hole.
b. Remove the other side of the extractor.
FIGURE 10-14
2. Install the SBus card into the chassis as follows (
a. Holding the SBus card at an angle, insert the SBus card backplate behind the
tabs at the top of the card opening.
b. Lower the SBus card into position.
c. Push the SBus card into the SBus slot by carefully pressing the SBus card
corners.
Caution – Do not force the card or SBus slot pin damage may occur. Ensure the
!
card backplate is visible through the back panel slot.
3. Push the card retainers forward over the edge of the SBus card.
Note – Refer to the SBus product guide to complete any required software
installation, configuration, or setup procedures.

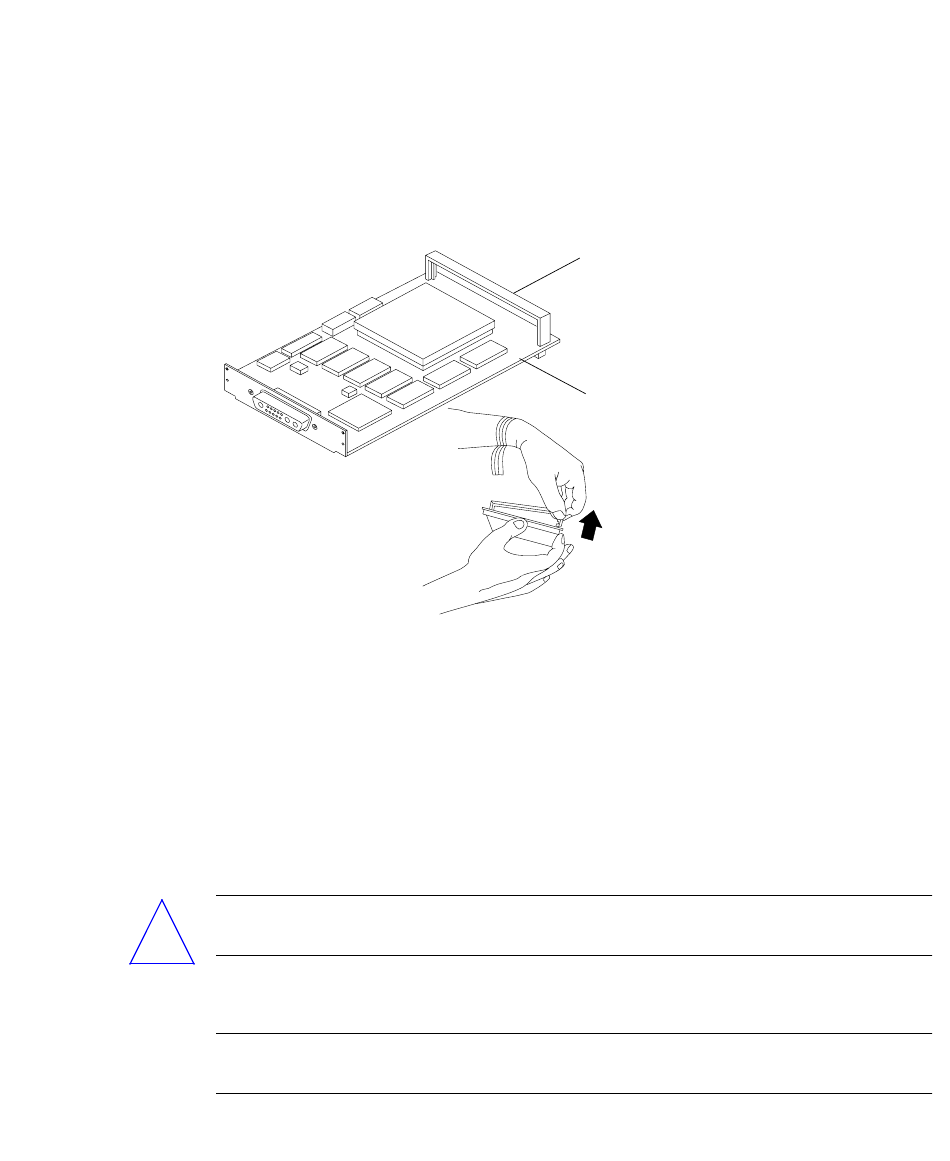

Removing the SBus Card Extractor
Chapter 10
FIGURE 10-14
SBus card extractor
SBus card
FIGURE 10-15
System Board and Component Replacement
):
):
10-17
