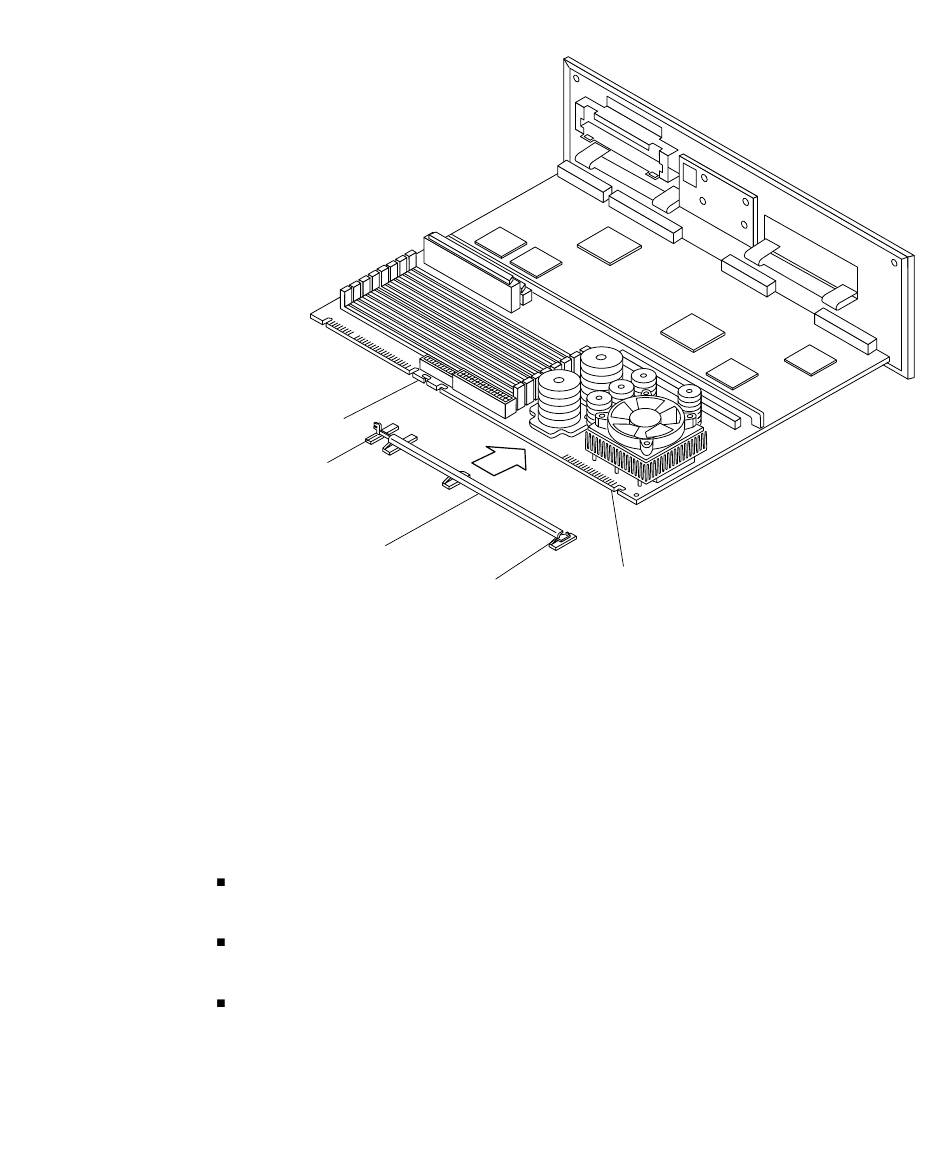

Figure 10-6 Installing The Card Guide - Sun Microsystems Ultra 1 Creator Series Service Manual

Front edge slot
Vertical tab
Card guide
Installing the Card Guide
FIGURE 10-6
3. Slide the system board into the chassis rear. Verify that both sides of the system
board fit into the chassis plastic board guide slots (
4. Tighten the two captive screws that secure the system board back panel to the
chassis (
FIGURE 10-2
5. Populate the system board as follows:
a. Connect the following to the system board:
SCSI cable
See Section 8.5.2 "Replacing the SCSI Cable/Backplane Assembly" on page 8-21.
Speaker/LED cable
See Section 8.7.2 "Replacing the Speaker/LED Cable" on page 8-34.
DC power cables at J2601 and J2603 (
Registration pin
).
FIGURE 10-8
Chapter 10 System Board and Component Replacement
Front edge slot
FIGURE 10-7
).
).
10-7
