Tighten the cable restraint retainer screw to hold the power cords in place.
9.
Insert the power cord plugs into an AC power source receptacle. Verify that the power
10.
cord does not block access to router components or drape where people could trip
on it.
NOTE: Each AC power supply has two AC appliance inlets. Each power
supply must be connected to a dedicated AC power feed. For 100-120
VAC, both inlets are used. For 200-240 VAC, only the top inlet is used. For
information about site power preparations, see "M120 Router Power
Requirements" on page 237.

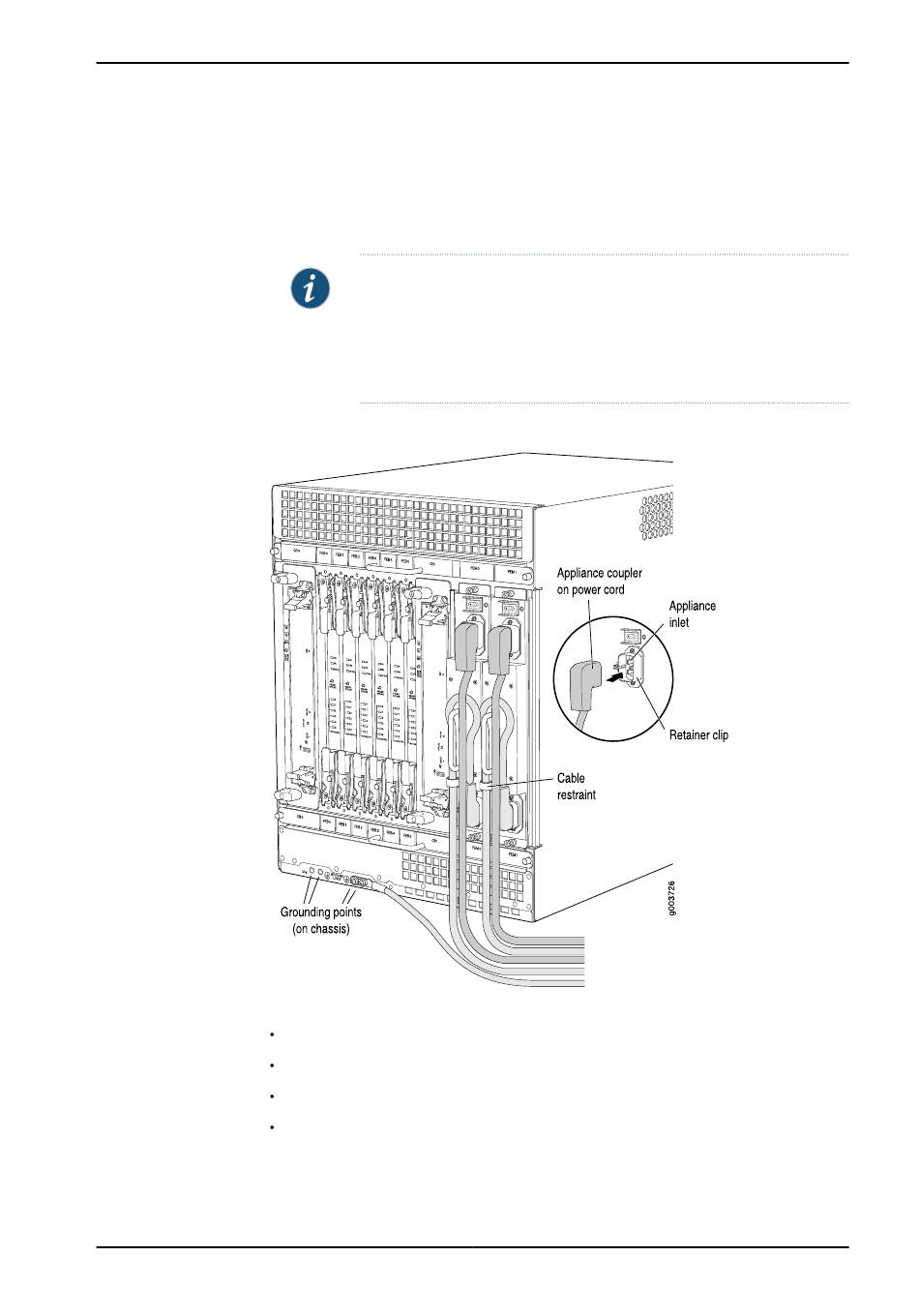

Figure 49: Connecting AC Power to the M120 Router

Installing an M120 AC Power Supply on page 175
Electrical Specifications for the M120 AC Power Supply on page 230
M120 AC Power Supply Description on page 29
M120 AC Power Supply LEDs on page 30
