Juniper MX480 Quick Manual

3d universal edge router
Hide thumbs Also See for MX480:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual, Manual

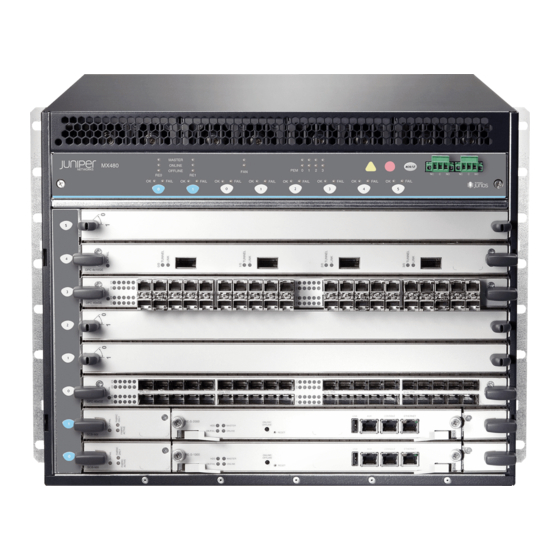

MX480 3D Universal Edge Router
Quick Start
January 2015
Part Number: 530-040794
Revision 01
Contents
Copyright © 2015, Juniper Networks, Inc.
This document describes how to install the Juniper Networks
Router.
MX480 Quick Start Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 1: Prepare the Site for MX480 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rack-Mounting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Open-Frame Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 3: Install the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remove Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install the Router Using a Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the Router Without a Mechanical Lift . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reinstall Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Step 4: Connect the Grounding Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Step 5: Connect External Devices and Line Card Cables . . . . . . . . . . . . . . . . . . . . . 15
Connect to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . . . . 15
Connect a Management Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connect the Line Card Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Step 6: Connect Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Step 7: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Enter Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configure System Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Commit the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
®
MX480 3D Universal Edge
1

Advertisement

Table of Contents
loading

Related Manuals for Juniper MX480

Summary of Contents for Juniper MX480

  • Page 1: Table Of Contents

    MX480 Quick Start Description ......... 3 Step 1: Prepare the Site for MX480 Installation ......4 Rack-Mounting Requirements .
  • Page 2 MX480 3D Universal Edge Router Quick Start Compliance Statements for NEBS ........27 Compliance Statements for EMC Requirements .

  • Page 3: Mx480 Quick Start Description

    For a list of the DPCs supported, see the MX Series 3D Universal Edge Routers Line Card Guide. The MX480 supports up to 3 FPCs containing up to 6 PICs or up to 6 MPCs containing up to 12 MICs. For a list of the supported line cards, see the...

  • Page 4: Step 1: Prepare The Site For Mx480 Installation

    Step 1: Prepare the Site for MX480 Installation Rack-Mounting Requirements on page 4 Tools Required to Unpack and Prepare the MX480 Router for Installation on page 5 Rack-Mounting Requirements You can install the router in a four-post rack or cabinet or an open-frame rack.
  • Page 5 Tools Required to Unpack and Prepare the MX480 Router for Installation Figure 1: MX480 Rack Clearance and Router Dimensions Tools Required to Unpack and Prepare the MX480 Router for Installation To unpack the router and prepare for installation, you need the following tools: A mechanical lift—recommended...

  • Page 6: Step 2: Install The Mounting Hardware In A Four-Post Rack Or Cabinet Or An Open-Frame Rack

    MX480 3D Universal Edge Router Quick Start Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame Rack To install the mounting shelf on the front rails of a four-post rack or cabinet, or the rails...
  • Page 7 Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame Rack Figure 2: MX480 Mounting Hardware for a Four-Post Rack or Cabinet Four-post open rack Small mounting shelf Copyright © 2015, Juniper Networks, Inc.
  • Page 8 MX480 3D Universal Edge Router Quick Start Figure 3: Mounting Hardware for an Open-Frame Rack Copyright © 2015, Juniper Networks, Inc.

  • Page 9: Step 3: Install The Router

    Reinstall Components on page 13 Remove Components Figure 4: Components to Remove from the Front of the MX480 Router Figure 5: Components to Remove from the Rear of the MX480 Router Before lifting the router, you must remove the following components:...

  • Page 10: Install The Router Using A Lift

    Do not stack removed components. Lay each one on a flat surface. NOTE: For complete instructions on removing router components, see “Installing the MX480 Chassis in the Rack Manually” in the MX480 Router Hardware Guide. Install the Router Using a Lift To install the router using a lift: Ensure that the rack is in its permanent location and is secured to the building.
  • Page 11 Install the Router Using a Lift Figure 6: Load the MX480 Router onto the Lift Using the lift, position the router in front of the rack or cabinet, centering it in front of the mounting shelf. Lift the chassis approximately 0.75 in. above the surface of the mounting shelf, and position it as close as possible to the shelf.

  • Page 12: Install The Router Without A Mechanical Lift

    Figure 7: Lift the MX480 Router into the Rack Copyright © 2015, Juniper Networks, Inc.

  • Page 13: Reinstall Components

    Slide each component into the chassis evenly so that it does not become stuck or damaged. Tighten the captive screws for each component. NOTE: Make sure that all empty slots are covered with a blank panel before operating the router. Copyright © 2015, Juniper Networks, Inc.

  • Page 14: Step 4: Connect The Grounding Cable

    MX480 3D Universal Edge Router Quick Start Step 4: Connect the Grounding Cable Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point. See the instructions for your site.

  • Page 15: Step 5: Connect External Devices And Line Card Cables

    If the cable connector port is covered by a rubber safety plug, remove the plug. WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cable connected to a transceiver emit laser light that can damage your eyes. Copyright © 2015, Juniper Networks, Inc.
  • Page 16 MX480 3D Universal Edge Router Quick Start CAUTION: Do not leave a fiber-optic transceiver uncovered except when you are inserting or removing cable. The safety cap keeps the port clean and prevents accidental exposure to laser light. Insert the cable connector into the cable connector port on the faceplate.

  • Page 17: Step 6: Connect Power Cables

    Connect Power to an AC Router with Normal-Capacity Power Supplies Locate the power cords, which should have a plug appropriate for your geographical location (see the MX480 3D Universal Edge Router Hardware Guide). Move the power switch on the power supply faceplate to the standby position.

  • Page 18: Connect Power To A Dc Router With Normal-Capacity Power Supplies

    LED is not lit. PS FAIL Figure 9: Installing an AC Power Supply Connect Power to a DC Router with Normal-Capacity Power Supplies Table 2: MX480 DC Power System Input Voltage Item Specification DC input voltage Operating range: –40.5 to –72 VDC Ensure that the voltage across the DC power source cable leads is 0 V and that there is no chance that the cable leads might become active during installation.
  • Page 19 Connect each DC power cable to the appropriate external DC power source. NOTE: For information about connecting to external DC power sources, see the MX480 3D Universal Edge Router Hardware Guide. Switch on the power supply breakers to provide voltage to the DC power source cable leads.

  • Page 20: Connect Power To A Dc Router With High-Capacity Power Supplies

    MX480 3D Universal Edge Router Quick Start NOTE: All power supplies need to be turned on at the same time. Connect Power to a DC Router with High-Capacity Power Supplies To install a DC power supply: Ensure that the voltage across the DC power source cable leads is 0 V and that there is no chance that the cable leads might become active during installation.
  • Page 21 ) position. Observe the status LEDs on the power supply faceplate. If the power supply is correctly installed and functioning normally, the , and LEDs light PWR OK BRKR ON INPUT OK green steadily. Copyright © 2015, Juniper Networks, Inc.
  • Page 22 MX480 3D Universal Edge Router Quick Start Figure 12: Connecting DC Power to the Router Copyright © 2015, Juniper Networks, Inc.

  • Page 23: Step 7: Perform Initial Software Configuration

    Create a management console user account. [edit] root# set system login user user-name authentication plain-text-password New Password: password Retype new password: password Set the user account class to super-user [edit] root@# set system login user user-name class super-user Copyright © 2015, Juniper Networks, Inc.

  • Page 24: Configure System Attributes

    MX480 3D Universal Edge Router Quick Start Configure System Attributes Configure the name of the router. If the name includes spaces, enclose the name in quotation marks (“ ”). [edit] root@# set system host-name host-name Configure the router's domain name.
  • Page 25 (Optional) Configure additional properties by adding the necessary configuration statements. Then commit the changes to activate them on the router. [edit] root@host# commit When you have finished configuring the router, exit configuration mode. [edit] root@host# exit root@host> Copyright © 2015, Juniper Networks, Inc.

  • Page 26: Safety Warnings

    Only trained and qualified personnel should install or replace the router. Perform only the procedures described in this quick start or the MX480 3D Universal Edge Router Hardware Guide. Other services should be performed by authorized service personnel only.

  • Page 27: Compliance Statements For Nebs

    Compliance Statements for NEBS MX480 3D Universal Edge Router Hardware Guide. To prevent injury, keep your back straight and lift with your legs, not your back. Do not attempt to lift the chassis by the power supply handles. Mount the router at the bottom of the rack if it is the only unit in the rack.

  • Page 28: Compliance Statements For Emc Requirements

    The battery return connection is to be treated as an isolated DC return (i.e. DC-I), as defined in GR-1089-CORE. For Juniper systems with AC power supplies, an external surge protective device (SPD) must be used at the AC power source.

  • Page 29: United States

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Copyright © 2015, Juniper Networks, Inc.

  • Page 30: Junos Documentation And Release Notes

    7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: http://www.juniper.net/customers/support/...

  • Page 31: Opening A Case With Jtac

    Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
