To remove a FEB (see Figure 74 on page 150):
Place an electrostatic bag or antistatic mat on a flat, stable surface.
1.
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
2.
the strap to one of the ESD points on the chassis.
Press and hold down the online/offline button on the FEB faceplate until the green
3.
OK LED goes out (about 5 seconds).
Loosen the captive screws (using a Phillips (+) screwdriver, number 2) on the ejector
4.
handles on each side of the FEB faceplate.
Flip the ejector handles outward to unseat the FEB.
5.
Grasp both ejector handles, pull firmly, and slide the FEB about three-quarters of the
6.
way out of the chassis.
Place one hand underneath the FEB to support it and slide it completely out of the
7.
chassis. Place it on the antistatic mat.
CAUTION: Do not stack hardware components on one another after you
remove them. Place each component on an antistatic mat resting on a
stable, flat surface.

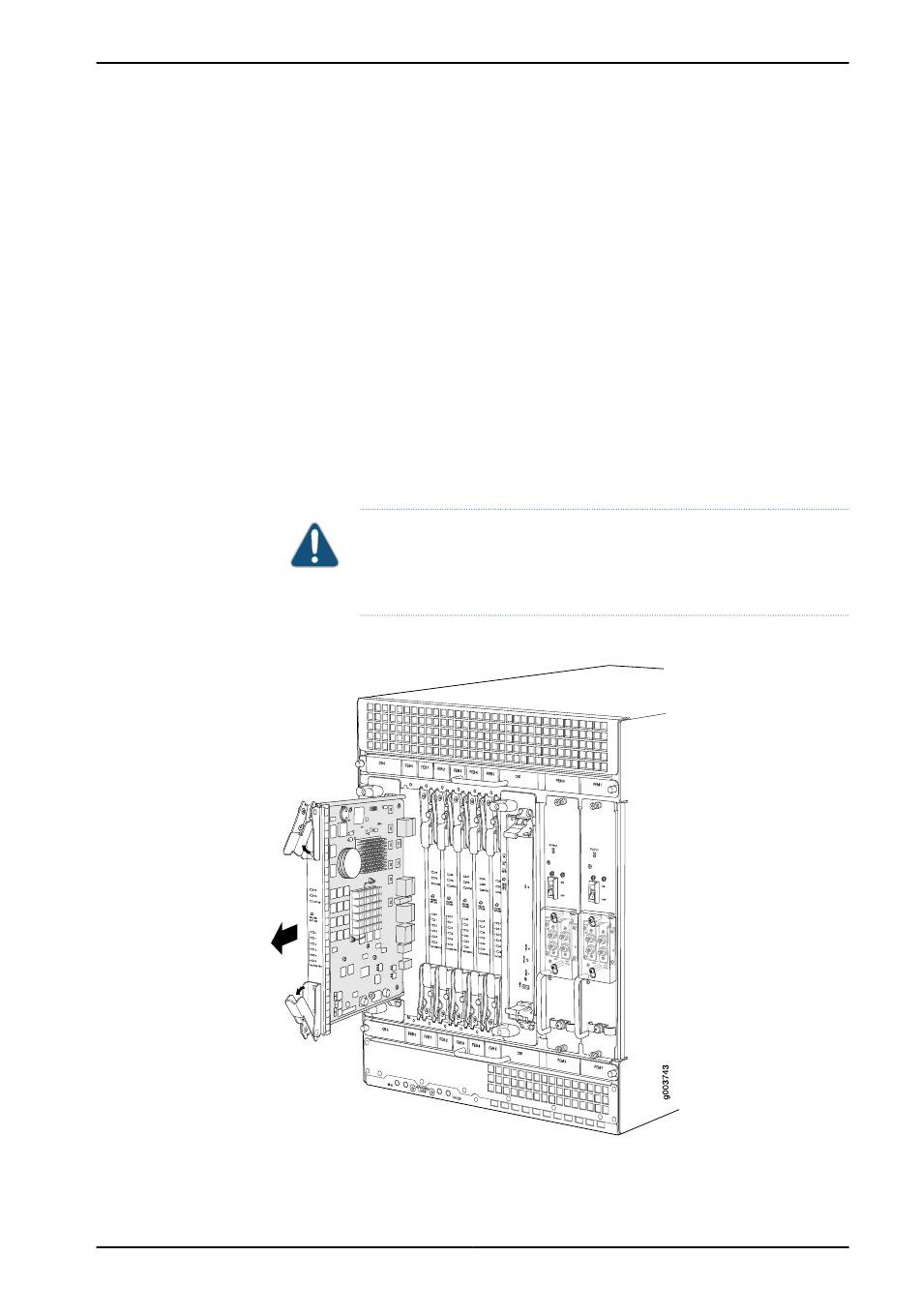

Figure 74: Removing an M120 FEB
