Removing the Cable Management System

Copyright © 2010, Juniper Networks, Inc.
All manuals and user guides at all-guides.com

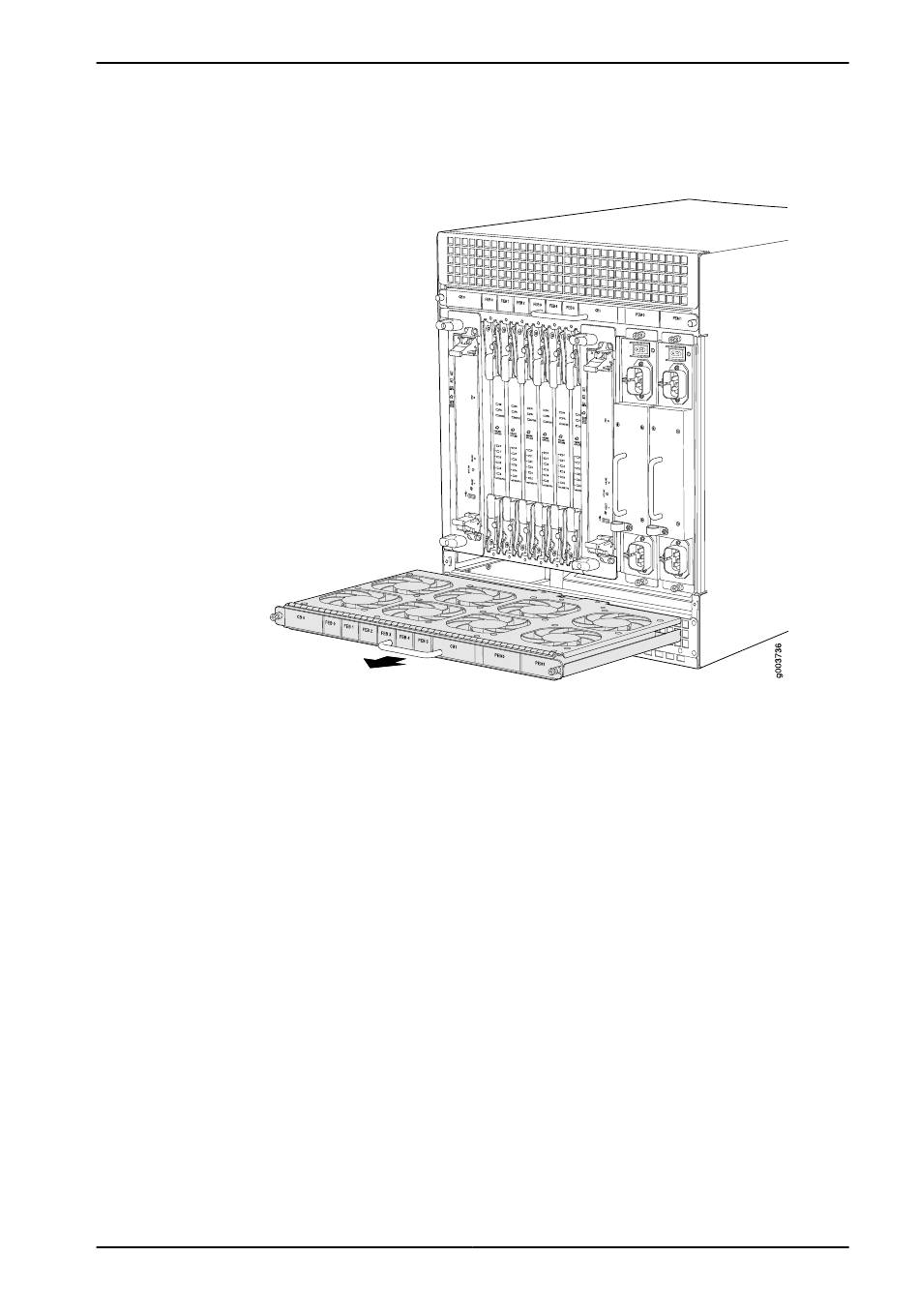

Figure 30: Removing a Lower Rear Fan Tray Before Installing the M120

Router
The cable management system is located below the FPC card cage. The cable
management system weighs approximately 5 lb (2.3 kg).
To remove the cable management system (see Figure 31 on page 66):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to an approved site ESD grounding point. See the instructions for your site.
Using a 3/8-in. nut driver, unscrew the nuts on the corners of the cable management
2.
system.
Grasp the bottom of the cable management system and pull it straight out from the
3.
studs on the front of the chassis.
