Connecting the M120 Router to a Network for In-Band Management

84
All manuals and user guides at all-guides.com

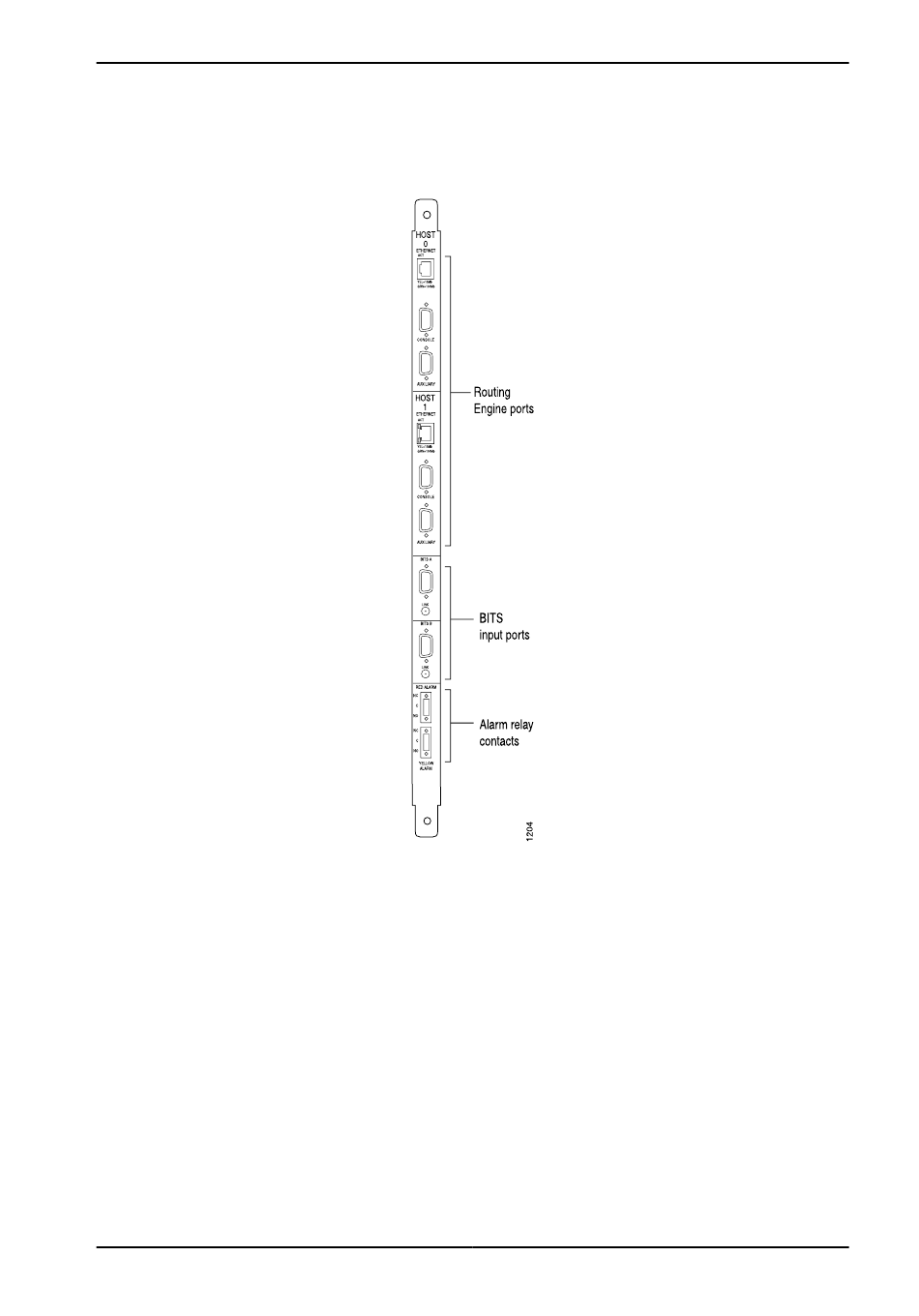

Figure 44: M120 Routing Engine Management Ports and Alarm Relay

Contacts
To connect the Routing Engine to a network for out-of-band management, connect an
Ethernet cable with RJ-45 connectors to the
such cable is provided with the router. For cable specifications, see "Routing Engine
Interface Cable and Wire Specifications for the M120 Router" on page 246. To connect the
Routing Engine to a network for out-of-band management:
Turn off the power to the management device.
1.
Plug one end of the Ethernet cable (Figure 45 on page 85 shows the connector) into
2.
the appropriate
ETHERNET
device ports on the CIP. The ports labeled
the upper Routing Engine slot (
Routing Engine in the lower Routing Engine slot (
Plug the other end of the cable into the network device.
3.
port on the craft interface. One
ETHERNET
port on the CIP. Figure 46 on page 85 shows the external
HOST 0 connect to the Routing Engine in
RE 0 ), and the ports labeled
RE 1 ).
Copyright © 2010, Juniper Networks, Inc.
HOST 1 connect to the
