M120 Multiservice Edge Router Hardware Guide
156
All manuals and user guides at all-guides.com
You can also verify correct FPC and PIC functioning by issuing the
show chassis fpc pic-status
on page 106 and "Maintaining M120 PICs and PIC Cables" on page 112.

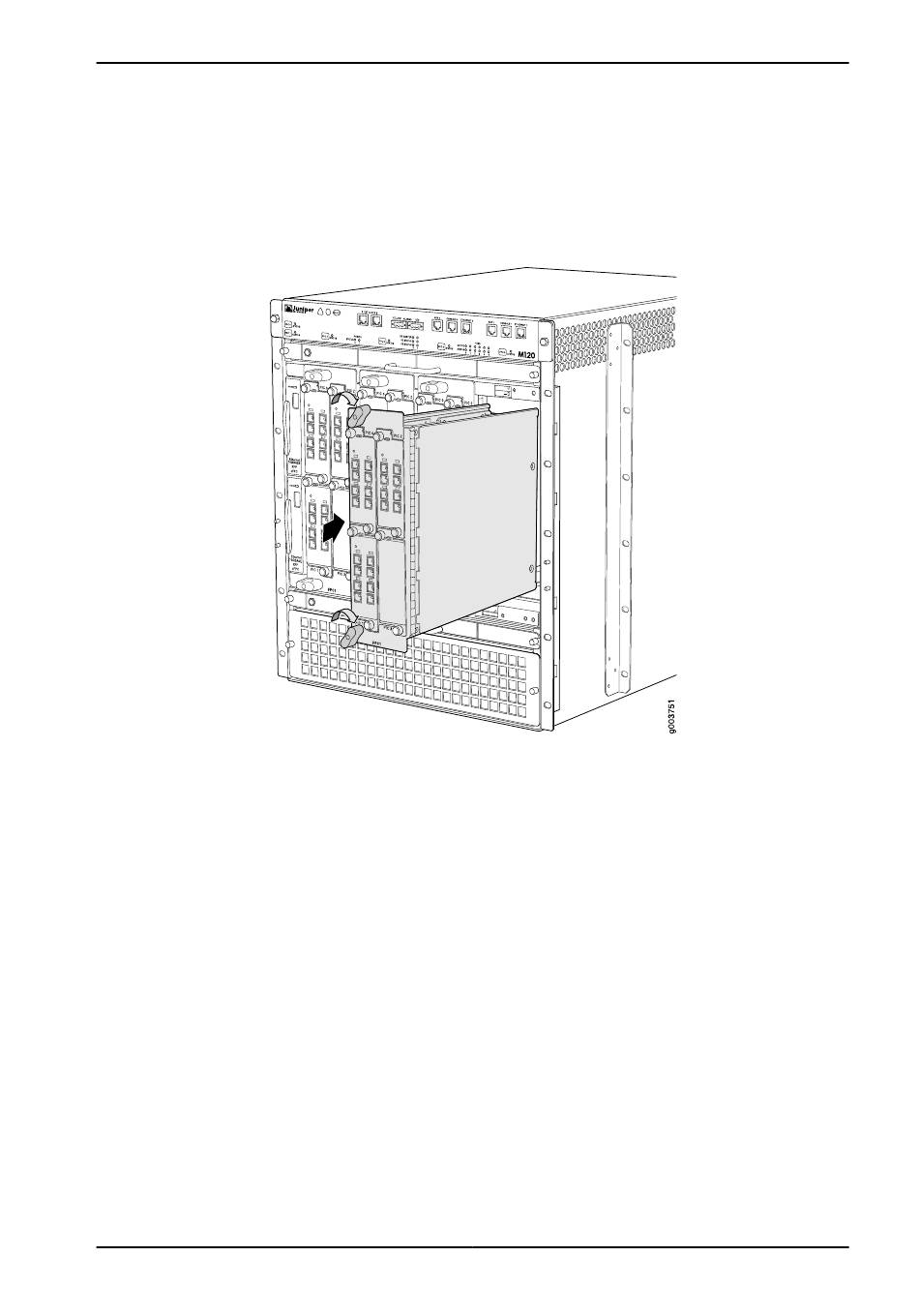

Figure 77: Installing an M120 FPC

commands described in "Maintaining M120 FPCs and CFPCs"
show chassis fpc
Copyright © 2010, Juniper Networks, Inc.
and
