Upgrading a Multicarrier G2 Universal Module to Avaya

DEFINITY Server R EPN running Avaya MultiVantage

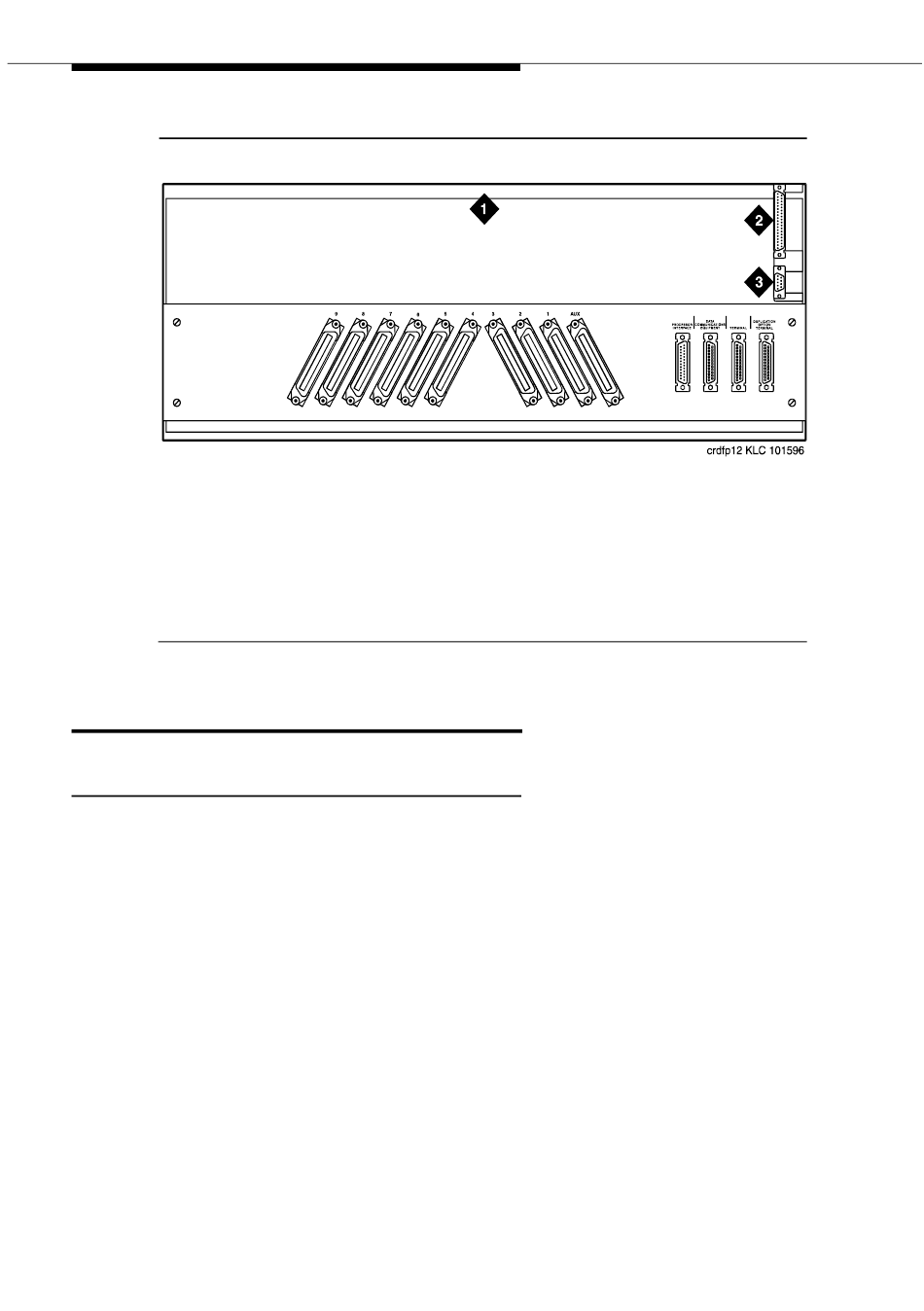

Figure Notes

1. Rear of Control Carrier

2. P2 Connector

Figure 5-11. Location of P1 and P2 Connectors

Install Expansion Control Carrier(s)

Prepare the New A and B Position Carriers

1. Inspect the new carriers for any damage. Verify that the backplane pins are

2. Place the expansion control carrier on the floor so that the rear of the

carrier faces up.

3. Install the CFY1 current limiter (CURL) on the "A" carrier to the pin-field

block marked "CURL." The CURL is inserted with the components on the

left side as viewed from the rear.

4. At the rear connector panel, determine which connectors will have a cable

attached, and install a 4B cable retainer on each of these connectors.

Issue 5 October 2002

3. P1 Connector
