Add IP Solutions
8 7
Figure Notes
1. Amphenol connector to connector
corresponding to TN802B slot
2. To VGA monitor
3. To USB (not used)
4. To keyboard

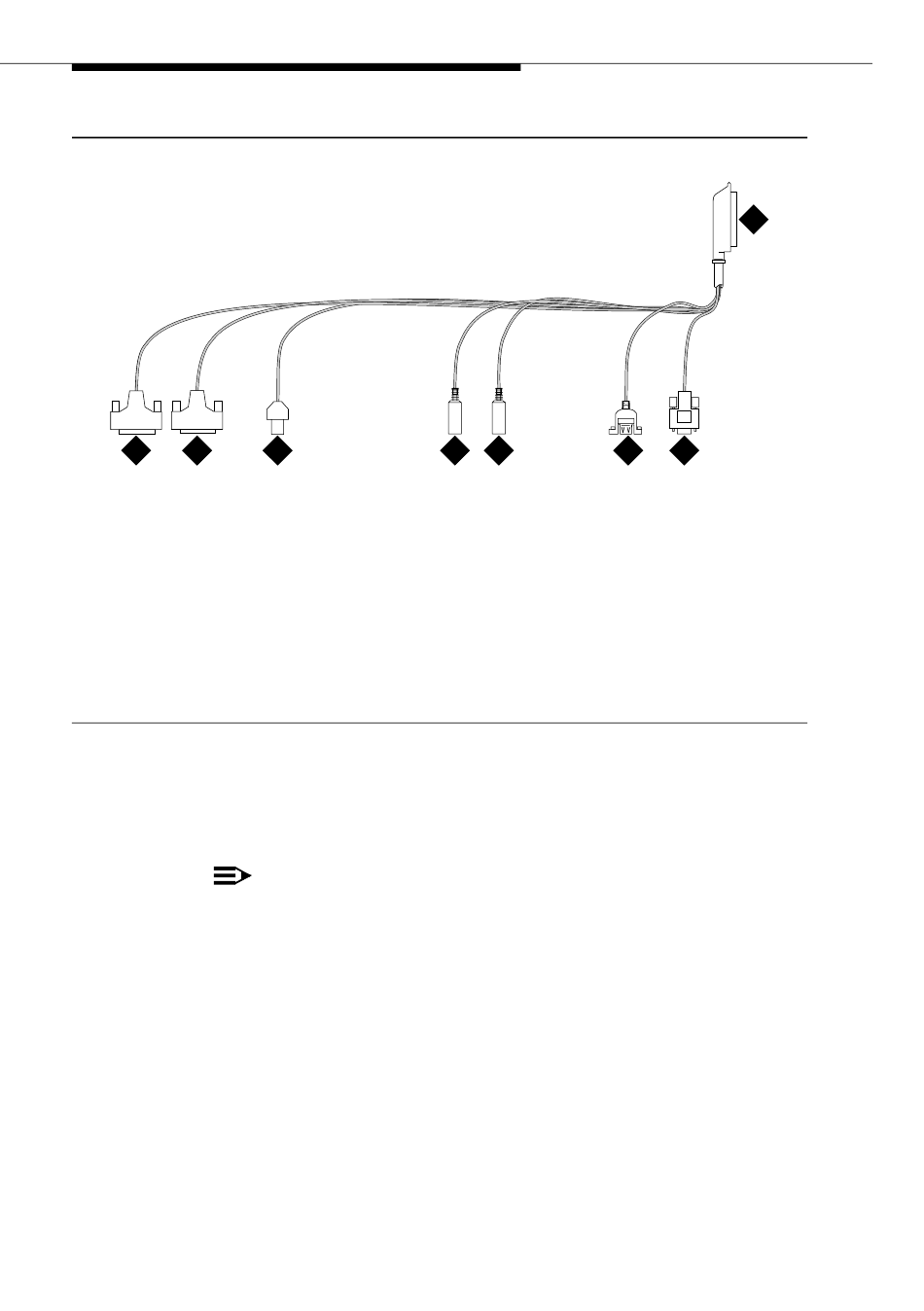

Figure 7-9. TN802B IP Interface External Cable Assembly
Connect the Cables
1. Determine into which port slots you are putting the TN799B C-LAN and
TN802B IP Interface circuit packs.
From the rear of the cabinet:
2. If adding a new TN799B, connect the 259A connector to the backplane
connector corresponding to the TN799B slot.
3. If adding a new TN799B, connect one end of the DW8 cable to the 259A
connector. Connect the other end to the customer's network.
4. Connect the amphenol connector on the external cable assembly to the
backplane connector corresponding to the TN802B slot (the highest
numbered connector of the 3 slots required)
555-233-115
6
NOTE:
Make sure that at least 3 adjacent slots are free for the TN802B.
5 4 3
5. To mouse
6. To ethernet
7. 25-pin male connector to modem
8. 25-pin male connector to COM2
Issue 5 October 2002
1
2
cbdfocto AWF 122398
7-73
