Adding New Carriers and EPN Cabinets
9. Also if high or critical reliability, for the PPN connect the loose end of the
TDM/LAN cable (between the A and D carriers) to the other pin-field block
marked TDM/LAN on the right side of the D carrier. See
Table
carrier was removed.
SLOT 21
SLOT 21
TDM/LAN CABLE
WP91716 L6
SLOT 21
TDM/LAN CABLE
WP91716 L7
TDM/LAN BUS
TERMINATOR
(ZAHF4)
NOTE:
ON PORT CARRIER J68890BB-1, CONNECT TDM/LAN CABLE OR TDM/LAN TERMINATOR TO SLOT 02.
ON PORT CARRIERS J58890BB-2 AND -3, CONNECT THE TDM/LAN CABLE OR TDM/LAN TERMINATOR
TO SLOT 1.

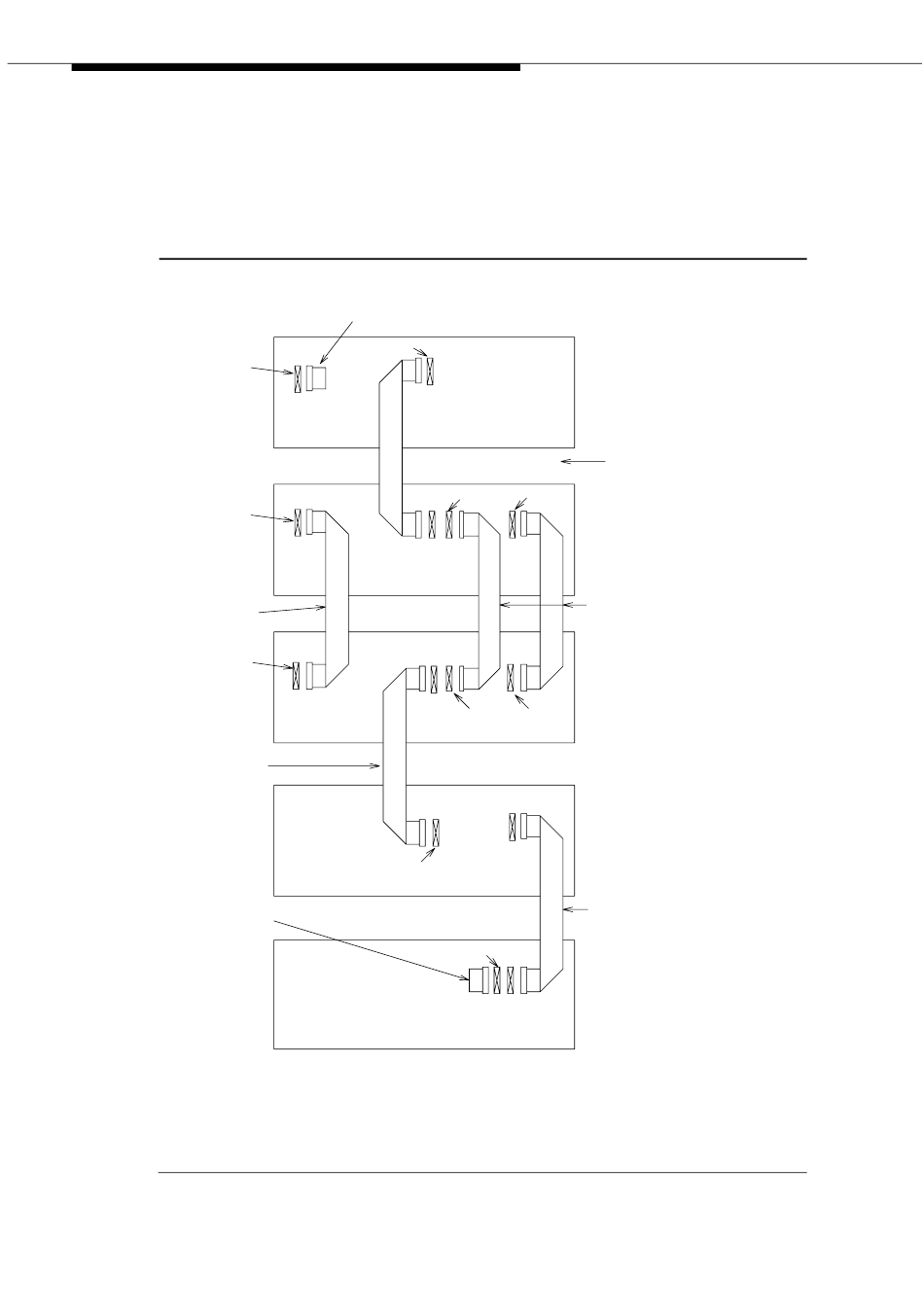

Figure 6-34. TDM/LAN Connections for PPN (Critical Reliability)
6-64
Issue 5 October 2002
6-4. The other end remained connected to the A carrier when the old
TDM/LAN BUS TERMINATOR
(ZAHF4)
SEE NOTE
PORT CARRIER
CONTROL CARRIER
CONTROL
CARRIER
SLOT 01

SWITCH NODE CARRIER

SWITCH NODE CARRIER
REAR VIEW
J58890BB
C POSITION
TDM/LAN CABLE
WP91716 L6
ICCD ICCC
J58890AP-1
B POSITION
INTERCARRIER
CABLES C AND D
H600-182 AND WP-91954
J58890AP-1
A POSITION
ICCD
ICCC
J58890SA-1
D POSITION
TDM/LAN CABLE
WP91716 L6
SLOT 01
J58890SA-1
E POSITION
Figure 6-34 and
555-233-115
