7.7.1.3 Transmit | Reed-Solomon Page
These selections are active only when the Reed-Solomon option is installed.
Transmit | Reed-Solomon Page
Reed-Solomon
Control
Interleaver Depth
Reed-Solomon Rate
Web Browser

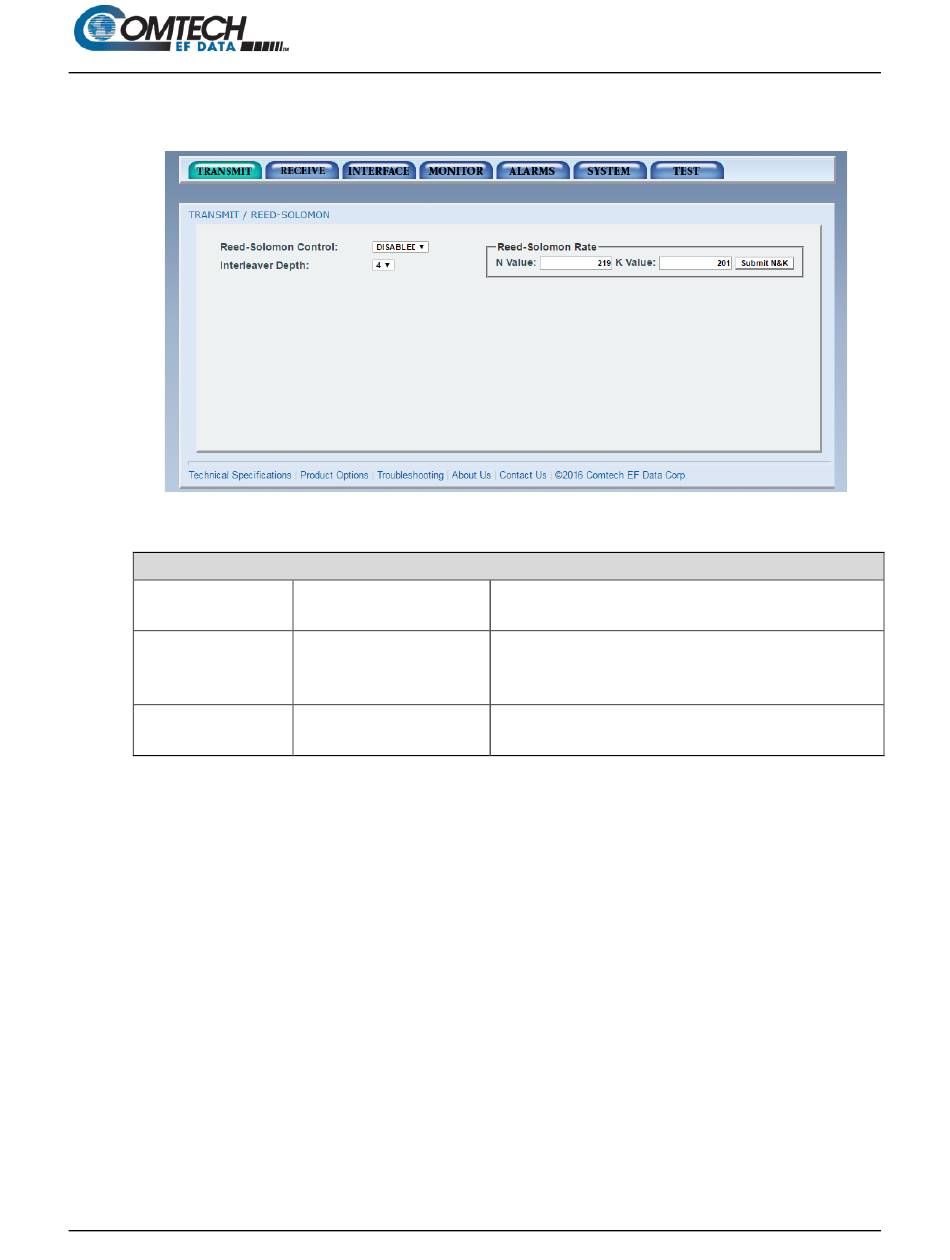

Figure 7-14. Transmit | Reed-Solomon Page Example

DISABLED
•
ENABLED
•
4
•
8
•
12
•
N Value
•
K Value
•
7–22
DMD1050TS Satellite Modem Board
Enable or disable the R-S Encoder.
Use to select the R-S interleaver depth. In Closed Net
Mode, select a depth of 4 or 8.
Use to select custom R-S Codes in Closed Net Mode. This
shows the currently used n, k, R-S Codes.
