7.7.1.4 Transmit | ODU-BUC Page
Transmit | ODU-BUC Page
LO Frequency (MHz)
Osc Side Band
Carrier Delay (sec)
10 MHz BUC
Reference
Low Alarm Thrsh
(Volts)
Low Alarm Thrsh
(Amps)
High Alarm Thrsh
(Volts)
High Alarm Thrsh
(Amps)
BUC Voltage
FSK
FSK Comms
FSK Test
BUC Address
Web Browser

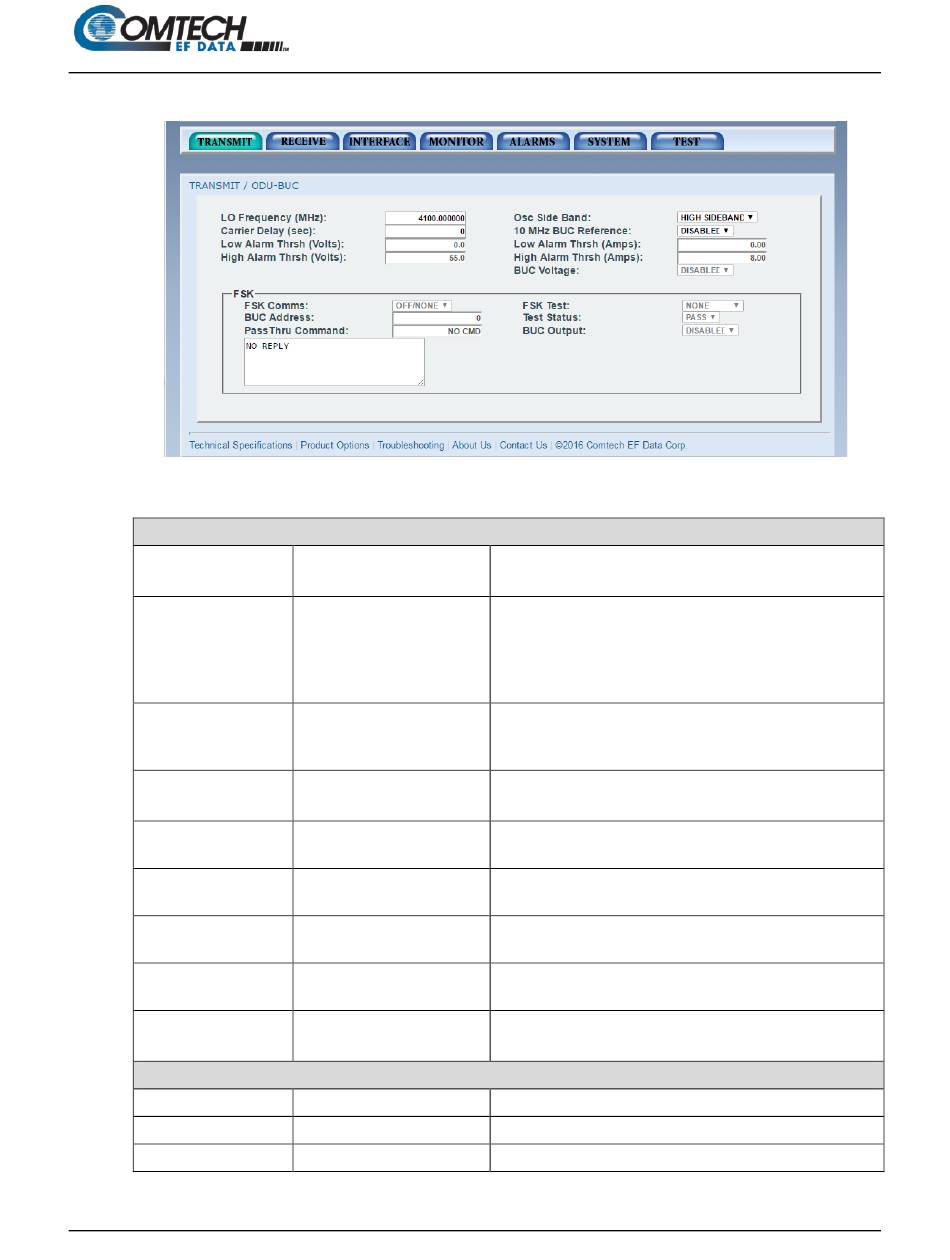

Figure 7-15. Transmit | ODU-BUC Page Example
DISABLED
•
ENABLED
•
LOW SIDEBAND
•
HIGH SIDEBAND
•
0 to 255
•
DISABLED
•
ENABLED
•
0.00
•
0.00
•
0.00
•
0.00
•
DISABLED
•
ENABLED
•
7–23
DMD1050TS Satellite Modem Board
Enable or disable the Local Oscillator frequency of the BUC
LO.
Use to select the location of the BUC LO. Enter the location
of the BUC LO for the UPLINK FREQUENCY to show
correctly. The BUC LO can be higher or lower in frequency
than the BUC output frequency. If the BUC LO is higher in
frequency, then enter HIGH SIDEBAND.
Use to select the time delay to occur after power-up, before
the Tx Carrier can be enabled. This allows time for the BUC
to stabilize.
Enable or disable the 10 MHz BUC reference clock.
Use to set the lower alarm limit/threshold for the BUC
voltage.
Use to set the lower alarm limit/threshold for the BUC
current.
Use to set the high alarm limit/threshold for the BUC
voltage.
Use to set the high alarm limit/threshold for the BUC
current.
Enable or disable the BUC supply voltage.
Not Available on the DMD1050TS.
Not Available on the DMD1050TS.
Not Available on the DMD1050TS.
