7.7.6.3 Test | Spectrum Plot Page
The Spectrum Plot page shows the RX Input spectrum sampled data as seen by the receiver,
with a center frequency of the receiver's tuned frequency.
Test | Spectrum Plot Page
AVERAGING
RESOLUTION
BAND
PICK A COLOR
ZOOM
START
STOP
Web Browser

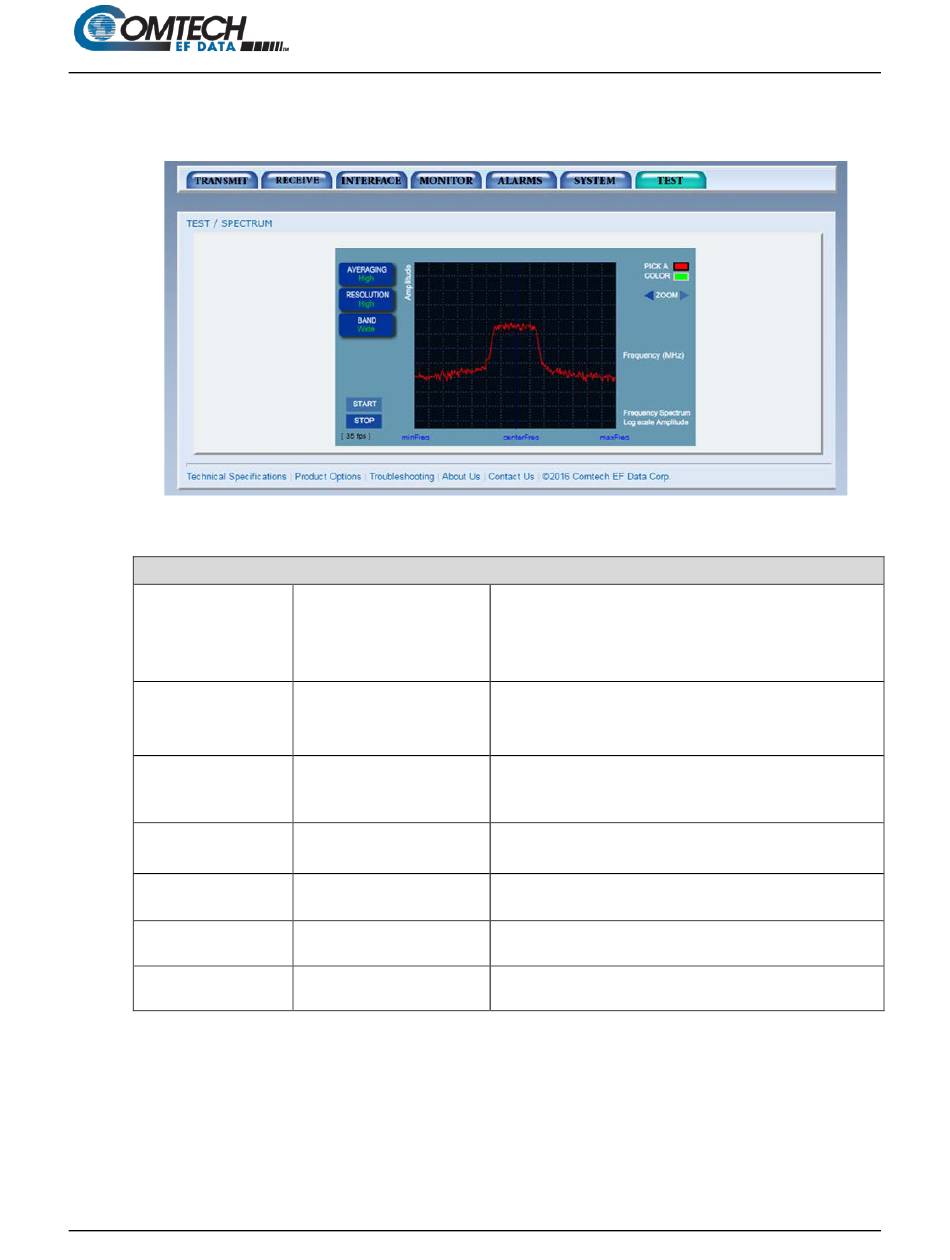

Figure 7-40. Test | Spectrum Plot Page Example
Off
•
Low
•
Medium
•
High
•
Low
•
Medium
•
High
•
Narrow
•
Wide
•
RED
•
GREEN
•
7–72
DMD1050TS Satellite Modem Board
Hover over the AVERAGING button to display the
selections. Click on one of the selections, and then it will
appear in green on the AVERAGING button.
Hover over the RESOLUTION button to display the
selections. Click on one of the selections, and then it will
appear in green on the RESOLUTION button.
Hover over the BAND button to display the selections. Click
on one of the selections, and then it will appear in green on
the BAND button.
Use to select color preference.
After starting the test, use the arrows on either side of
ZOOM to zoom in / out of the graph.
Use to run the Spectrum Plot.
Use to end the Spectrum Plot.
