7.7.3 Interface Menu

The Interface Menu has the following submenus:
•
TX Setup
•
RX Setup
•
General
7.7.3.1 Interface | TX Setup Page
Interface | TX Setup Page
Circuit ID
Terrestrial Interface
Terr. Clock Source
Tx Clock Polarity
SCT Clock Source
SCT Clock Polarity
Esc Ch. 1 Gain
Esc Ch. 2 Gain
Web Browser

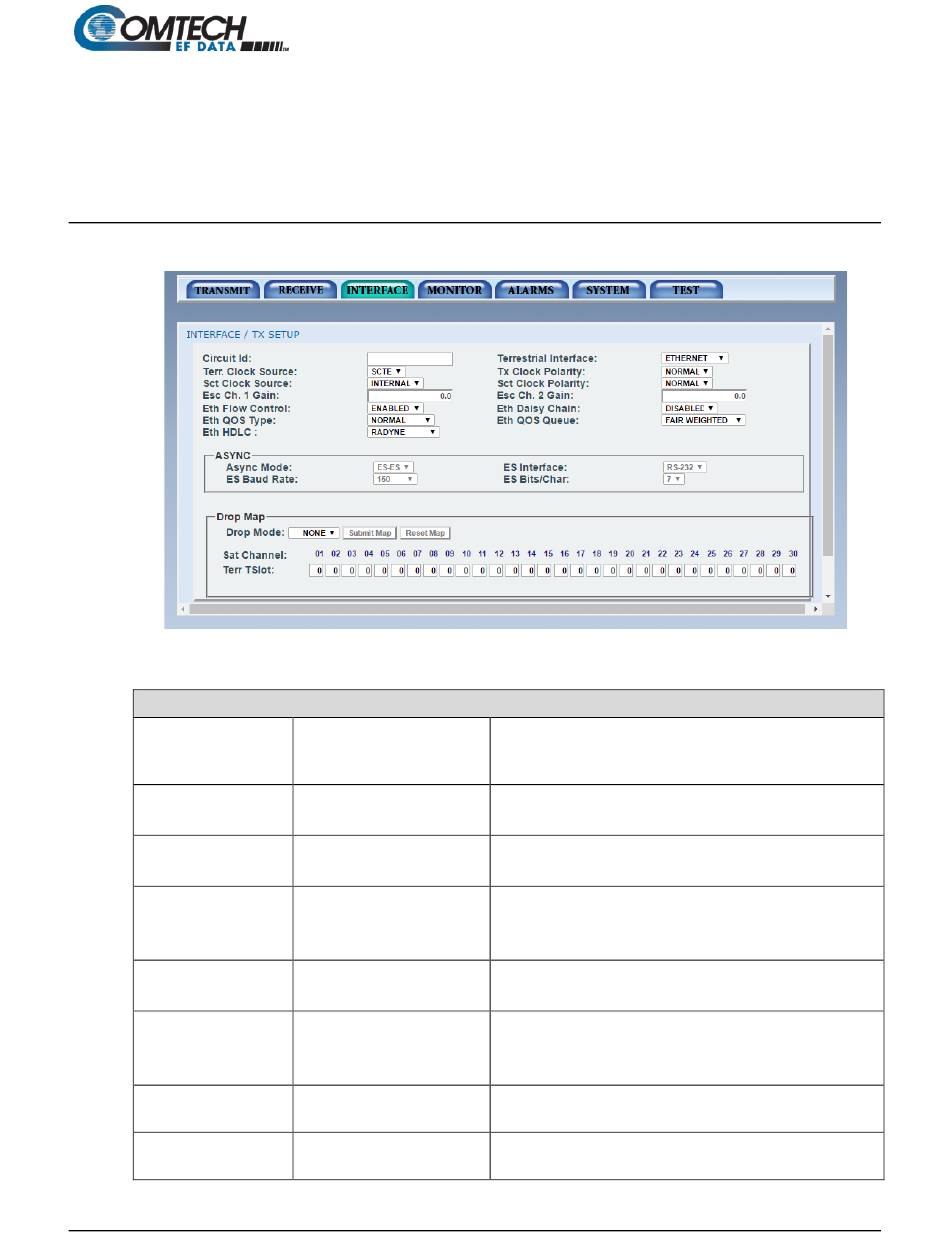

Figure 7-24. Interface | TX Setup Page Example
ETHERNET
•
MIL 188 114A
•
SCTE
•
SCT
•
AUTO
•
NORMAL
•
INVERTED
•
INTERNAL (SCT)
•
SCR (Rx SAT CLK)
•
AUTO
•
NORMAL
•
INVERTED
•
-20 to +10 dB
•
-20 to +10 dB
•
7–42
DMD1050TS Satellite Modem Board
Use to enter a Tx Circuit Identifier. Circuits can have an
identifier of up to 11 alphanumeric characters, such as
LINK1.
Use to select the Transmit type.
Use to select the Transmit Clock source.
Use to select the Clock Polarity for the Tx Terrestrial Clock
relative to the Tx Data. Select Auto to cause the unit to
detect wrong polarity and correct it automatically.
Use to select the SCT Source to be the SCT Oscillator or
the RX Satellite Clock. Rx SAT CLK is for loop timing.
Use to select the Clock Polarity for the Tx Terrestrial Clock
relative to the Tx Data. Select Auto to cause the unit to
detect wrong polarity and correct it automatically.
Use to select ESC Voice Channel Gain. Only displayed
when IDR NETWORK and VOICE Channel are selected.
Use to select ESC Voice Channel Gain. Only displayed
when IDR NETWORK and VOICE Channel are selected.
