7.7.4.5 Alarms Menu
The Alarms menu has the following submenus:
•
TRANSMIT
•
RECEIVE
•
COMMON
•
BACKWARD
7.7.4.6 Alarms | Transmit Page
Alarms | Transmit Page
MAJOR ALARMS
FPGA Config
DSP Config
Sct Clock PLL
Sym Clock PLL
Web Browser

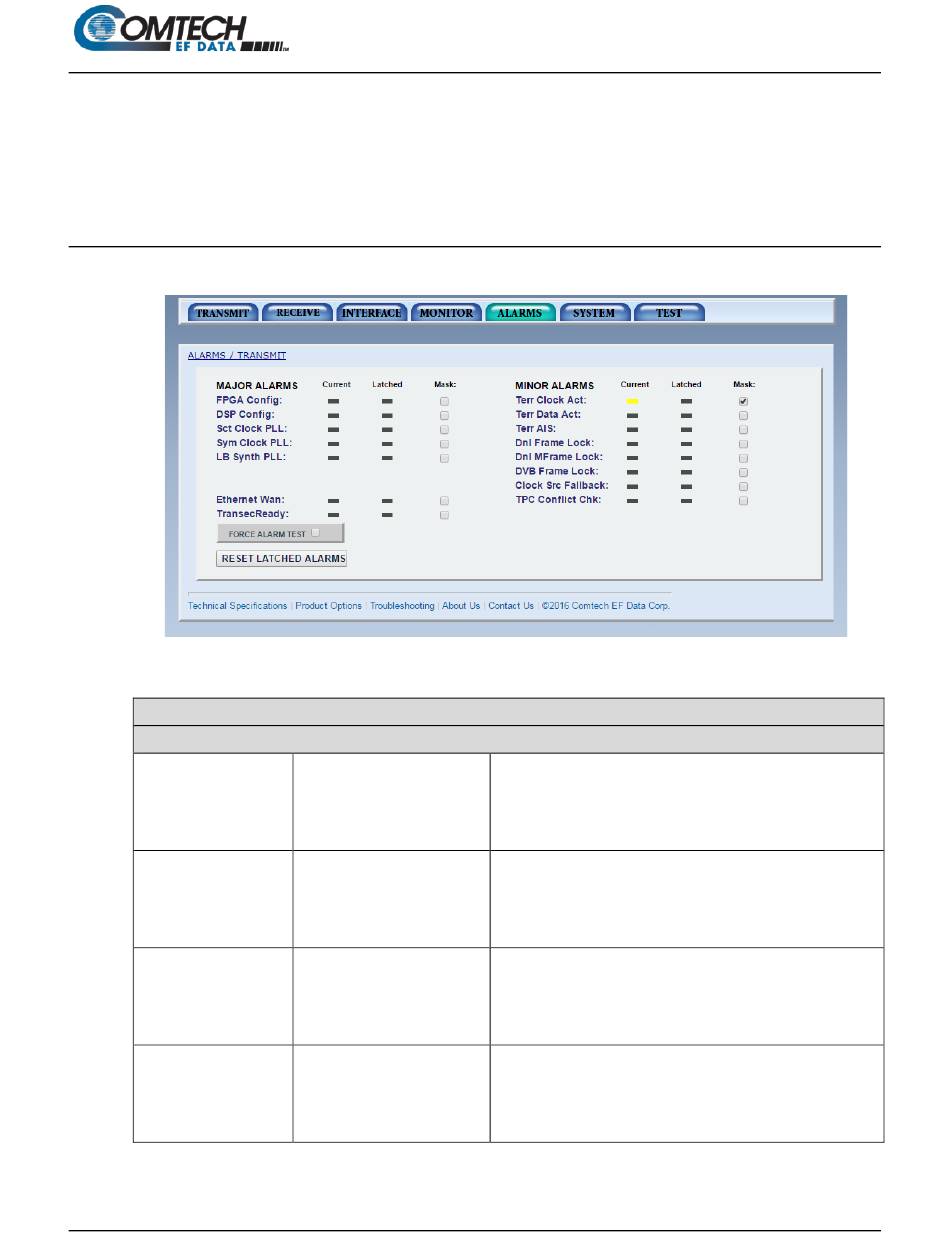

Figure 7-31. Alarms | Transmit Page Example
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check))
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
7–53
DMD1050TS Satellite Modem Board
This shows if a transmit FPGA configuration failure exists.
This shows if a transmit DSP configuration failure exists.
This shows if the Tx SCT Clock PLL is not locked. This
alarm flashes during certain modem parameter changes. A
steady glow means a configuration failure exists in the
modem.
This shows if the Tx Symbol Clock PLL is not locked. This
alarm flashes during certain modem parameter changes. A
steady glow means a problem exists with the incoming
clock to the modem (SCTE).
