7.7.4.2 Monitor | ETH Link Status Page
Monitor | ETH Link Status Page
Total Packets
Error Packets
Packet Error Rate
Reset Ethernet
Packet Stats
JS1 Port
Web Browser

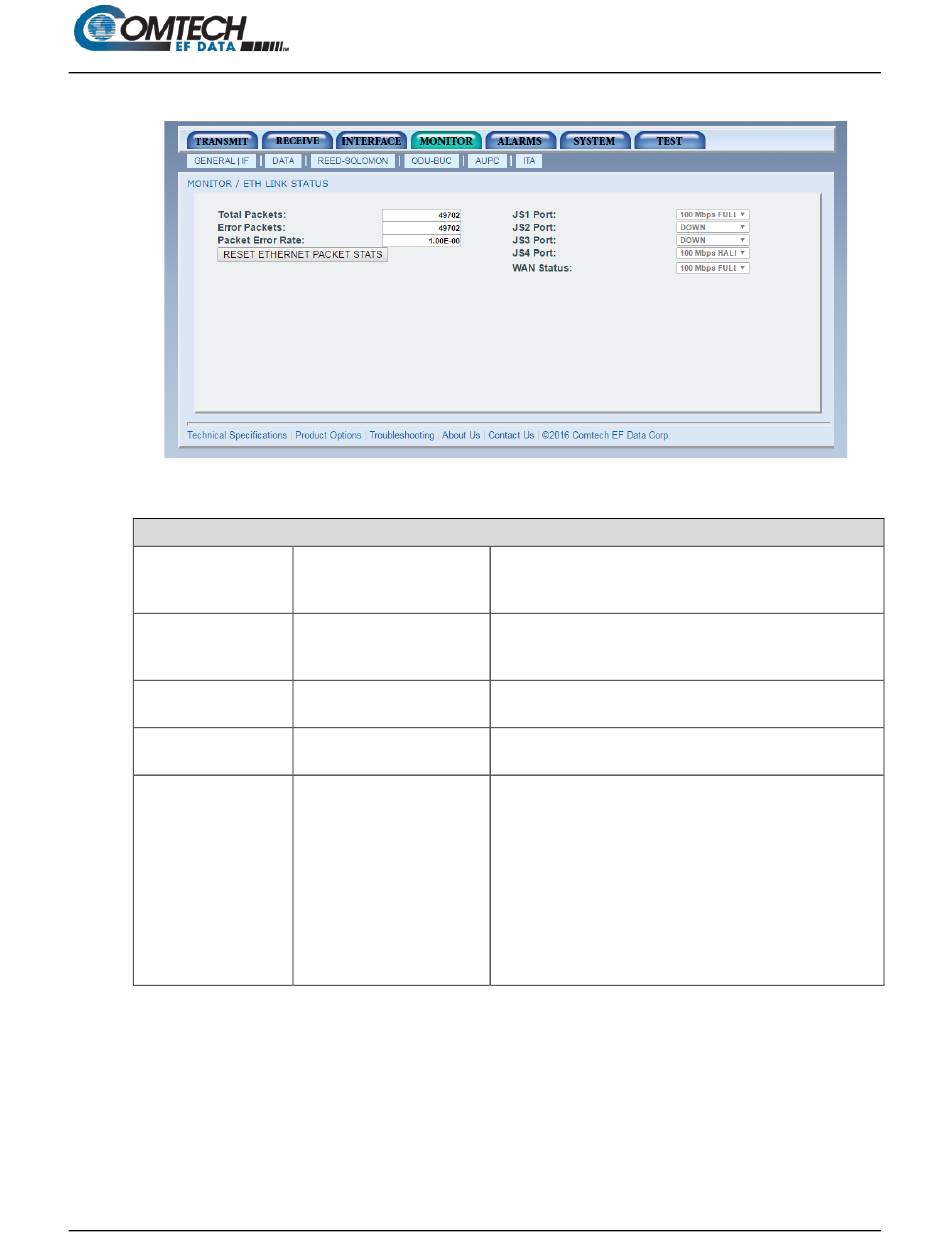

Figure 7-28. Monitor | ETH Link Status Page Example
Down
•
Unresolved
•
10 Mbps Half
•
10 Mbps Full
•
100 Mbps Half
•
100 Mbps Full
•
Unused
•
7–49
DMD1050TS Satellite Modem Board
Read only; this shows the total number of Ethernet packets
received from the satellite. It is visible only when the
interface type is Ethernet.
Read only; this shows the number of erred Ethernet
packets received from the satellite. It is visible only when
the interface type is Ethernet.
Read only; this shows the satellite Packet Error Rate. It is
visible only when the interface type is Ethernet.
Use to reset the Ethernet packet statistics. It is visible only
when the interface type is Ethernet.
Read only; this shows the status of the M&C Port.
Down - the link is down.
•
Unresolved – cannot agree on connection speed.
•
10 Mbps Half – connected at 10 Base-T Half Duplex.
•
10 Mbps Full – connected at 10 Base-T Full Duplex.
•
100 Mbps Half – connected at 100 Base-T Half
•
Duplex.
100 Mbps Full – connected at 100 Base-T Full Duplex.
•
Unused – the port is not available.
•
