7.7.2.3 Receive | Reed-Solomon Page
Receive | Reed-Solomon Page
Reed-Solomon
Control
Reed-Solomon N
Value
Reed-Solomon K
Value
Interleaver Depth
Web Browser

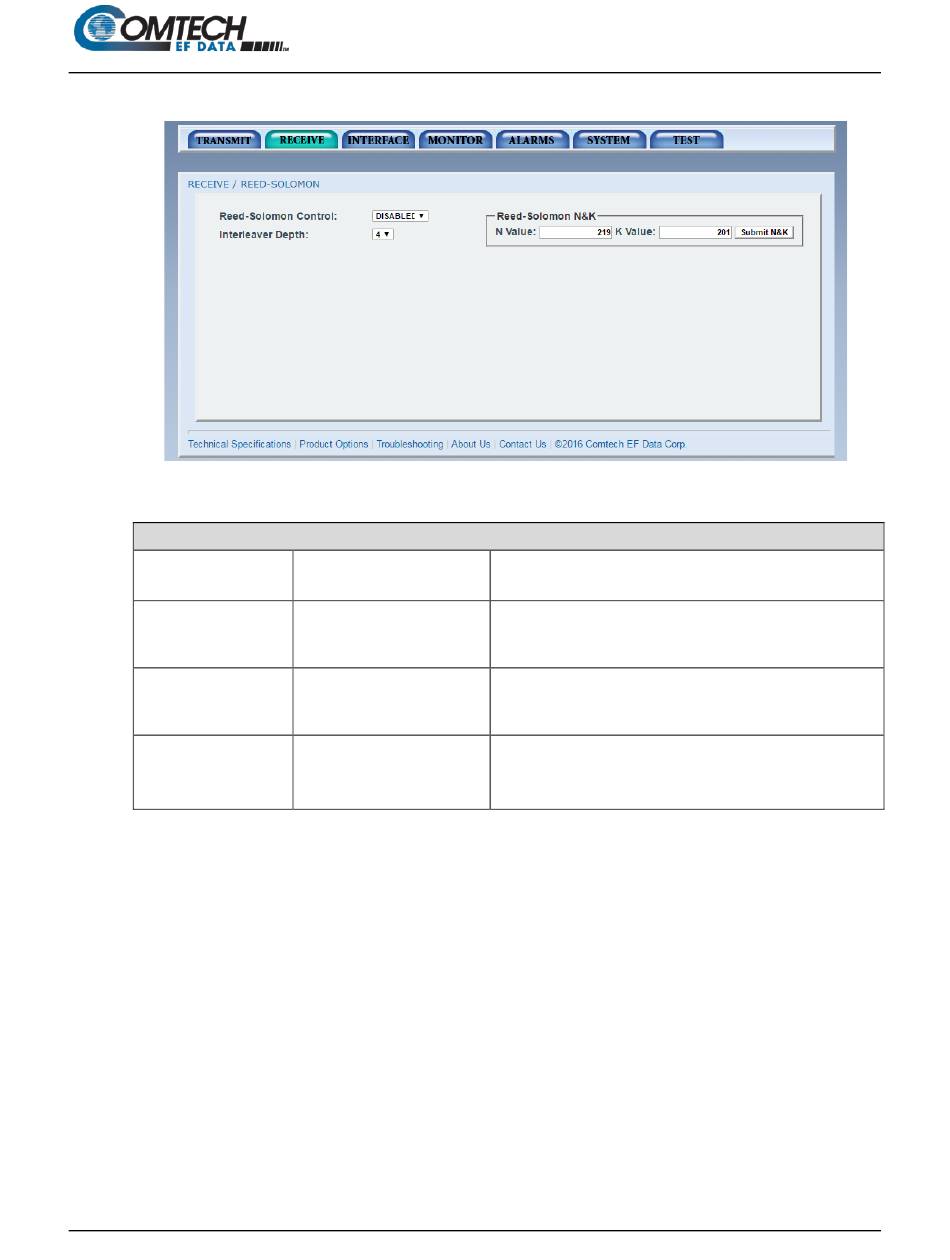

Figure 7-20. Receive | Reed-Solomon Page Example
DISABLED
•
ENABLED
•
Refer to AN177 for
•
custom Reed Solomon
N/K combinations
Refer to AN177 for
•
custom Reed Solomon
N/K combinations
4
•
8
•
12
•
7–37
DMD1050TS Satellite Modem Board
Enable or Disable the Reed-Solomon Encoder.
Shows the N value in use of the Reed-Solomon codes.
Shows the K value in use of the Reed-Solomon codes.
Use to select the Reed-Solomon interleaver depth.
In Closed Net Mode, select a depth of 4 or 8.
