Fisher FIELDVUE DVC6200p Instruction Manual page 70

Parts
June 2017

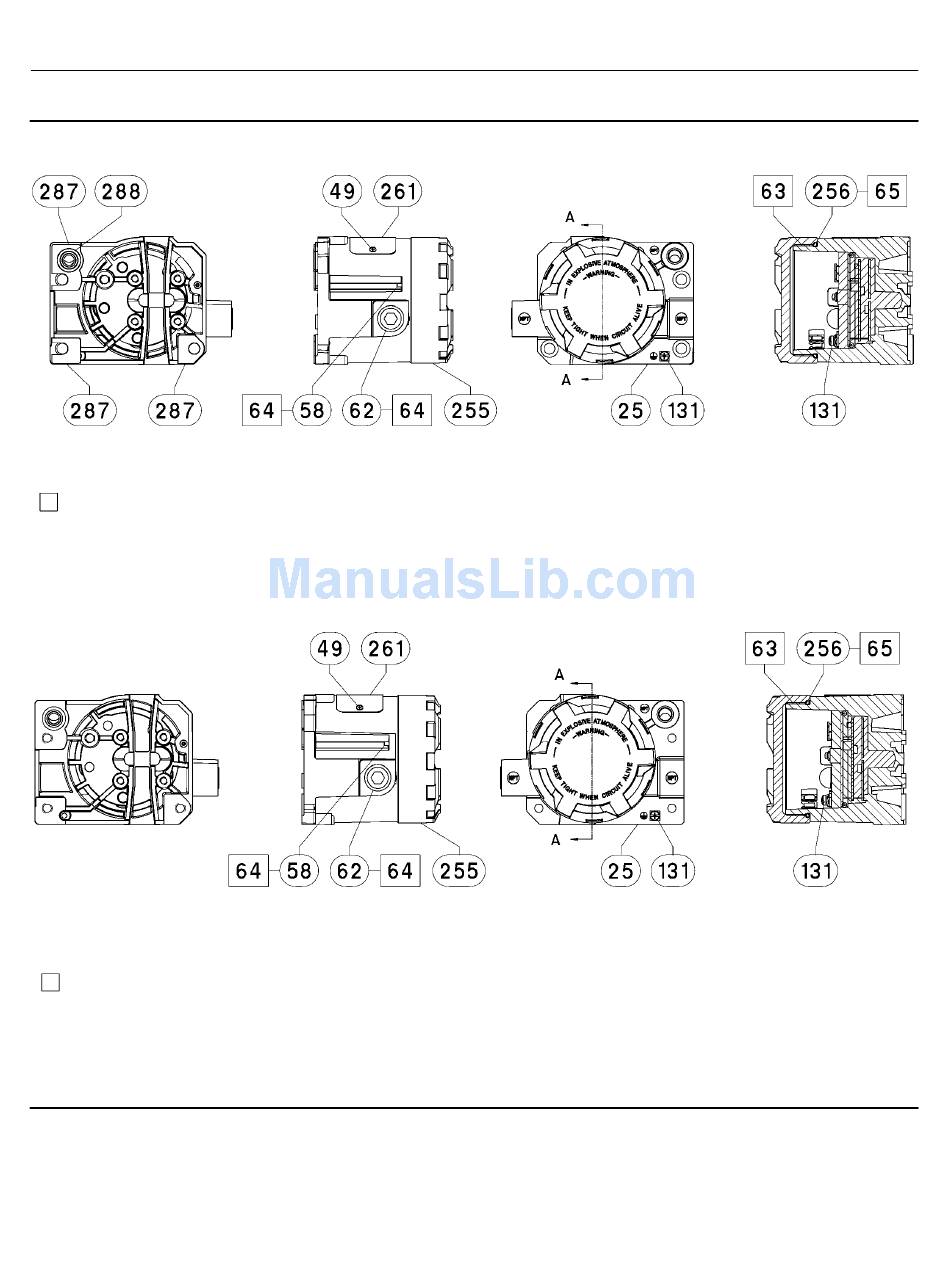

Figure 7‐5. FIELDVUE DVC6215 Remote Feedback Assembly
PARTS NOT SHOWN: 158
APPLY LUBRICANT/SEALANT
GE46670-B
PARTS NOT SHOWN: 158
APPLY LUBRICANT/SEALANT
GE40178-B
68
HOUSING A
(USED FOR GX ACTUATOR)
HOUSING B
(USED FOR ALL ACTUATORS EXCEPT GX)
Instruction Manual
D103563X012
SECTION A-A
SECTION A-A
