Introduction and Specifications
June 2017

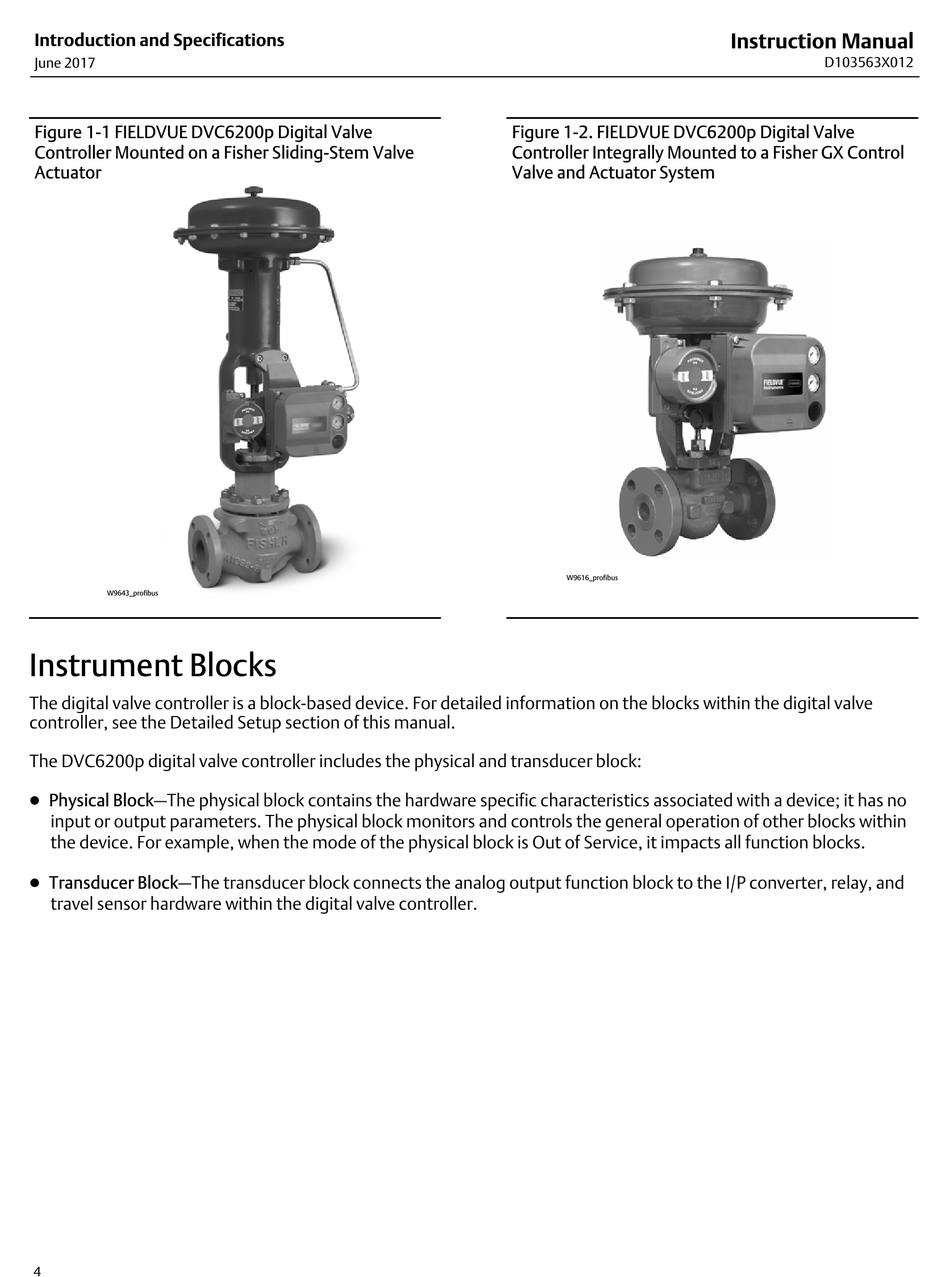

Figure 1‐1 FIELDVUE DVC6200p Digital Valve
Controller Mounted on a Fisher Sliding‐Stem Valve
Actuator
W9643_profibus
Instrument Blocks
The digital valve controller is a block‐based device. For detailed information on the blocks within the digital valve
controller, see the Detailed Setup section of this manual.
The DVC6200p digital valve controller includes the physical and transducer block:
D Physical Block—The physical block contains the hardware specific characteristics associated with a device; it has no
input or output parameters. The physical block monitors and controls the general operation of other blocks within
the device. For example, when the mode of the physical block is Out of Service, it impacts all function blocks.
D Transducer Block—The transducer block connects the analog output function block to the I/P converter, relay, and
travel sensor hardware within the digital valve controller.
4
Figure 1‐2. FIELDVUE DVC6200p Digital Valve
Controller Integrally Mounted to a Fisher GX Control
Valve and Actuator System
W9616_profibus
