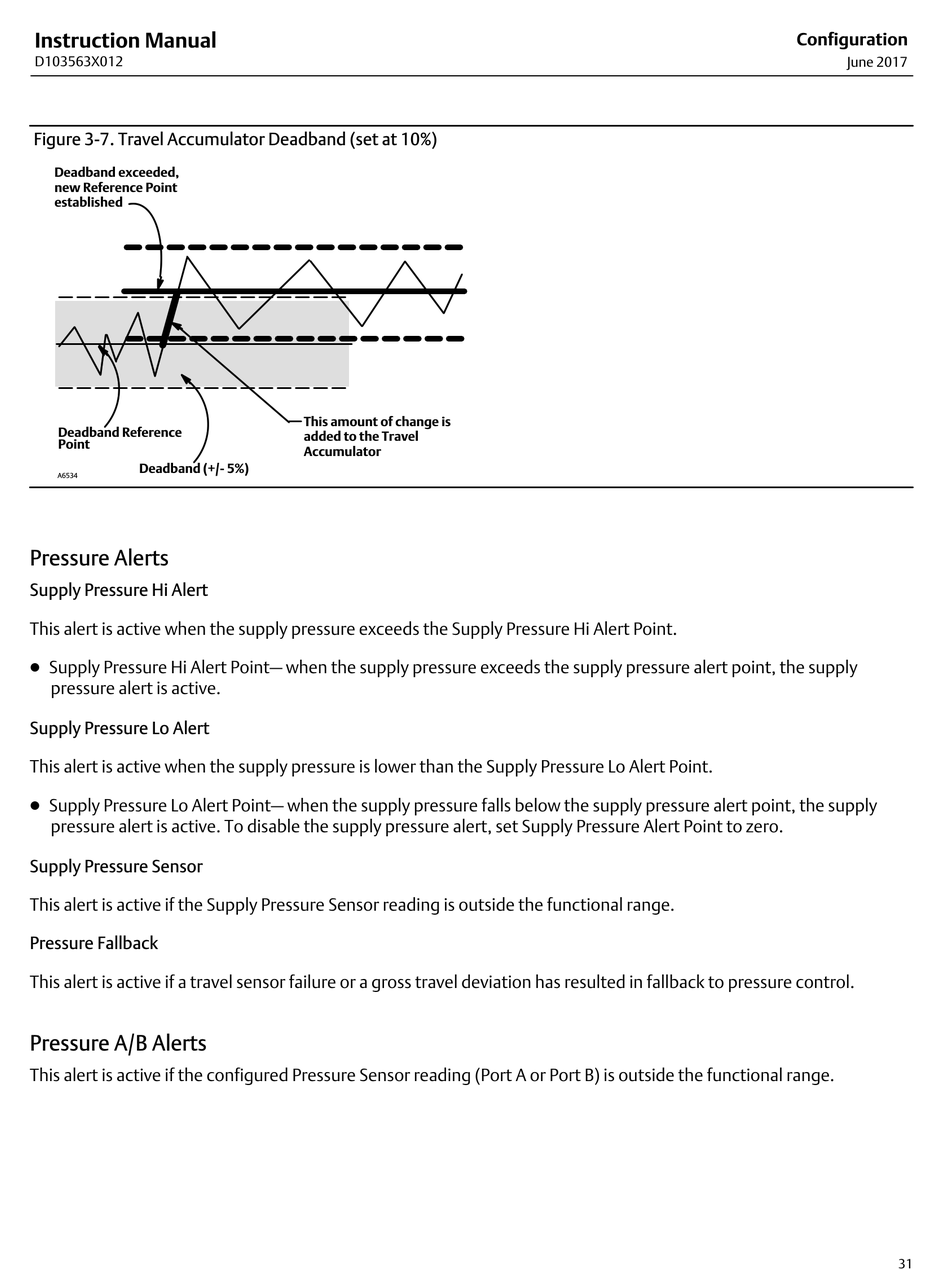

Figure 3‐7. Travel Accumulator Deadband (set at 10%)
Deadband exceeded,
new Reference Point
established
Deadband Reference
Point
Deadband (+/- 5%)
A6534
Pressure Alerts
Supply Pressure Hi Alert
This alert is active when the supply pressure exceeds the Supply Pressure Hi Alert Point.
D Supply Pressure Hi Alert Point— when the supply pressure exceeds the supply pressure alert point, the supply
pressure alert is active.
Supply Pressure Lo Alert
This alert is active when the supply pressure is lower than the Supply Pressure Lo Alert Point.
D Supply Pressure Lo Alert Point— when the supply pressure falls below the supply pressure alert point, the supply
pressure alert is active. To disable the supply pressure alert, set Supply Pressure Alert Point to zero.
Supply Pressure Sensor
This alert is active if the Supply Pressure Sensor reading is outside the functional range.
Pressure Fallback
This alert is active if a travel sensor failure or a gross travel deviation has resulted in fallback to pressure control.
Pressure A/B Alerts
This alert is active if the configured Pressure Sensor reading (Port A or Port B) is outside the functional range.
This amount of change is
added to the Travel
Accumulator
Configuration
