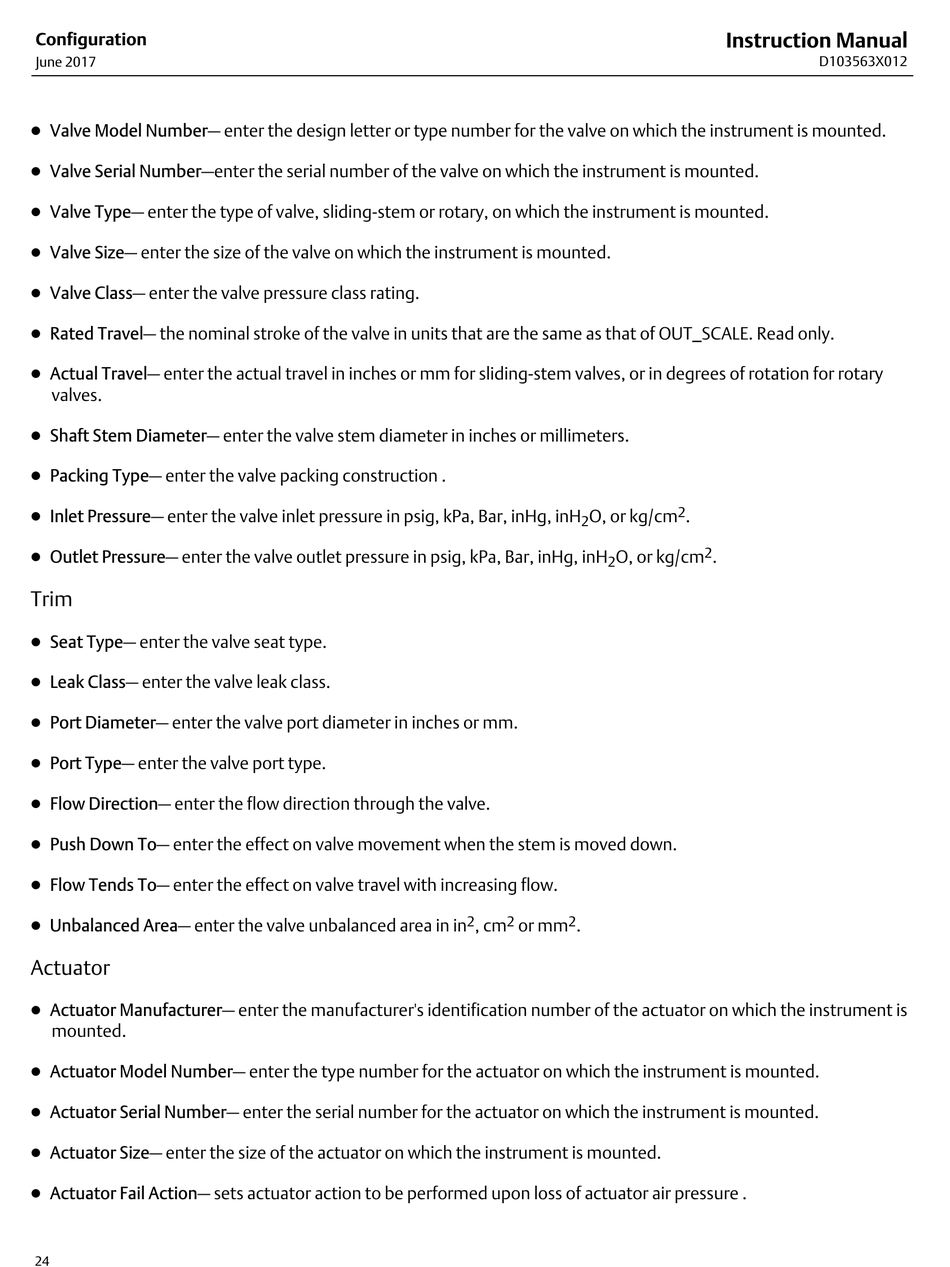

Configuration
June 2017
D Valve Model Number— enter the design letter or type number for the valve on which the instrument is mounted.
D Valve Serial Number—enter the serial number of the valve on which the instrument is mounted.
D Valve Type— enter the type of valve, sliding‐stem or rotary, on which the instrument is mounted.
D Valve Size— enter the size of the valve on which the instrument is mounted.
D Valve Class— enter the valve pressure class rating.
D Rated Travel— the nominal stroke of the valve in units that are the same as that of OUT_SCALE. Read only.
D Actual Travel— enter the actual travel in inches or mm for sliding-stem valves, or in degrees of rotation for rotary
valves.
D Shaft Stem Diameter— enter the valve stem diameter in inches or millimeters.
D Packing Type— enter the valve packing construction .
D Inlet Pressure— enter the valve inlet pressure in psig, kPa, Bar, inHg, inH
D Outlet Pressure— enter the valve outlet pressure in psig, kPa, Bar, inHg, inH
Trim
D Seat Type— enter the valve seat type.
D Leak Class— enter the valve leak class.
D Port Diameter— enter the valve port diameter in inches or mm.
D Port Type— enter the valve port type.
D Flow Direction— enter the flow direction through the valve.
D Push Down To— enter the effect on valve movement when the stem is moved down.
D Flow Tends To— enter the effect on valve travel with increasing flow.
D Unbalanced Area— enter the valve unbalanced area in in
Actuator
D Actuator Manufacturer— enter the manufacturer's identification number of the actuator on which the instrument is
mounted.
D Actuator Model Number— enter the type number for the actuator on which the instrument is mounted.
D Actuator Serial Number— enter the serial number for the actuator on which the instrument is mounted.
D Actuator Size— enter the size of the actuator on which the instrument is mounted.
D Actuator Fail Action— sets actuator action to be performed upon loss of actuator air pressure .
24
O, or kg/cm
2
O, or kg/cm
2
2
2
2
, cm
or mm
.
Instruction Manual
D103563X012
2
.
2
.
