Syslog - Draytek VIGOR3300V+ User Manual

4.1.3 Syslog

The Vigor3300V+ Series supports a Syslog function to keep a record of abnormal conditions.
The router will send Syslog packets to a Syslog server on the remote site. The administrator

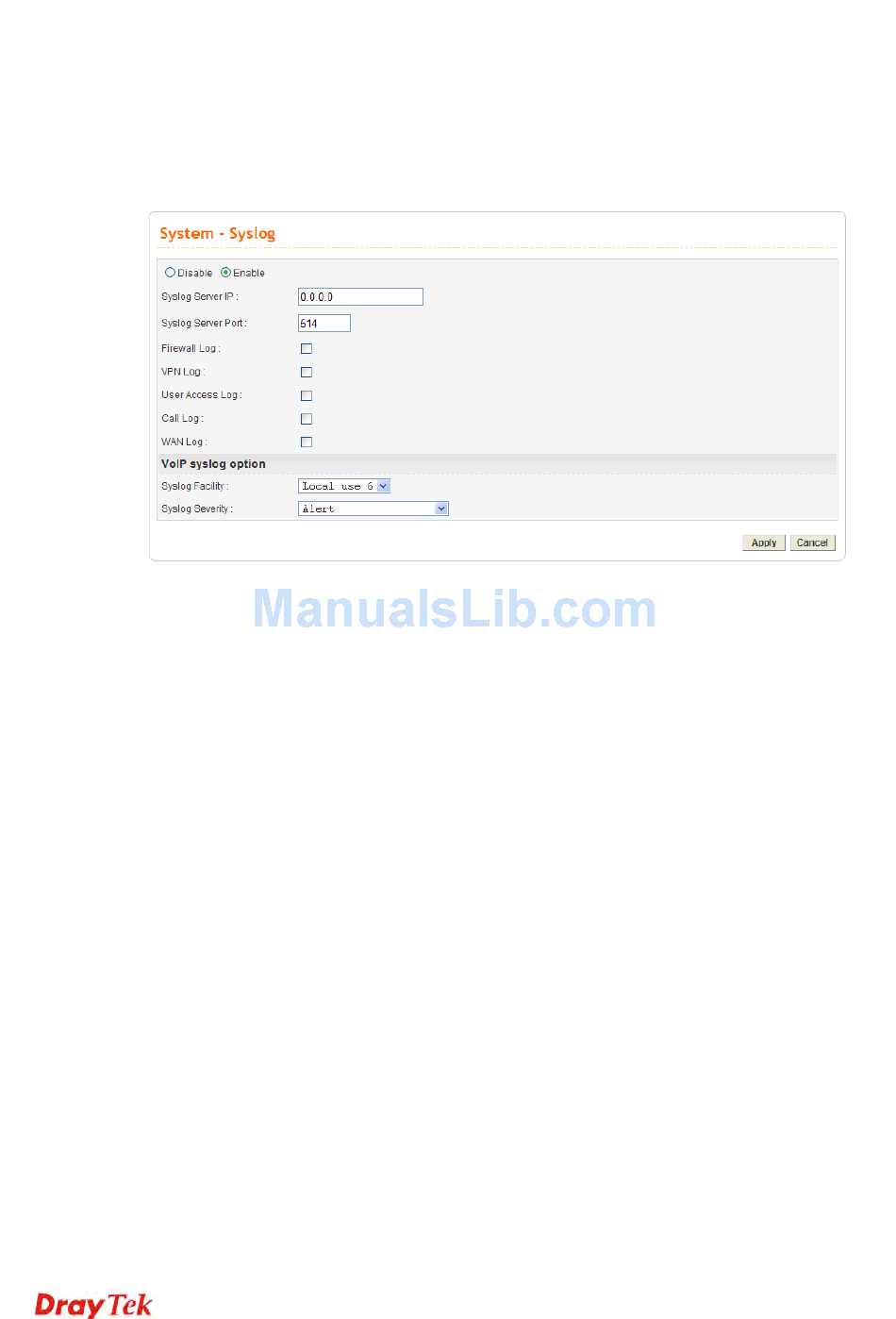

can observe any abnormal events from the router. Open System>> Syslog. The Syslog web
page is shown below:
Disable/Enable
Syslog Server IP
Syslog Server Port
Firewall Log
VPN Log
User Access Log
Call Log
WAN Log
Syslog Facility
Click Enable to activate this function. The router will send system
log message for your reference. If you click Disable, the router
will not send out any message about system log.
The IP address of the Syslog server. If a user assigns an IP address
of "0.0.0.0", the Syslog function will be disabled. Then, the router
will not send Syslog packets to the Syslog server.
Type a port for the Syslog protocol.
Check this box to record the firewall log.
Check this box to record the VPN application log.
Check this box to record the user access log. Such information will
be seen in Syslog server.
Check this box to record the VoIP/ISDN phone log.
Check this box to record the connection status log for WAN
interface.
When Vigor3300V+ runs VoIP program for dialing VoIP phone
calls, information about VoIP starting, restarting, registered,
crashed, and etc., will be created at the same time. Such
information will be useful for the administrator to understand the
running status of VoIP function and will be helpful for the
administrator to solve the problems encountered.
Syslog protocol usually will classify messages into several levels
(facilities) based on the service types. Each facility (Local use0 ~
Local use7) possesses items and services used generally. The
administrator can specify any one of the facilities used for VoIP
function. Such function can assist the administrator to identify
which log containing VoIP information.
90
Vigor3300V+ Series User's Guide
