6.

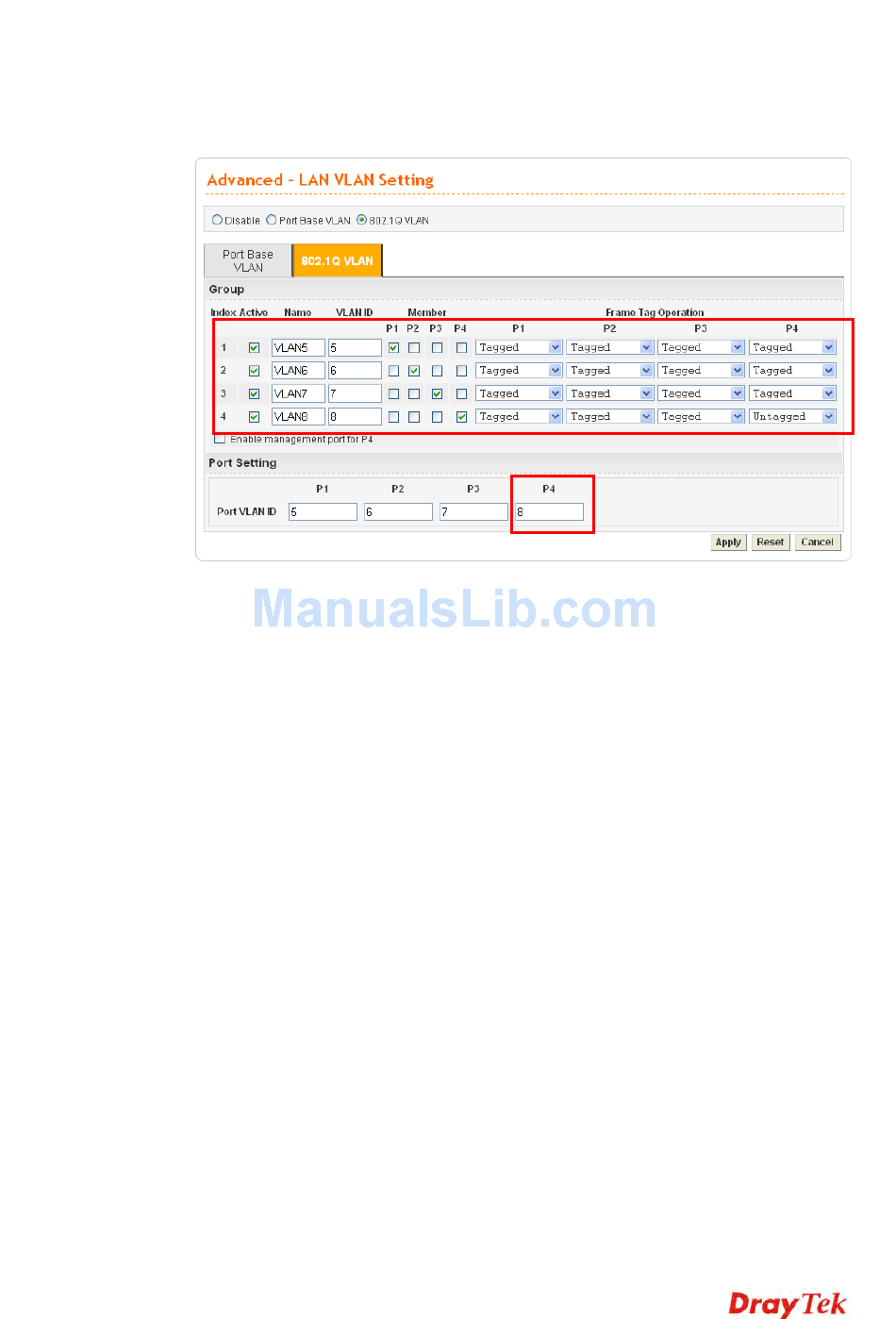

In the VLAN8, type "8" to VLAN ID. In the Member field, choose p4. Then choose the
"Untagged" for Frame Tag Operation in p4. We should configure the PVID to "8",
because the device does not support 802.1Q VLAN.
7.
After applying the settings, the web page will be redirected to "reboot" web page. User
can ignore it and continue to configure the Network setting. After finishing Network
setting, you can execute the reboot procedure.
8.
After rebooting, the tagged ports will communicate with 802.1Q tagged devices only.
9.
The network configuration is the same with A.2.1. Please refer to A.2.1 part.
Vigor3300V+ Series User's Guide
37
