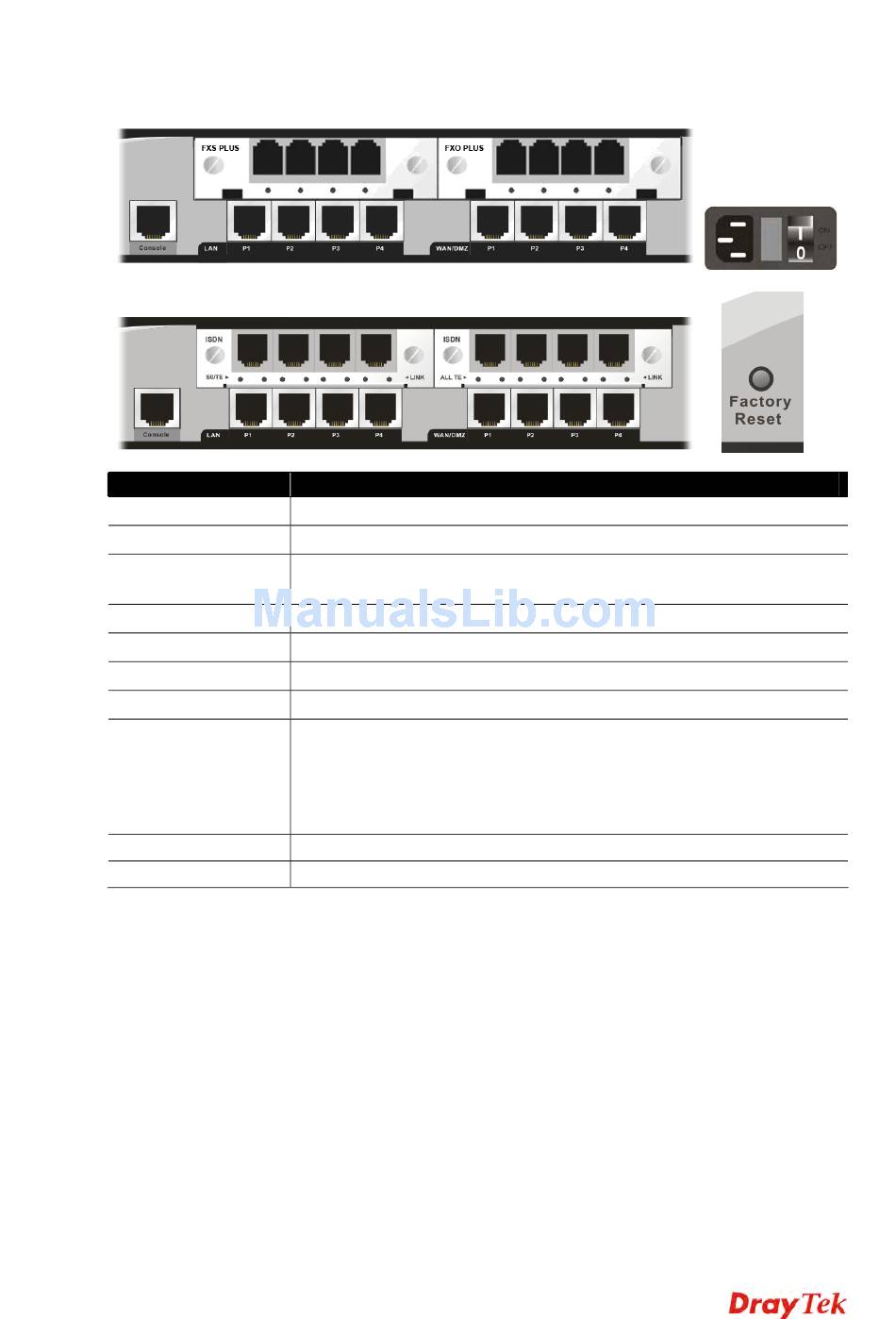

Interface
Console
LAN (P1 ~ P4)
WAN/DMZ (P1 ~
P4)
FXS
FXO
ISDN S0/TE
ISDN ALL TE
Factory Reset button
PWR
ON/OFF
Vigor3300V+ Series User's Guide
o
o
n
n
f
f
o
o
r
r
C
C
o
o
n
n
n
n
e
e
c
c
t
t
o
o
r
r
s
s
Description
Provided for technician use.
Connecter for local networked devices.
Connecter for remote networked devices.
Connecter for telephone set.
Connecter for FXS interface of PABX.
Connecter for ISDN phone/ISDN line.
Connecter for ISDN line.
Used to restore the default settings. Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the
button. Then the router will restart with the factory default
configuration.
Connecter for a power cord.
Power switch.
