Private IP
Private Port Start
Private Port End
Use IP Alias
WAN Interface
IP Alias
Edit
Delete/Delete All

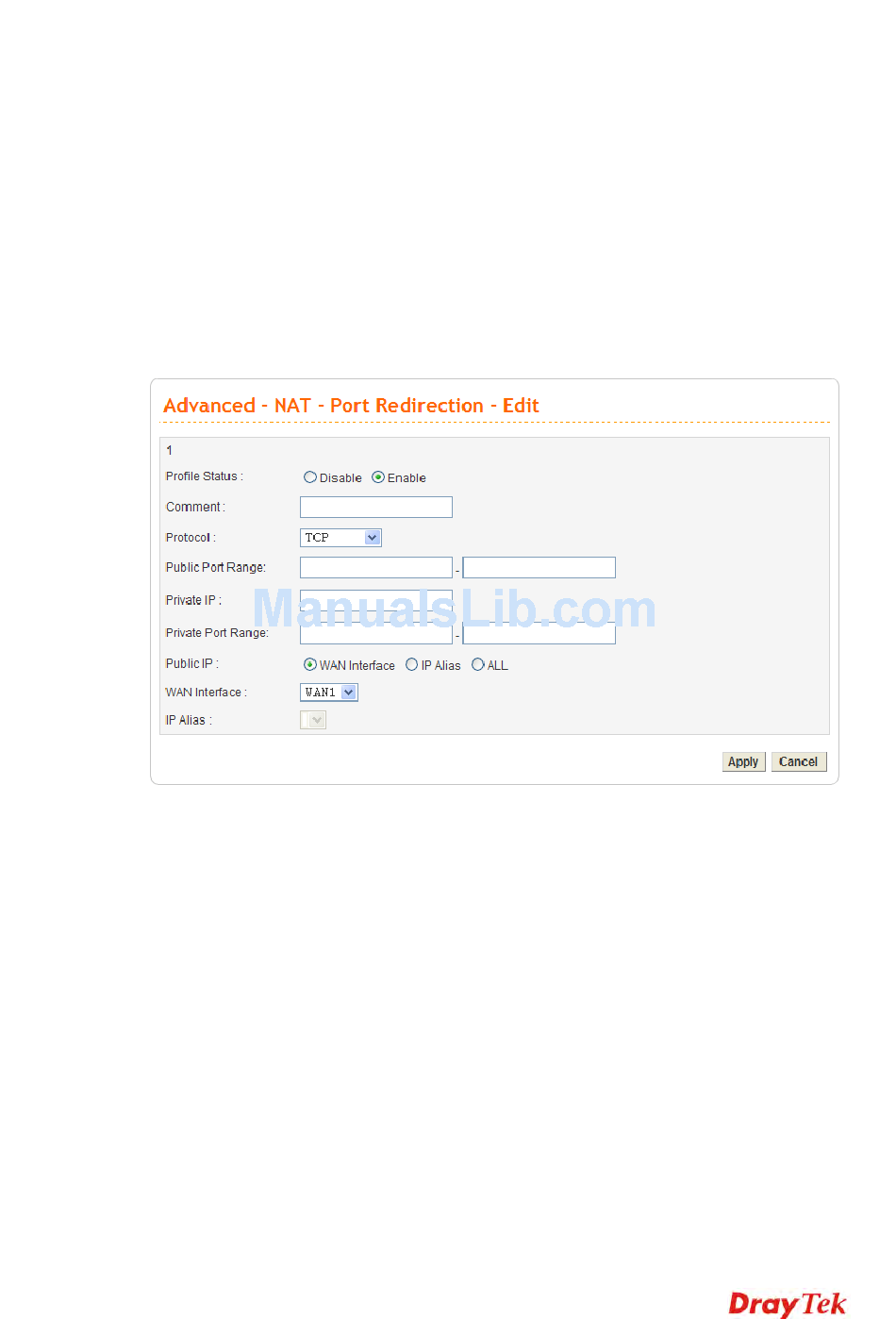

To edit an item, click the radio button of the item that you want to modify. Then click Edit
on the bottom of the page to add a new rule entry or modify an existed rule entry.
Profile Status
Comment
Protocol
Public Port Range
Private IP
Private Port Range
Use IP Alias
Public IP
Vigor3300V+ Series User's Guide
Display the private IP used for this entry.
Display the start point in the range of private port.
Display the end point in the range of private port.
Display the using status for WAN IP alias.
Display the WAN interface of this profile.
Display the selected WAN IP address.
Allow users to edit the selected port redirection settings.
Removes one/all the selected port redirection settings.
Enable or disable this function.
Assign a name for this entry. The maximum is 20 characters.
Assign the transport layer protocol with TCP or UDP.
Assign a port range from starting to end public port number.
The port range is from 1 to 65535.
Assign a local IP address to be transferred into.
Assign a port range from starting to end private port number.
"Disable" option uses IP address of WAN interface, "Enable"
option uses IP alias addresses.
Determine which channel will be used to perform port
redirection (port forwarding)
Wan interface: port redirection will be done via WAN IP.
IP Alias: port redirection will be done via WAN IP alias.
ALL: port redirection will be done via WAN IP or WAN IP
alias.
125
