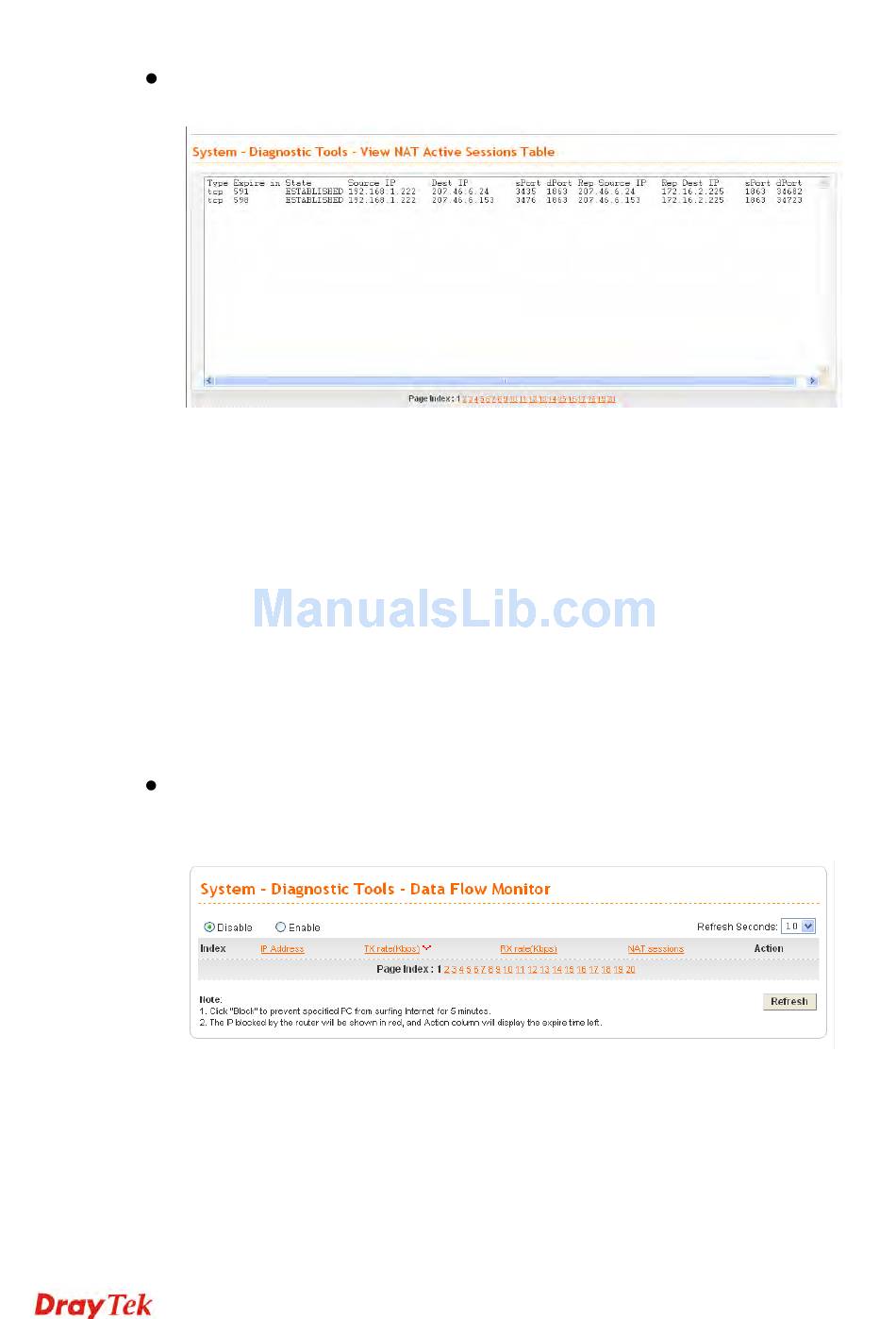

Select View NAT Active Sessions Table to get the following page. This table can
display about 30000 sessions with 20 pages.
Type
Expire in
State
Source IP
Dest IP
sPort
dPort
Rep Source IP
Rep Dest IP
sPort
dPort
Select Data Flow Monitor to get the following page. This page displays the running
procedure for the IP address monitored and refreshes the data in an interval of several
seconds.
Disable/Enable
Index
IP Address
TX rate (kbps)
RX rate (kbps)
Display the protocol used for the active session.
Display the remaining time (second) of this session.
Display the condition of this session.
Display the source IP address of the packet transmitted.
Display the destination IP address of the packet transmitted.
Display the source port of the packet transmitted.
Display the destination port of the packet transmitted.
Display the source IP address of the packet replied.
Display the destination IP address of the packet replied.
Display the source port of the packet replied.
Display the destination port of the packet replied.
Click Enable to invoke this function.
Display the number of the data flow.
Display the IP address of the monitored device.
Display the transmission speed of the monitored device.
Display the receiving speed of the monitored device.
