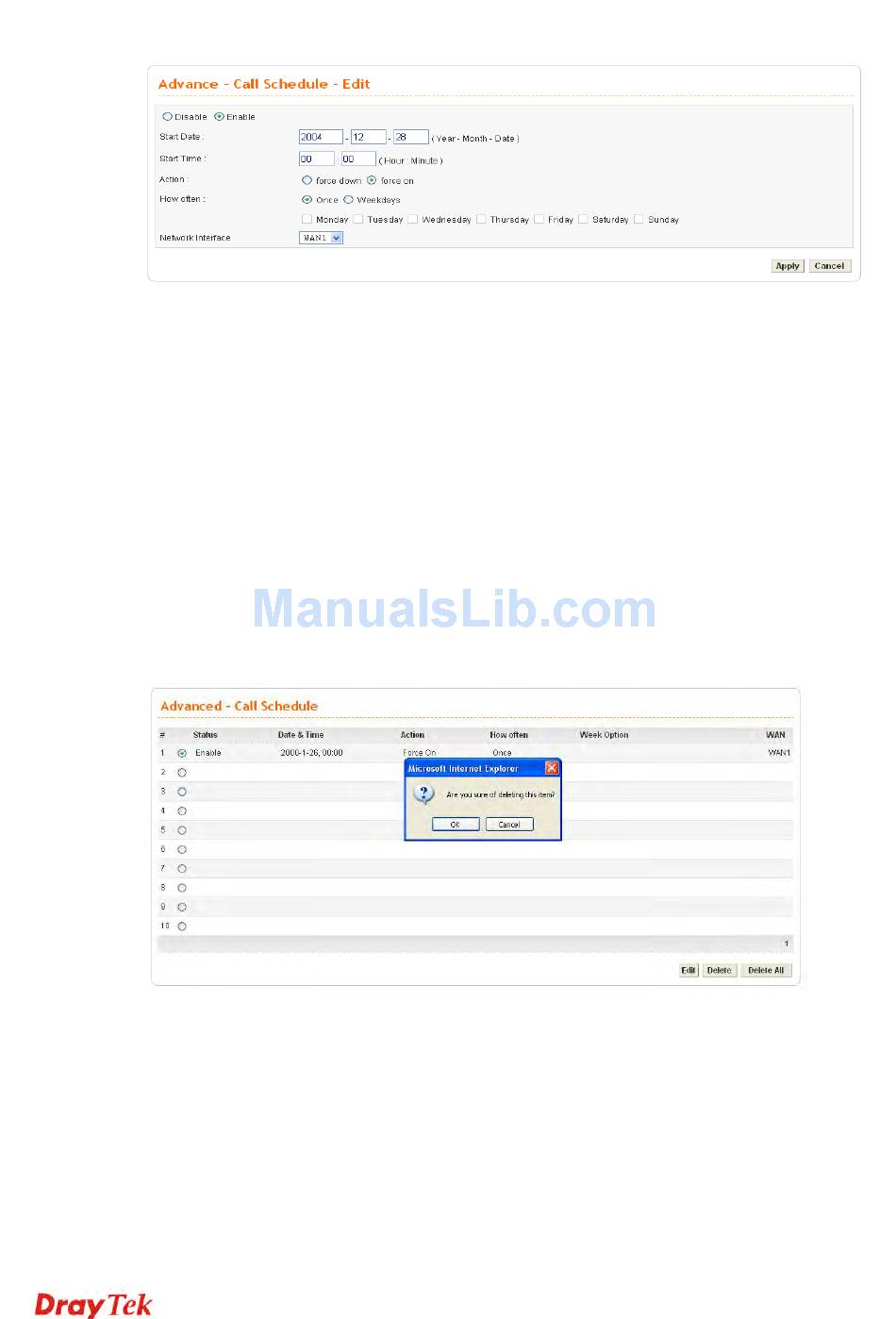

Enable/Disable
Start Date
Start Time
Action
How often
Network Interface
Click Apply to finish this setting.
D
e
l
e
t
e
C
a
l
D
e
l
e
t
e
C
a
l
To delete an item, click the radio button of the item that you want to delete. Then click
Delete on the bottom of the page to remove the entry.
Also, users can click Delete All to remove all entries in the table.
4.3.7 WAN Port Mirroring Setup
Vigor3300V+ supports port mirroring function in WAN interfaces. Generally speaking, this
function copies traffic from one or more specific ports to a target port. This mechanism helps
manager track the network errors or abnormal packets transmission without interrupting the
flow of data access the network. By the way, user can apply this function to monitor all
traffics which user needs to check.
There are some advantages supported in this feature. Firstly, it is more economical without
other detecting equipments to be set up. Secondly, it may be able to view traffic on one or
Click Disable to disable this function. Click Enable to
activate this function.
Assign a date for starting this profile.
Assign a time for starting this profile.
Force down means to inactivate the Network Interface. Force
up means to activate the Network Interface.
Once means only for one time. Weekdays means that user
can select some weekdays to apply.
Select one specific WAN interface to be applied.
l
S
c
h
e
d
u
l
e
l
S
c
h
e
d
u
l
e
134
