Start IP
End IP
TX Limit
RX Limit
Edit
Delete/Delete All

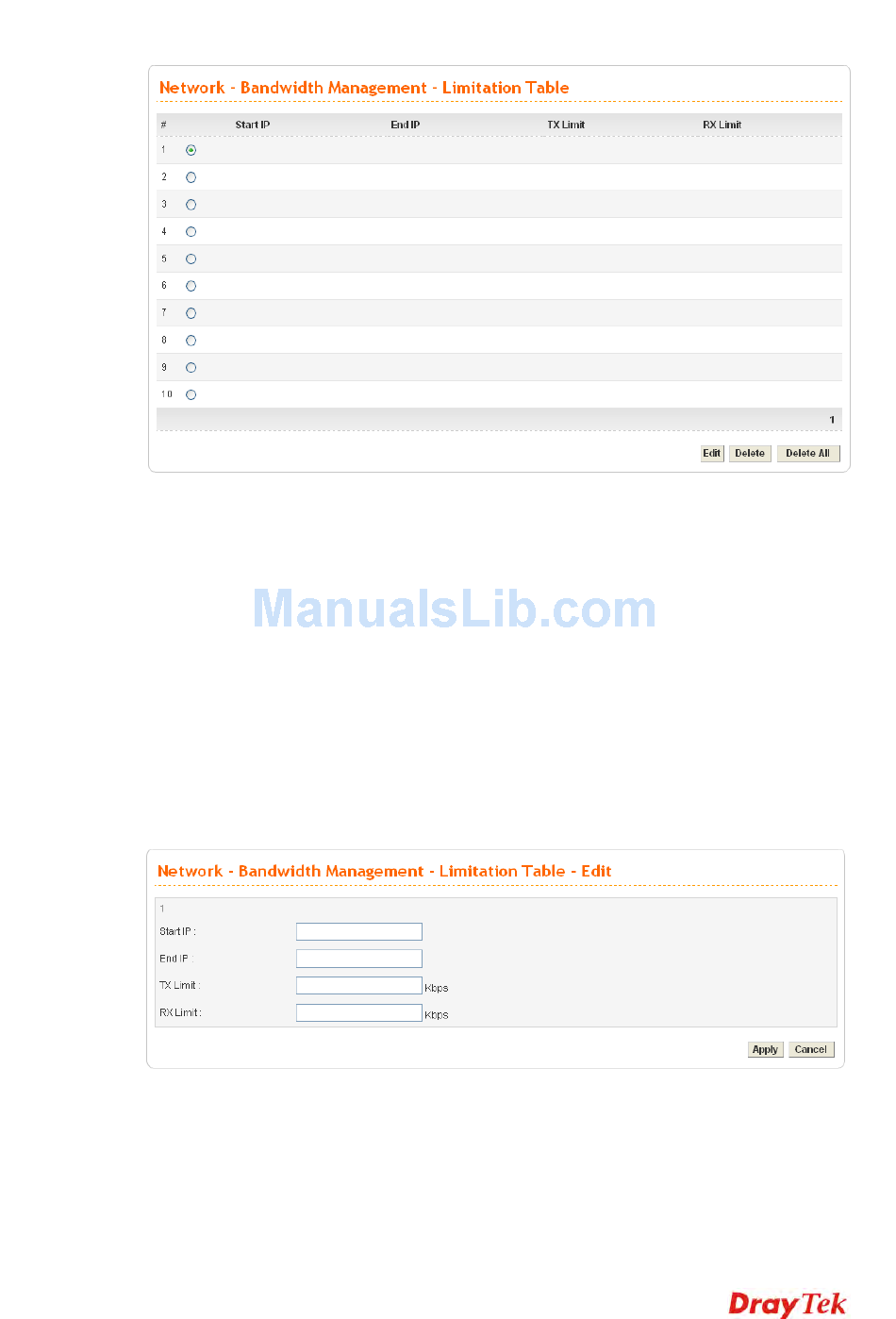

To edit an entry, select it by clicking the radio button (from 1 to 10). Then click the Edit
button on the bottom to bring up the following Web page.
Start IP/End IP
TX Limit
Vigor3300V+ Series User's Guide
Display the start IP address of bandwidth.
Display the End IP address of bandwidth.
Display the size limit for the transmitted packets.
Display the size limit for the received packets.
Click this button to open the edit page for adjusting the
settings.
Click this button to delete the selected setting or all settings. A
confirmation dialog box will appear. Click OK to delete this
entry from the Load Balance Policy table. In addition, click
Delete All in the Load Balance Policy page to delete all of 10
entries on this page.
Assign the IP range for the bandwidth management.
Define the limitation for the speed of the upstream. If you do
not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
119
