1.3.3 Rack-Mounted Installation

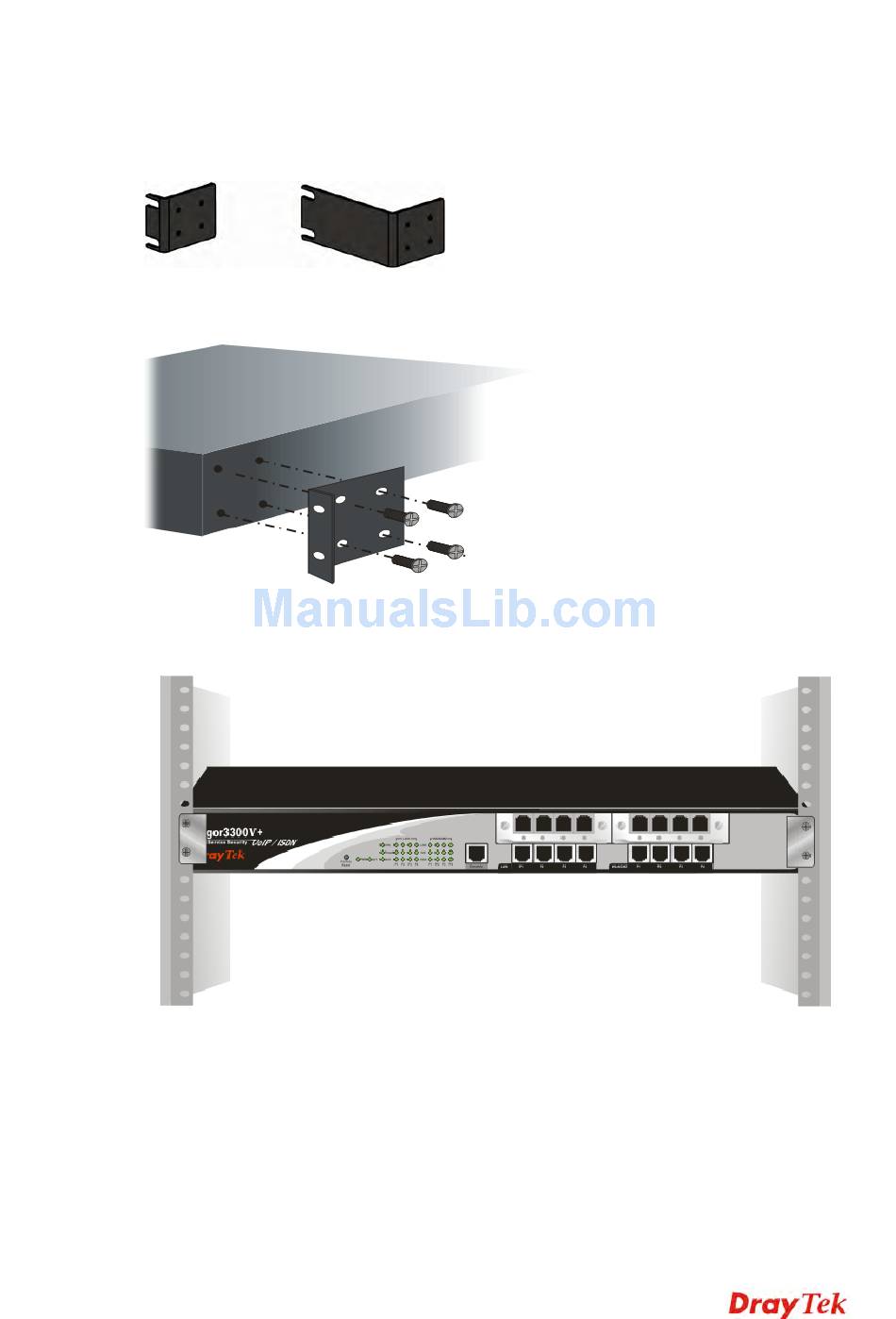

The Vigor3300V+ Series can be mounted on a rack by using standard brackets in a 19-inch
rack or optional larger brackets on 23-inch rack (not included). The bracket for 19- and
23-inch racks are shown below.
Attach the brackets to the chassis of a 19- or a 23-inch rack. The second bracket attaches the
other side of the chassis as above procedure.
After the bracket installation, the Vigor3300 Series chassis can be installed in a rack by using
four screws for each side of the rack.
D
e
s
k
t
o
D
e
s
k
t
o
Rubber pads are included with the Vigor3300V+ Series. These rubber pads improve the air
circulation and decrease unnecessary rubbing on the desktop.
Vigor3300V+ Series User's Guide
p
T
y
p
e
I
n
s
t
a
l
l
a
t
i
o
n
p
T
y
p
e
I
n
s
t
a
l
l
a
t
i
o
n
9
