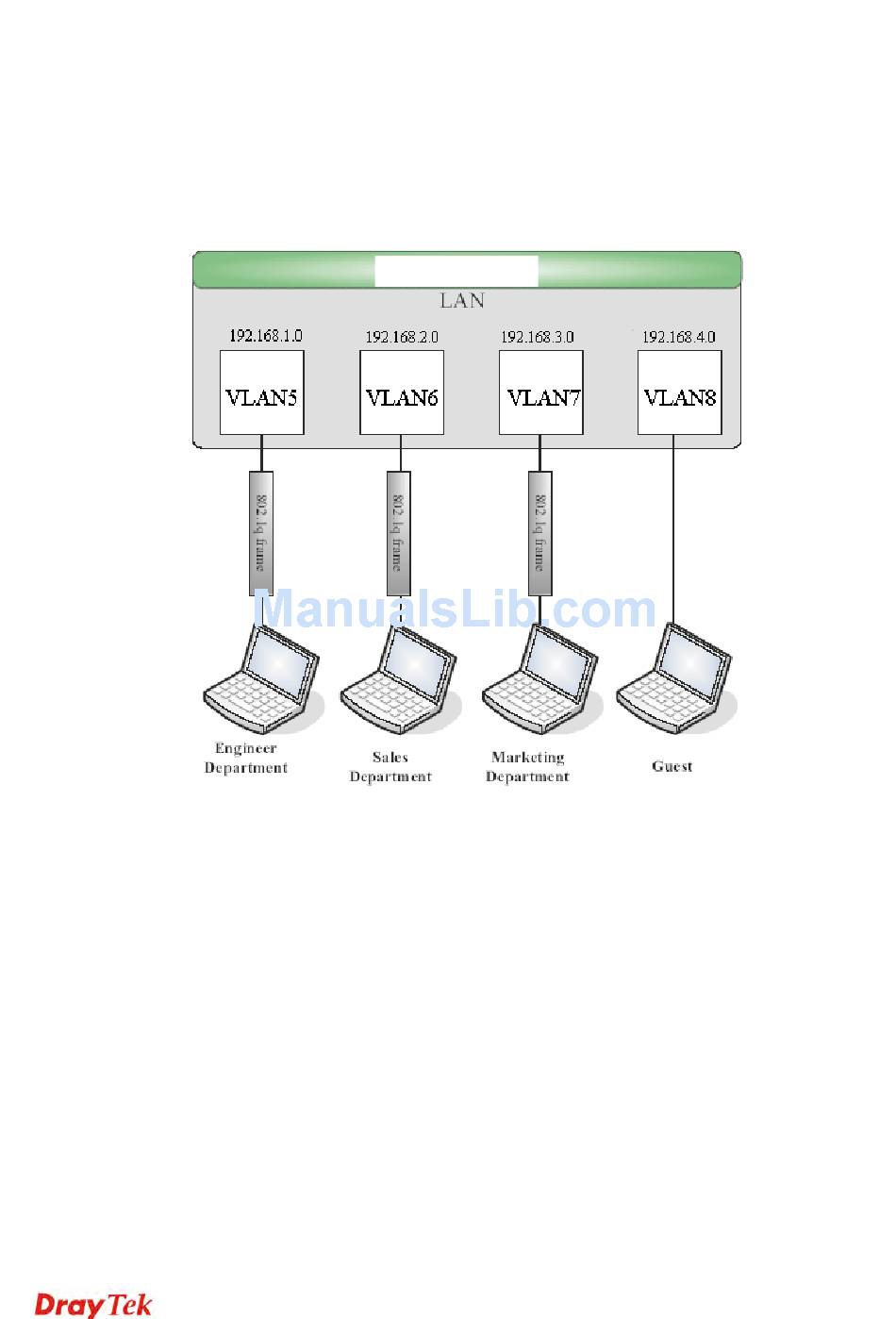

3.1.6 Example for A Company and Guest
A company wants to separate the Engineer Department, Sales Department, Marketing
Department and guest to limit their communication with any department to ensure the
security. In this case, we can define four VLANs that are VLAN5, VLAN6, VLAN7 and
VLAN8. The subnet of VLAN5 is 192.168.1.0; the subnet of VLAN6 is 192.168.2.0; the
subnet of VLAN7 is 192.168.3.0; and the subnet of VLAN8 is 192.168.4.0. However, the
notebook of guest does not support 802.1Q.
P
r
o
c
e
d
u
r
e
P
r
o
c
e
d
u
r
e
1.
Refer to A.1 to block LAN-to-LAN communication.
2.
Create VLAN5, VLAN6, VLAN7 and VLAN8 Groups.
3.
In the VLAN5, type "5" to VLAN ID. In the Member field, choose p1. Then choose the
"Tagged"for Frame Tag Operation in p1. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from the PC of Engineer Department.
4.
In the VLAN6, type "6" to VLAN ID. In the Member field, choose p2. Then choose the
"Tagged" for Frame Tag Operation in p2. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from Engineer Department.
5.
In the VLAN7, type "7" to VLAN ID. In the Member field, choose p3. Then choose the
"Tagged" for Frame Tag Operation in p3. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from the PC of Engineer Department.
Vigor3300V+
:
:
36
Vigor3300V+ Series User's Guide
