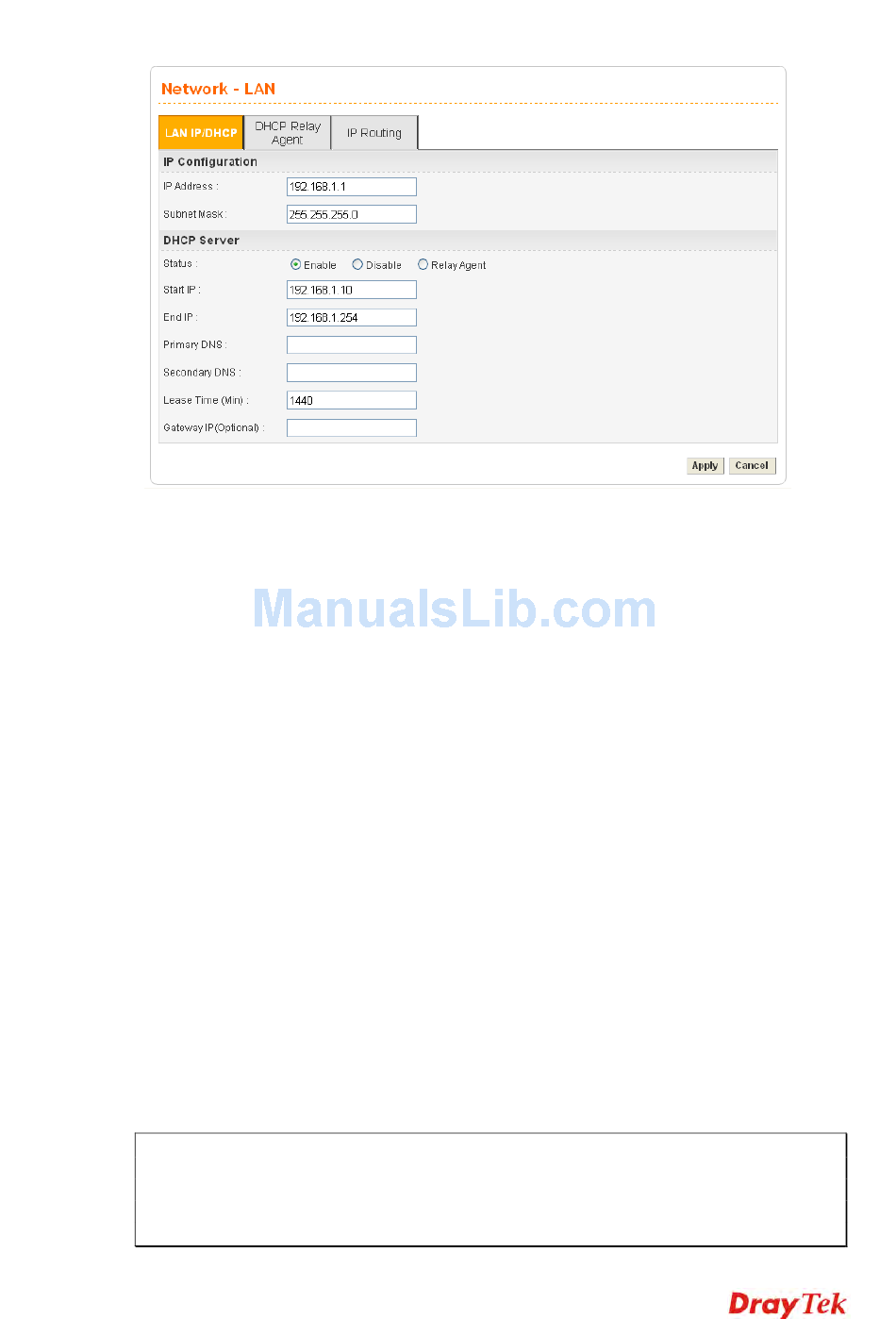

In the Vigor3300V+ router, there are some IP address settings for the LAN interface. The IP
address/subnet mask is for private users or NAT users. The IP address of the default gateway
on other local PCs should be set as the Vigor3300 Series' server IP address. When the DSL
connection between the DSL and the ISP has been established, each local PC can directly
route to the Internet. The IP address/subnet mask can also be used to connect to other private
users (PCs). On this page you will see the private IP address defined in RFC-1918. Usually
we use the 192.168.1.0/24 subnet for the route.
IP Address
Subnet Mask
Status
Start IP
End IP
Primary DNS
Secondary DNS
Lease Time (Min)
Gateway IP (Optional)
Click Apply to reboot the system and apply the settings.
Note: If both the Primary and Secondary DNS fields are left empty, the router will assign
its own IP Address to local users as a DNS proxy server and maintain a DNS cache. If the
IP address of a domain name is already in the DNS cache, the router will resolve the
domain name immediately. Otherwise, the router forwards the DNS query packet to the
external DNS server by establishing a WAN (e.g. DSL/Cable) connection.
Vigor3300V+ Series User's Guide
N
I
P
/
D
H
C
P
N
I
P
/
D
H
C
P
Type the IP address for LAN/DHCP.
Type the subnet mask for the LAN IP/DHCP.
Click Enable the DHCP server; click Disable to close DHCP
server; click Relay Agent to close DHCP sever and do the job
of DHCP server. Corresponding settings for Relay Agent can
be configured in the page of DHCP Relay Agent.
Set the starting IP address of the IP address pool for DHCP
server.
Set the ending IP address of the IP address pool for DHCP
server.
Set the private IP address of the primary DNS.
Set the private IP address of the secondary DNS.
Set a lease time for the DHCP server. The time unit is minute.
Set a gateway IP address for the DHCP server.
113
