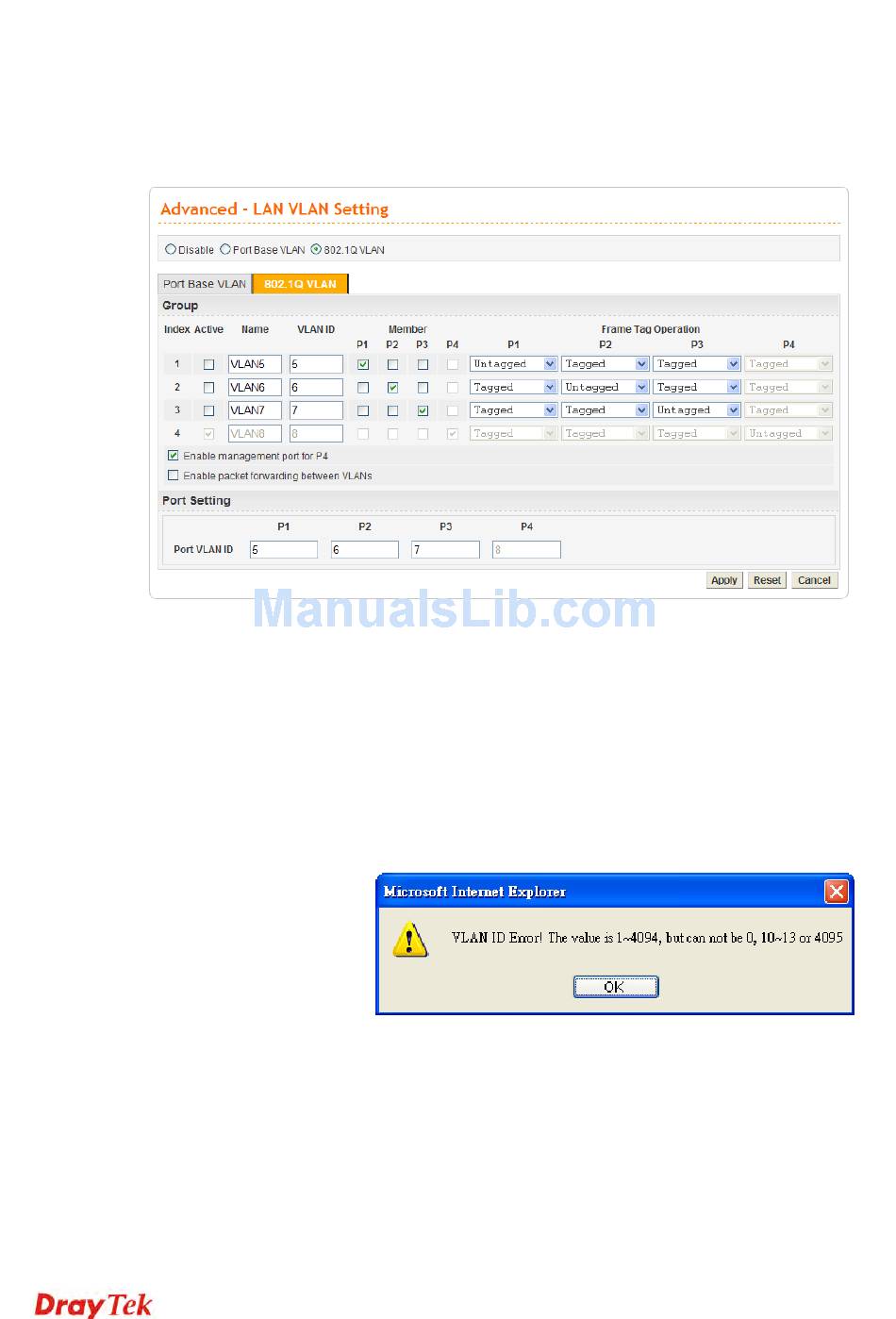

Another way to set VLAN is based on 802.1Q. Please choose 802.1Q VLAN to open the
following page. This page is available only for the PCs with certain network cards which
support 802.1Q VLAN feature. It is useless for general network cards.
Active
Name
VLAN ID
Member
Frame Tag Operation
Check this box to activate the settings of this entry. If you
check the Management Port box below, Index 4 will be
unchangeable and locked. And, you have to set Port VLAN ID
for P4 previously before you check Management Port.
Specify the name for the four groups of VLAN.
Type a number used for identification on VLAN for your
computer. Later, you have to type the same ID number for
each PC which wants to be grouped within the same VLAN
group. In addition, if you type wrong ID number, the
following message will appear to warn you. Please type
correct number.
By the way, if you don't know how to configure a VLAN
setting on your computer, please refer to How to Check/Edit
VLAN ID on Your PC below for more detailed information.
To make the hosts (with the same VLAN ID) of different
ports communicating with each other, please check the port
box (P1 to P4) according to your necessity.
Basically, the default settings for tagged or untagged VLAN
will be shown automatically when you type VLAN ID/Name
and check the Active box. By the way, you can modify the tag
138
Vigor3300V+ Series User's Guide
