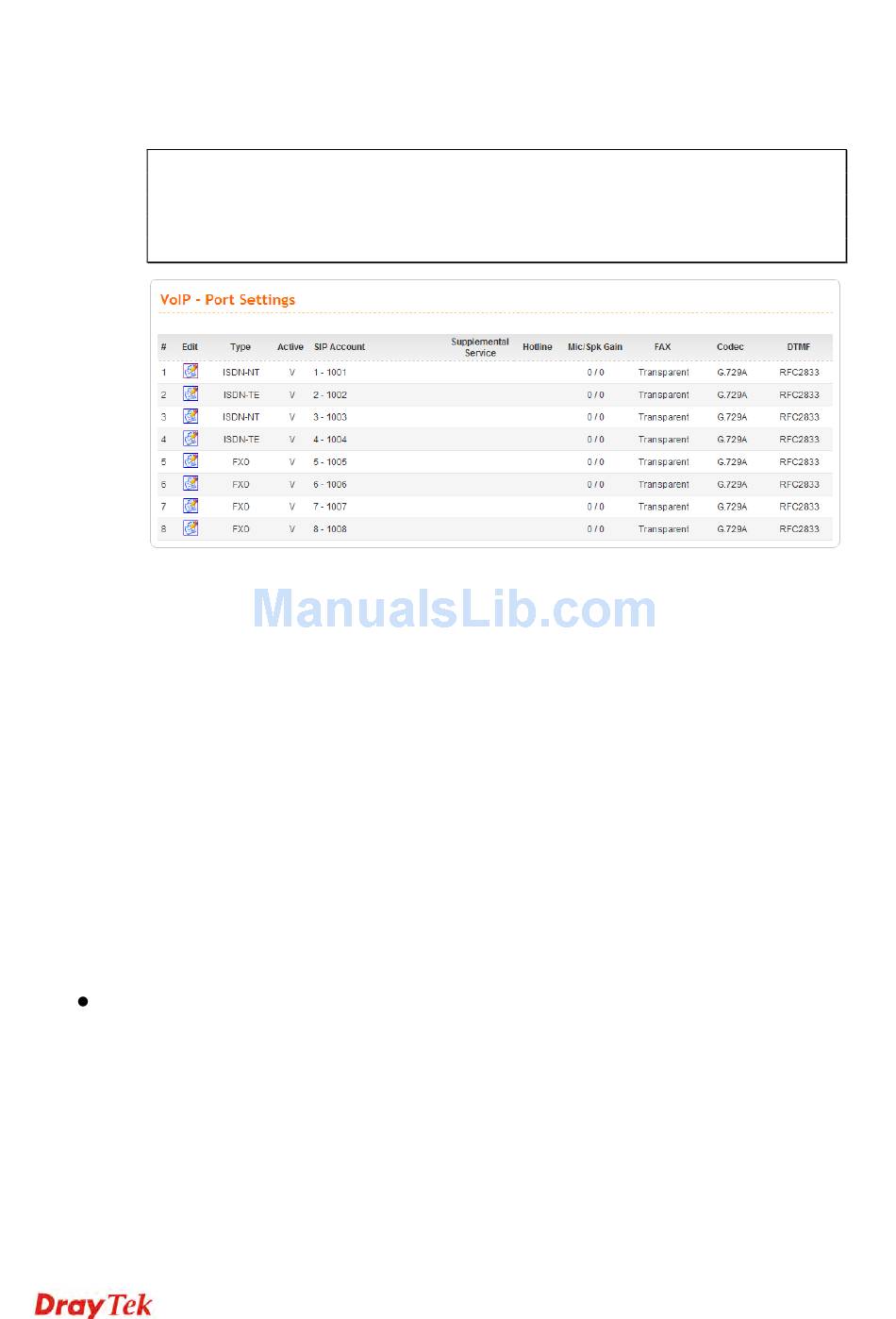

4.7.2 Port Settings

Port Settings page allows users to set phone number for different call receivers.
Note: Users might have ISDN module or VoIP Module inserted into Vigor router.
Different modules will have different web page configurations. Therefore this page will
change slightly based on the modules installed on your router. If there is no ISDN or
VoIP module installed, it is not necessary for you to access into this page for
configuration.
Edit
Type
Active
SIP Account
Supplemental Service
Hotline
Mic/Spk Gain
FAX
Codec
DTMG
When you click Edit, the following page will appear for you to configure. (Such page is
available for ISDN module)
Click this button to access into the Edit page for each phone
number.
Display the type of the VoIP connection, e.g. ISDN-NT,
ISDN-TE, FXO and FXS. It depends on the modules you have
installed to the router.
Display the status (active or not) for the VoIP connection.
Display the SIP account index number and username.
Display the supplemental service mode for the VoIP
connection.
Display the hotline is established or not.
Display the microphone gain value and speaker gain value.
Display the FAX mode setting (e.g., Transparent) for the VoIP
connection.
Display the codec settings for the VoIP connection.
Display the DTMF mode setting for the VoIP connection.
