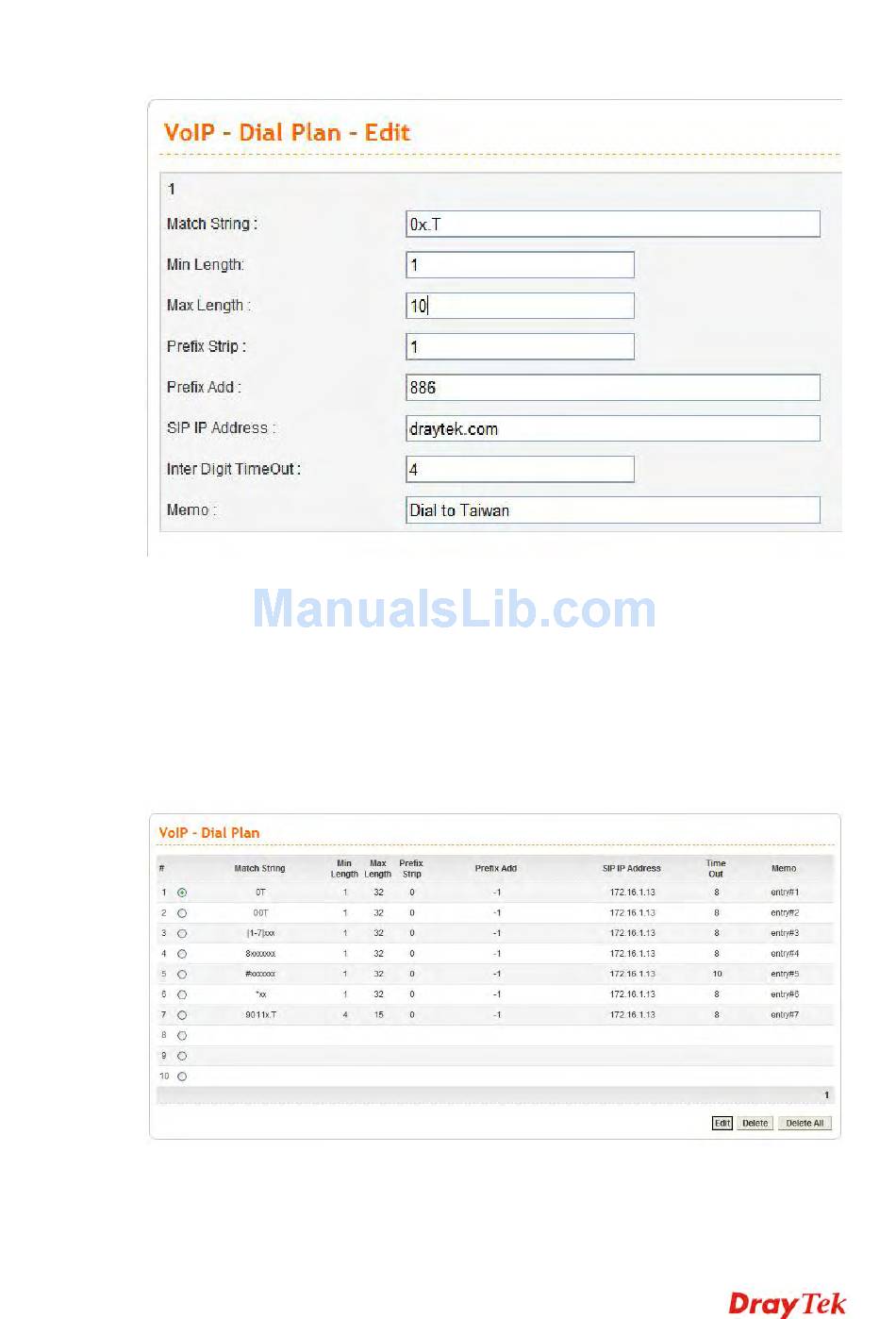

Below shows an example of dial plan settings:
When the caller dials "02111199999", Vigor3300V+ find the first digit is "0". This number
is matched the setting in Match String: 0x.T. Next, Vigor3300V+ will delete the first digit
number "0" and add "886" instead. At last, the new number
"8862111199999@draytek.com" will be dialed out. From the above figure, we know the
Max Length is set with "10". Therefore, if the caller dials "035972727" (only 9 digits), he
must dial "#" immediately or wait for 4 seconds to send the call out. Vigor3300V+ will
change the number with "88635972727", yet the caller still dials "035972727". In addition,
when the caller dials "035" and is in a daze more than 4 seconds, the phone number will be
called out and be changed with "88635@draytek.com" directly by Vigor3300V+.
Example:
Vigor3300V+ Series User's Guide
199
