G
r
o
u
p
G
r
o
u
p

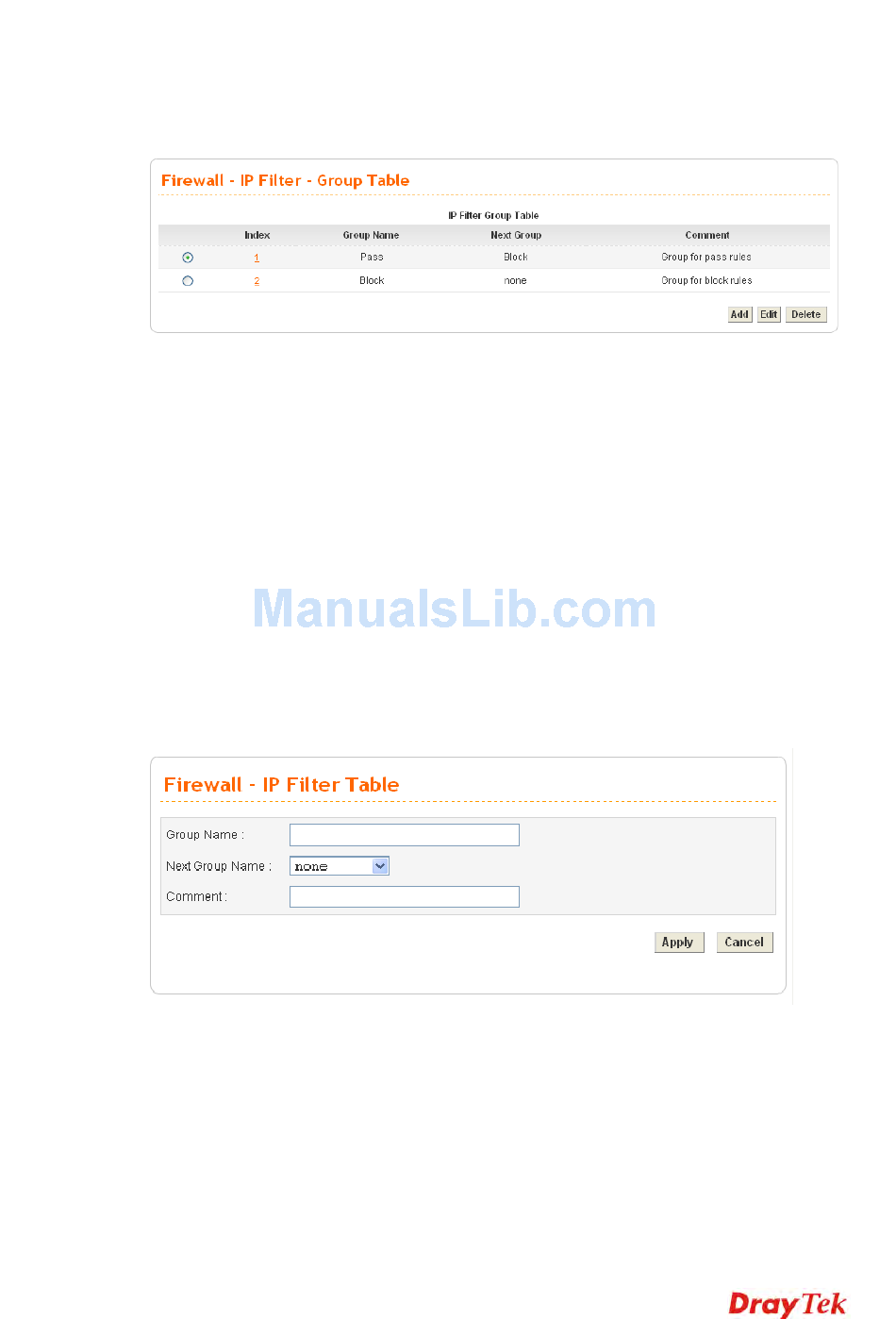

Group Table allows you to set definitions for different groups of the filters that will be
applied for the function of IP filter.
Index
Group Name
Next Group
Comment
Add
Edit
Delete
To add a new group, please click Add on the Group Table page to access into the following
page. In this page, you can type in new group name and decide the next group name. Also,
you can type in your comment for such group. After you click Apply, the new group will be
added and you will see it from the drop down menu of Start Filter Group.
Group Name
Next Group Name
Comment
To edit a select group, please click the number link to open the following page. You can
change the next group name and modify the comment for your necessity. When you finish
the modification, simply click Apply.
Vigor3300V+ Series User's Guide
T
a
b
l
e
T
a
b
l
e
Allow you to change current IP filter table or add new rule for
current group. Click the number link to get into the IP filter
table page for editing.
Display the group name.
Display next group name.
Display the notice for current group.
Allow you to add a new IP filter table.
Allow you to edit selected IP filter table.
Allow you to delete selected IP filter table configuration. If
this entry is assigned as the started filter group already, it
cannot be deleted.
Type in the name of the group.
Select next group to filter packets.
Type in your comment or description for the group.
143
