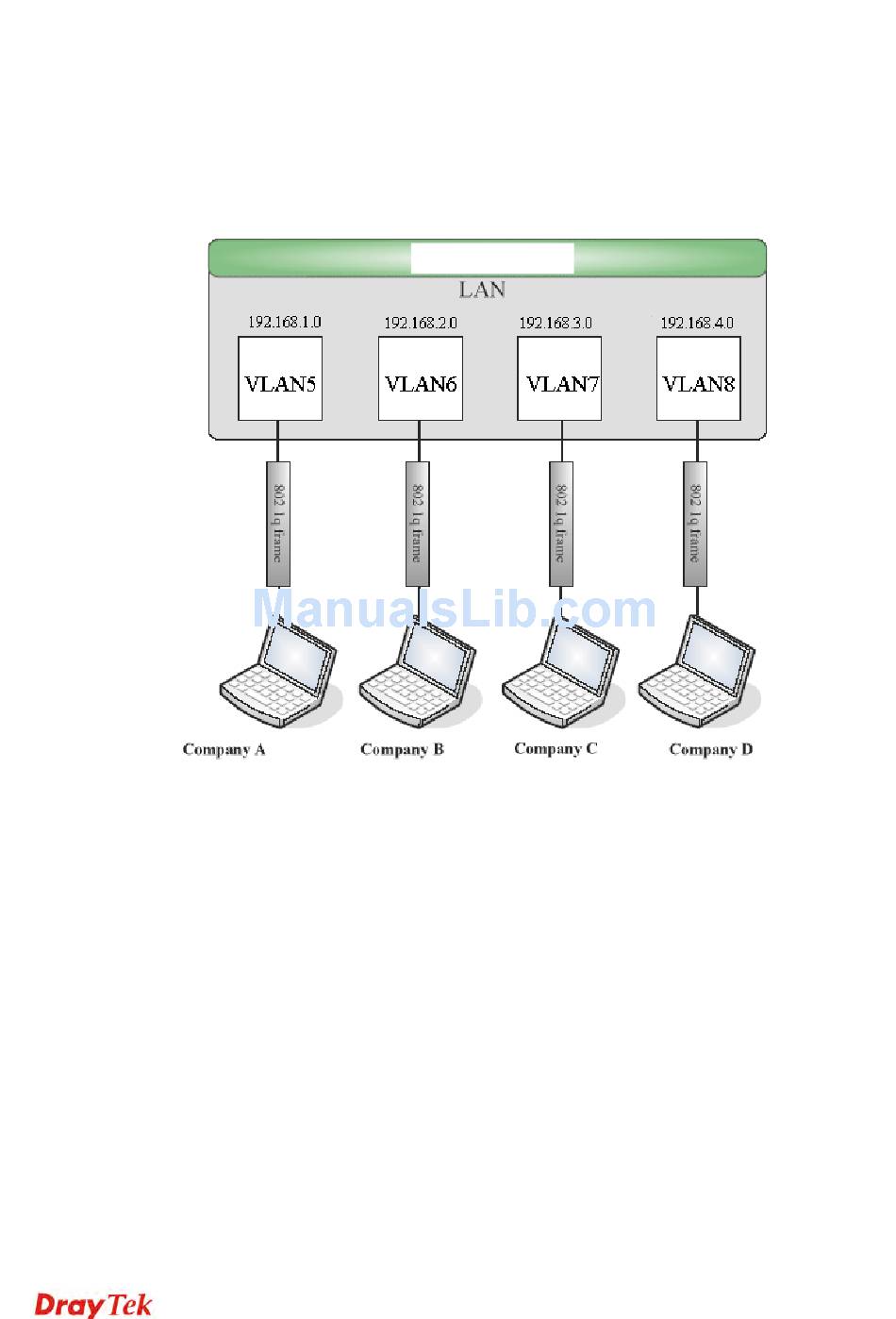

3.1.5 Example for the Companies in the Same Building
There are four companies in the same building. They share the broadband network and use
the Vigor3300V+ router to achieve the load balance, security, and VoIP features. In this case,
we can define four VLANs including VLAN5, VLAN6, VLAN7 and VLAN8. The subnet of
VLAN5 is 192.168.1.0; the subnet of VLAN6 is 192.168.2.0; the subnet of VLAN7 is
192.168.3.0; and the subnet of VLAN8 is 192.168.4.0.
P
r
o
c
e
d
u
r
e
P
r
o
c
e
d
u
r
e
1.
Refer to A.1 to block LAN-to-LAN communication.
2.
Create VLAN5, VLAN6, VLAN7 and VLAN8 Groups.
3.
In the VLAN5, type "5" to VLAN ID. In the Member field, choose p1. Then choose the
"Tagged" for Frame Tag Operation in p1. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from the PC of company A.
4.
In the VLAN6, type "6" to VLAN ID. In the Member field, choose p2. Then choose the
"Tagged" for Frame Tag Operation in p2. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from company B.
5.
In the VLAN7, type "7" to VLAN ID. In the Member field, choose p3. Then choose the
"Tagged" for Frame Tag Operation in p3. We can ignore the PVID (Port VLAN ID),
because 802.1q tag will be inserted to the frame from the PC of company C.
:
:
