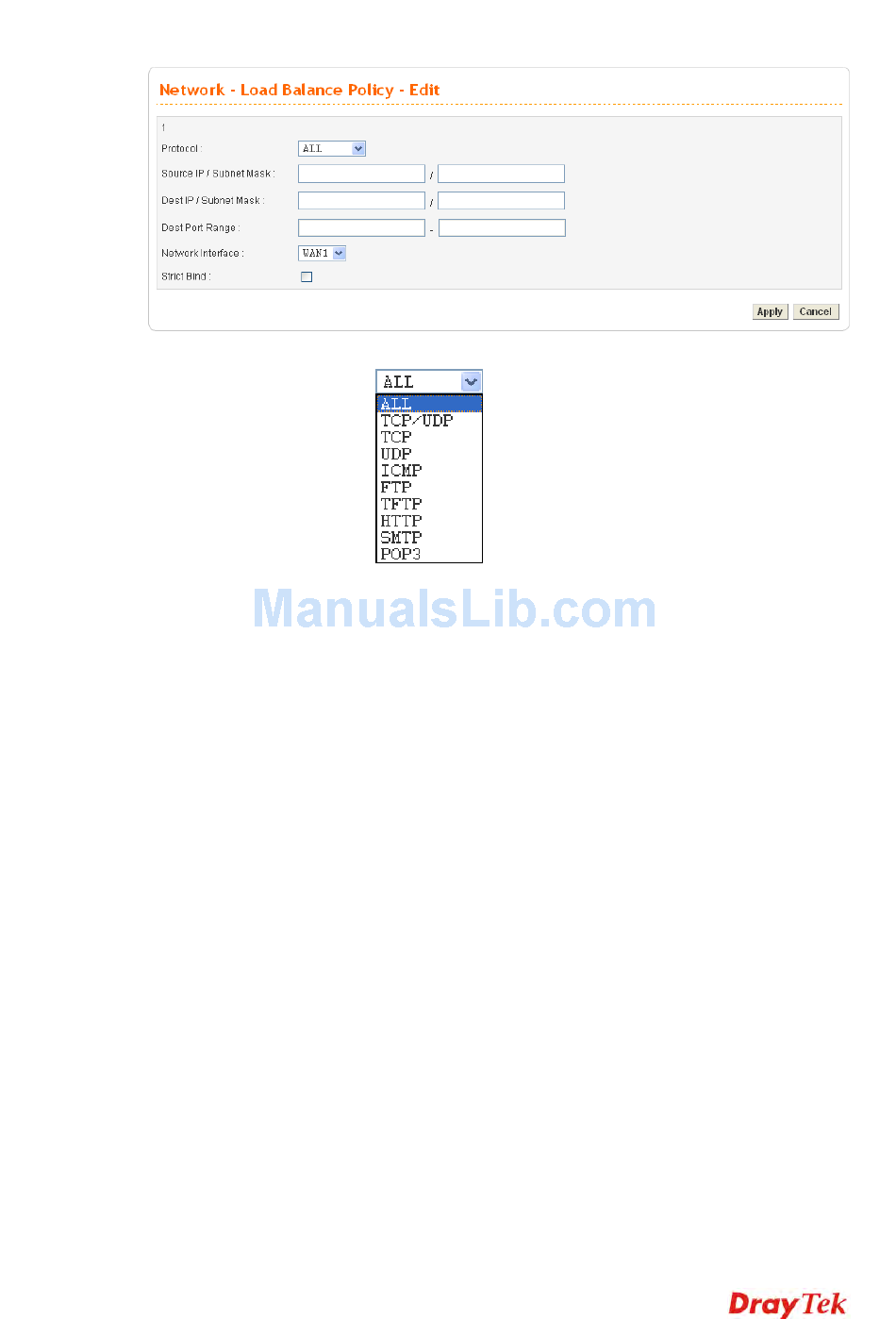

Protocol
Source IP/Subnet Mask
Dest IP/Subnet Mask
Dest Port Range
Network Interface
Strict Bind
Apply
Vigor3300V+ Series User's Guide
Select the desired protocol for the selected entry.
Assign a source IP address and subnet of certain host in LAN
for applying load balance policy.
Assign a destination IP address and subnet of certain host in
LAN for applying load balance policy.
Assign a destination port number range. The port range is
from 1 to 65535. If you choose All as the protocol, you don't
need to type any number here.
Select an interface (WAN1 to WAN4) to be forwarded to.
Packets fitting the above settings can be routed through the
selected interface only. Check this box to invoke this function.
Click Apply to save all configurations.
111
