Protocol
Source IP
Subnet Mask
Dest IP
Subnet Mask
Dest Port Start
Dest Port End
Network Interface
Strict Bind
Edit
Delete/Delete All

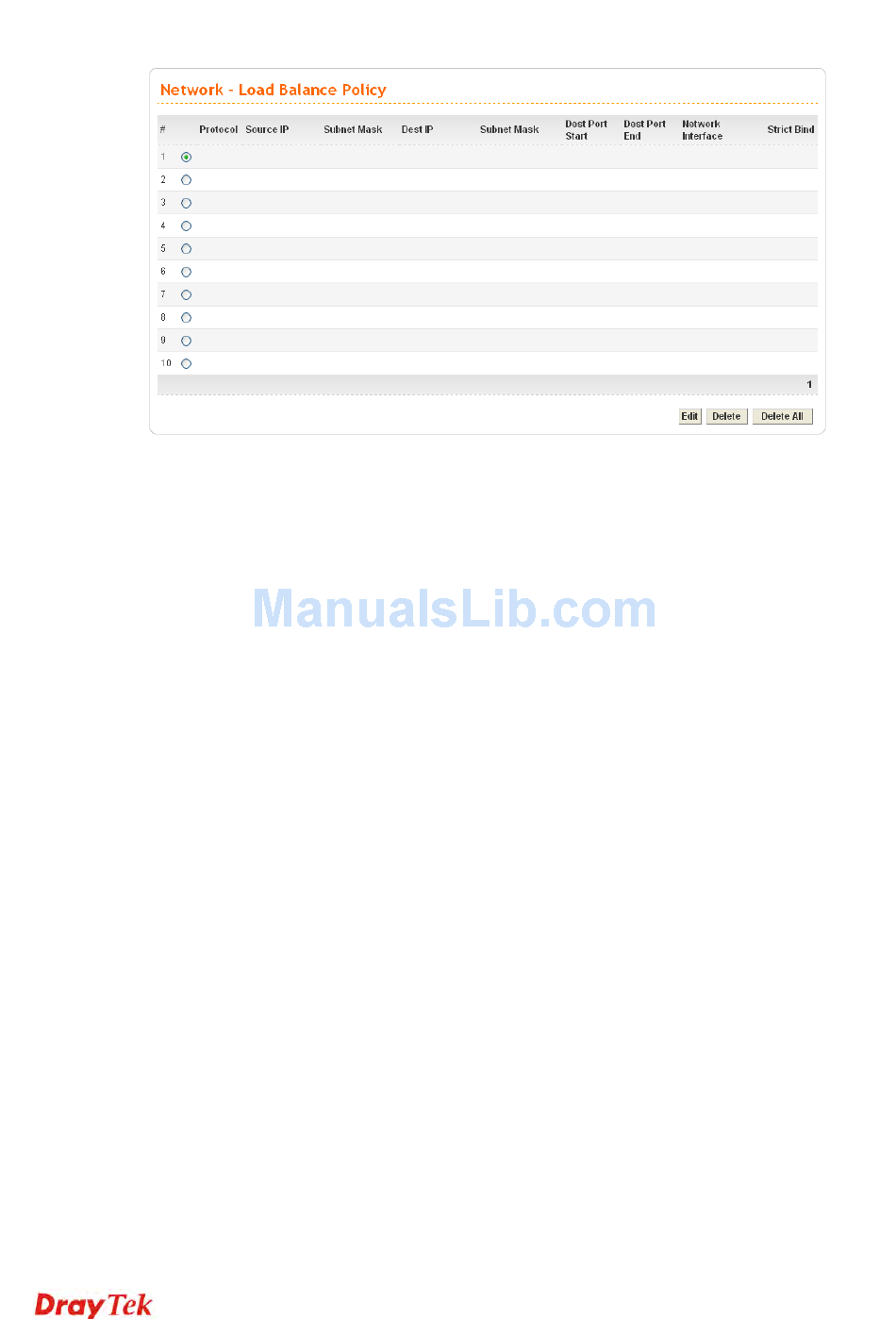

To edit an entry, select it by clicking the radio button (from 1 to 10). Then click the Edit
button on the bottom to bring up the following Web page.
Display the protocol used for this entry.
Display the source IP address specified for this entry.
Display the subnet mask address specified for the source IP of
this entry.
Display the destination IP address specified for this entry.
Display the subnet mask address specified for the destination
IP of this entry.
Display the start point specified in the Dest Port Range for
this entry.
Display the end point specified in the Dest Port Range for
this entry.
Display the interface specified for this entry.
Display the status of Strict Bind.
Click this button to open the edit page for adjusting the
settings.
Click this button to delete the selected setting or all settings. A
confirmation dialog box will appear. Click OK to delete this
entry from the Load Balance Policy table. In addition, click
Delete All in the Load Balance Policy page to delete all of 10
entries on this page.
