Service Name
PPPoE IP Alias
MTU
Fixed IP/Fixed IP Address Usually ISP dynamically assigns IP address to you each time
Detect Interval
No-Reply Count
Apply
Reset
P
P
P
P
T
T
P
P
w

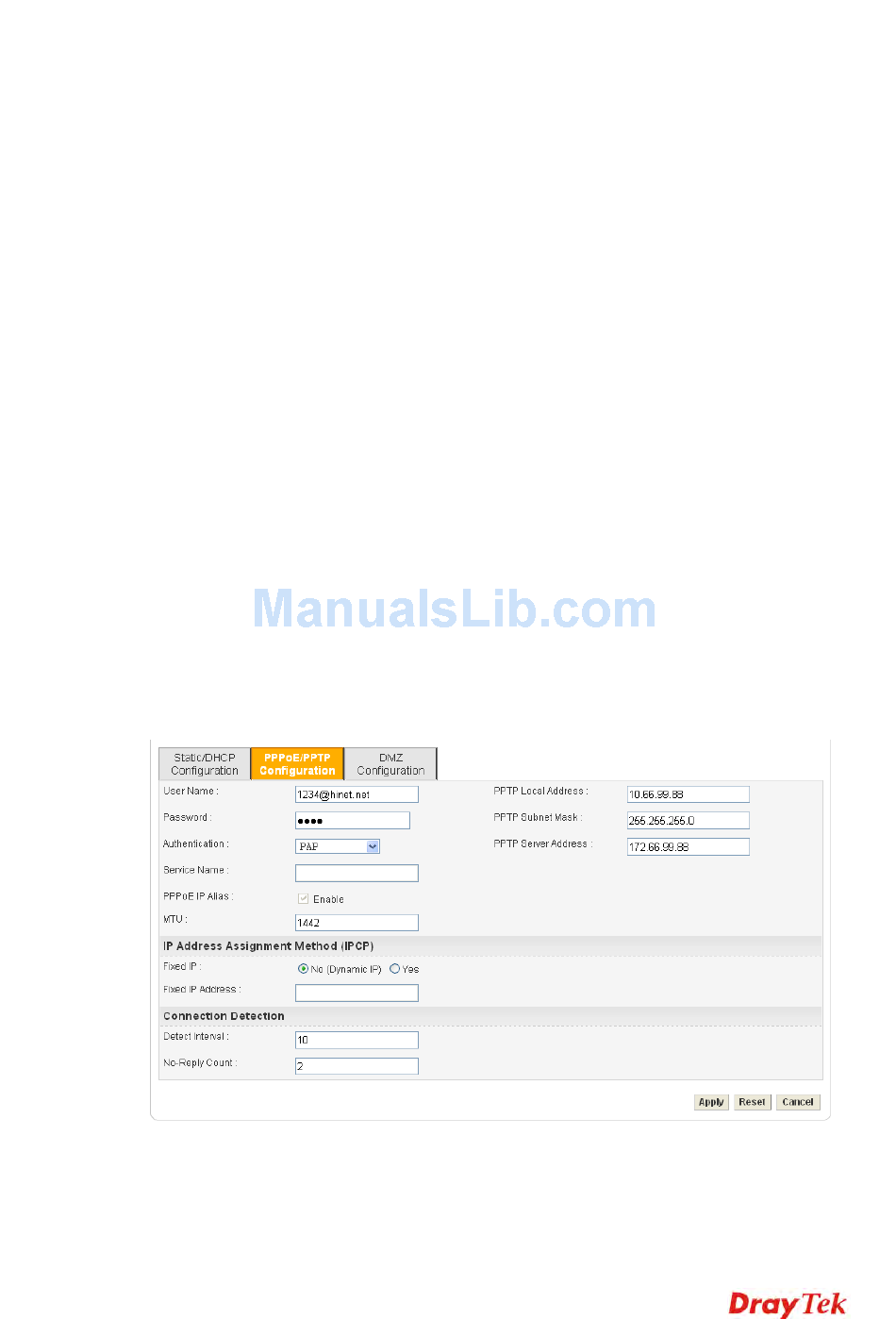

The service provider must provide the exact settings for this mode.
User Name
Password
Authentication
Vigor3300V+ Series User's Guide
w
i
i
t
t
h
h
a
a
D
D
S
S
L
L
M
M
o
o
d
d
e
e
m
m
Assign a service name required for some ISP services.
Set other IP addresses binding in this interface. You can set up
to 32 sets of IP alias settings. If you have typed addresses here,
you can see and choose it in later web page settings (e.g.,
Advanced >> NAT>>Port Redirection/DMZ Host).
Mean maximum transmission unit of one packet. The default
value is 1442.
you connect to it and request. In some case, your ISP provides
service to always assign you the same IP address whenever
you request. In this case, you can fill in this IP address in the
Fixed IP field. Please contact your ISP before you want to use
this function. Click Yes to use this function and type in a fixed
IP address in the box of Fixed IP Address.
Assign an interval time for detecting if the WAN connection
is on or off.
Assign detecting times to ensure the connection of the WAN.
After passing the times you set in this field and no reply
received by the router, the connection of WAN interface will
be regarded as breaking down.
Click Apply to go back to the WAN Interface Configuration
page. To apply all settings, click Apply on the WAN Interface
Configuration page and reboot your router.
Click this button to clear all the configurations for this page.
S
S
e
e
t
t
u
u
p
p
Assign a specific valid user name provided by local ISP.
Assign a valid password provided by local ISP.
Select PAP, CHAP, MS-CHAP or MS-CHAP-V2 protocol
for PPP authentication according to the feature that your ISP
107
