1.3.1 Network Connection
Before starting to configure the router, you have to connect your devices correctly. In this
case, we suppose you have FXS/FXO module inserted into the router.
1.
Connect the power cord to Vigor3300V+'s power port on the rear panel, and the other
side into a wall outlet.
2.
Power on the device by pressing down the power switch on the rear panel. The PWR
LED should be ON.
3.
The system starts to initiate. After completing the system test, the ACT LED will light
up and start blinking.
4.
Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of Vigor3300.
5.
Connect the other end of the cable (RJ-45) to the Ethernet port on your computer (that
device also can connect to other computers to form a small area network). The LAN
LED for that port on the front panel will light up.
6.
Connect a server/modem/router (depends on your requirement) to any WAN port of
Vigor3300V+ with Ethernet cable (RJ-45). The WAN1 (to WAN4) LED will light up.
7.
Connect telephone sets to the FXS ports of Vigor3300V+ with telephone lines (RJ-11
to RJ-11).
8.
Connect the FXO ports to PABX with telephone lines (RJ-11 to RJ-11).

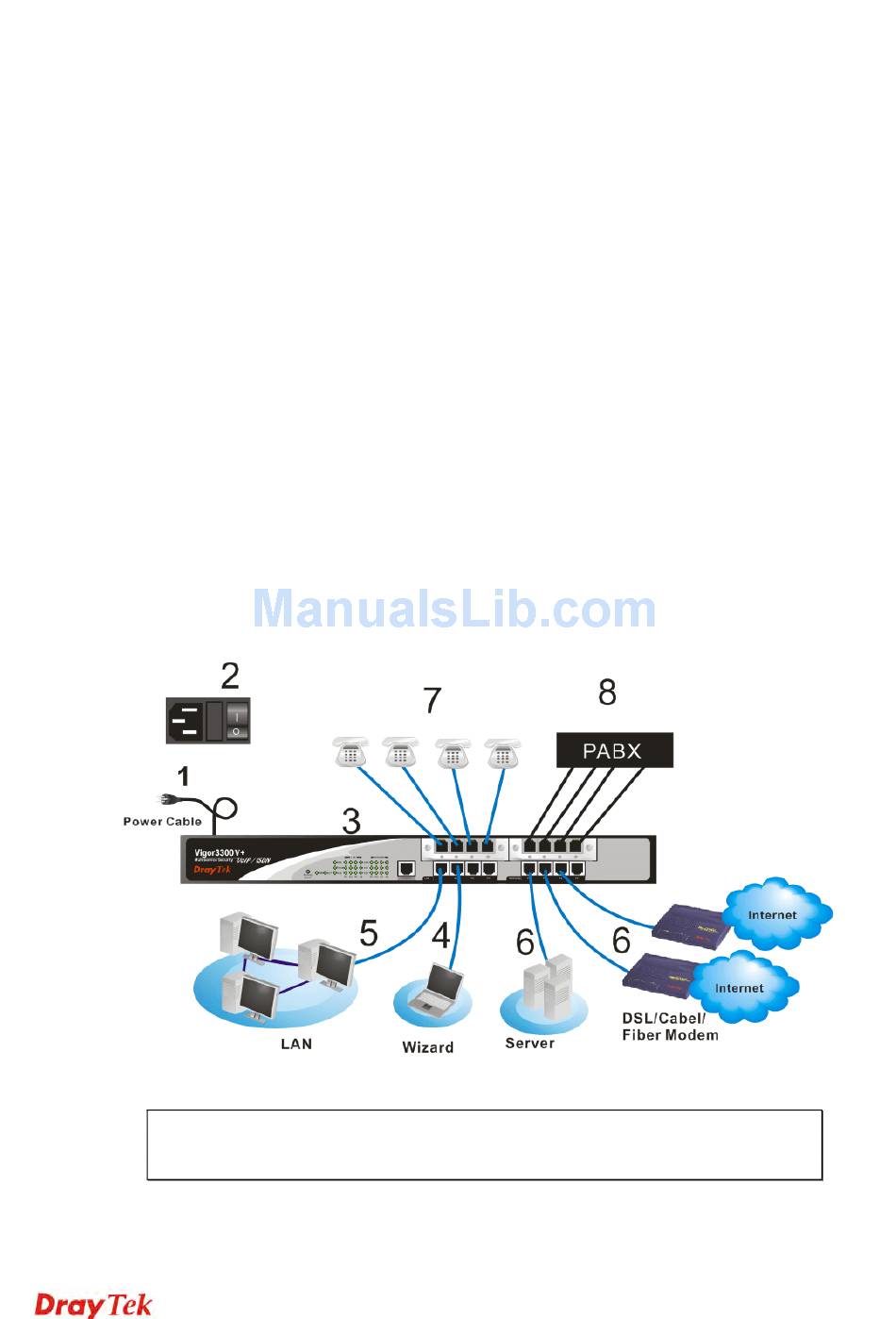

Below shows an outline of the hardware installation for your reference.
Caution: Each of the Phone ports can be connected to an analog phone only. Do not
connect the phone ports to the telephone wall jack. Such connection might damage
your router.
I
n
s
t
a
l
l
a
t
i
o
n
I
n
s
t
a
l
l
a
t
i
o
n
6
Vigor3300V+ Series User's Guide
