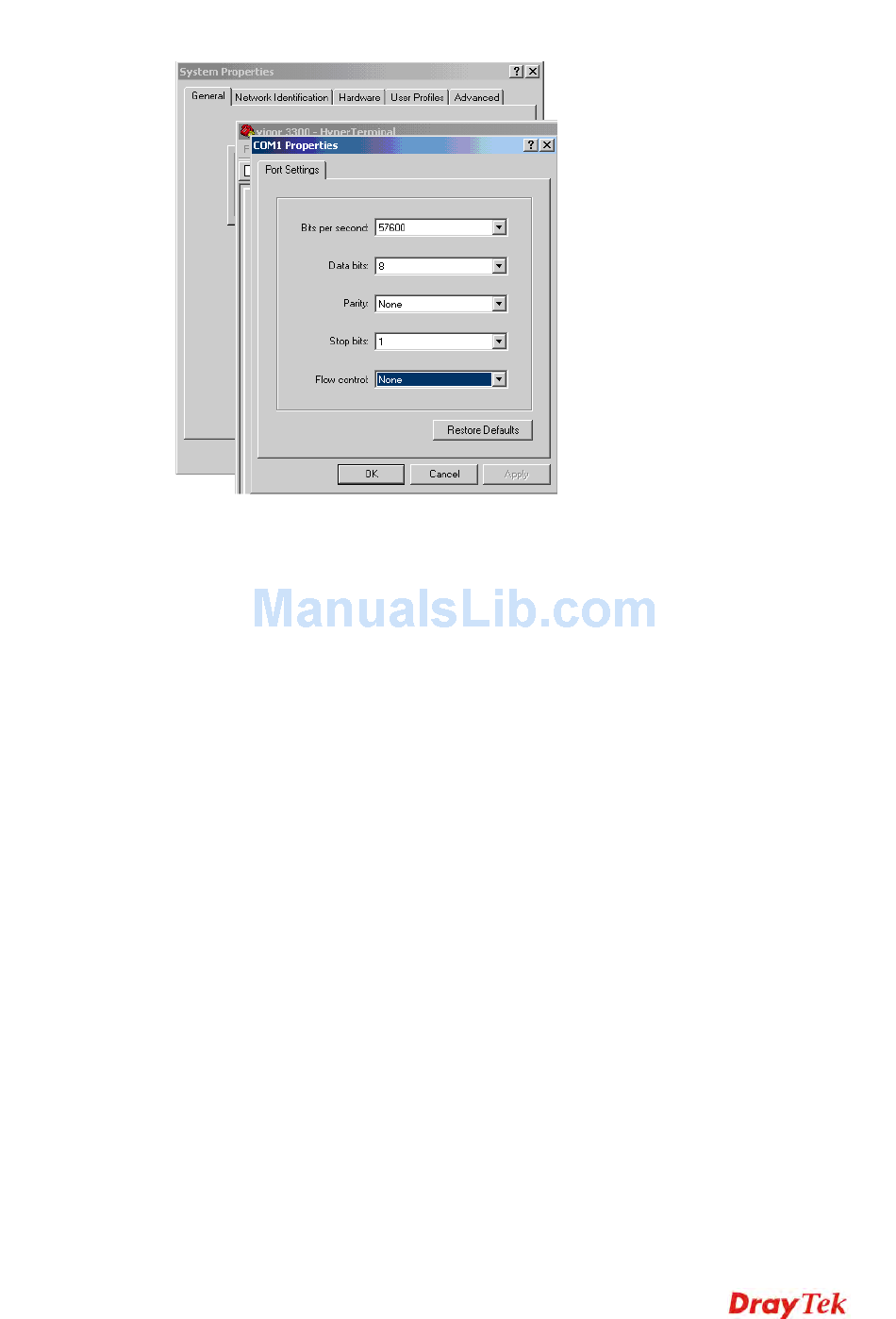

The default setting of the console port is "baud rate 57600, no parity, and 8 bit with 1
stop bit."
3. Power on Vigor3300V+, then press ENTER before the system reboots completely.
4. Open Hyper Terminal on the PC. Now, Vigor3300V+ can accept a TFTP download
and will display the following message:
5. Type the path name of the firmware image and activate the TFTP Client from the PC to
download the image. The corresponding message is shown as follows:
Vigor3300V+ Series User's Guide
****************************
* DrayTek V3300 Bootloader *
****************************
Press [ENTER] key within 5 sec. to download image...2
Current LAN IP is 192.168.1.1
New IP:
Prepare downloading.
TFTP -i 192.168.1.1 PUT [Vigor3300 image file name]
95
