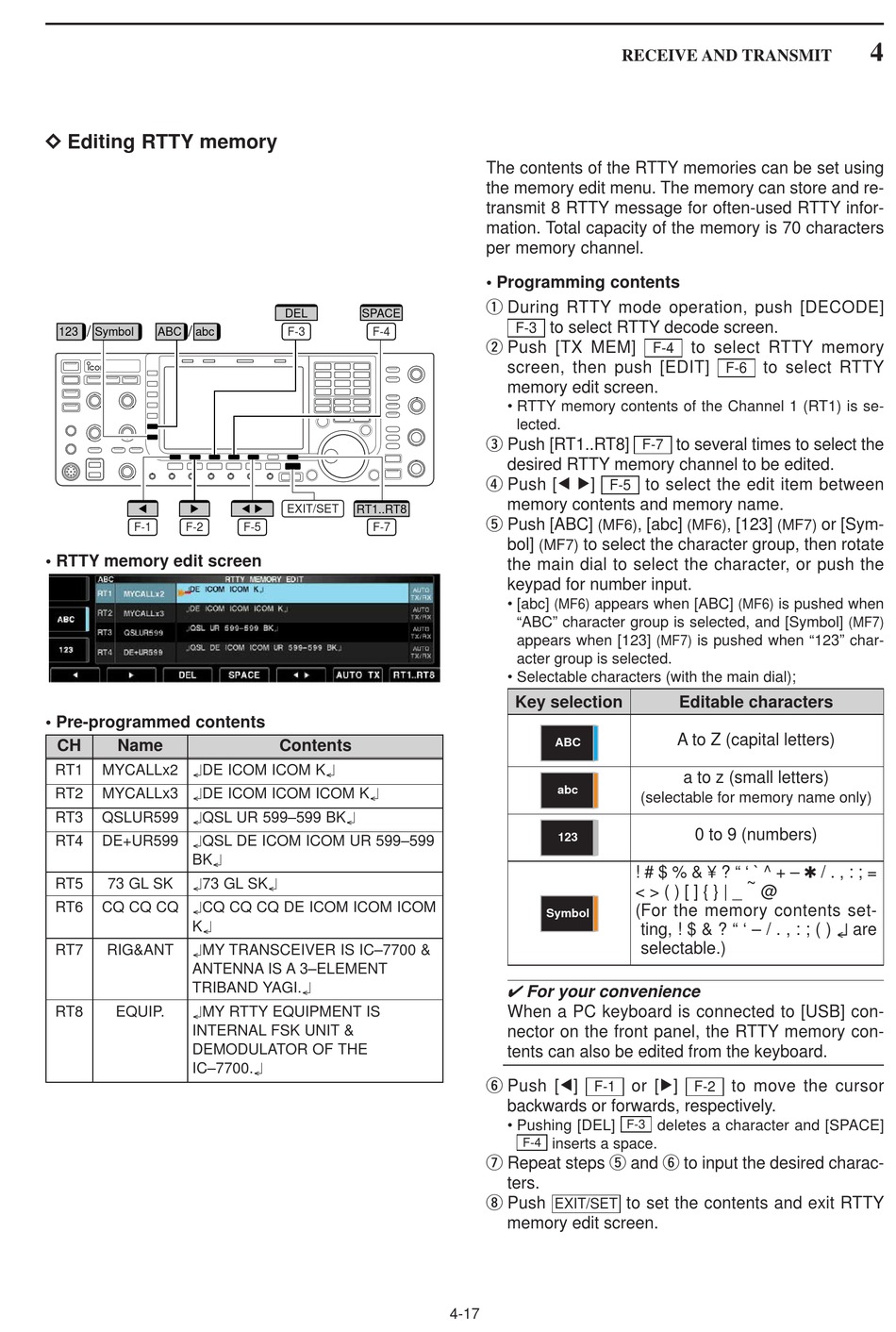

D D Editing RTTY memory
/ /
123 Symbol ABC abc
Ω ≈
F-1 F-2
• RTTY memory edit screen
• Pre-programmed contents
CH Name
RT1 MYCALLx2 ↵DE ICOM ICOM K↵
RT2 MYCALLx3 ↵DE ICOM ICOM ICOM K↵
RT3 QSLUR599 ↵QSL UR 599–599 BK↵
RT4 DE+UR599 ↵QSL DE ICOM ICOM UR 599–599
BK↵
RT5 73 GL SK ↵73 GL SK↵
RT6 CQ CQ CQ ↵CQ CQ CQ DE ICOM ICOM ICOM
K↵
RT7 RIG&ANT ↵MY TRANSCEIVER IS IC–7700 &
ANTENNA IS A 3–ELEMENT
TRIBAND YAGI.↵
RT8 EQUIP. ↵MY RTTY EQUIPMENT IS
INTERNAL FSK UNIT &
DEMODULATOR OF THE
IC–7700.↵
DEL SPACE
F-3 F-4
EXIT/SET
Ω ≈ RT1..RT8
F-5 F-7
Contents
The contents of the RTTY memories can be set using
the memory edit menu. The memory can store and re-
transmit 8 RTTY message for often-used RTTY infor-
mation. Total capacity of the memory is 70 characters
per memory channel.
• Programming contents
q During RTTY mode operation, push [DECODE]
to select RTTY decode screen.
F-3
w Push [TX MEM]
screen, then push [EDIT]
memory edit screen.
• RTTY memory contents of the Channel 1 (RT1) is se-
lected.
e Push [RT1..RT8]
desired RTTY memory channel to be edited.
r Push [Ω ≈]
F-5
memory contents and memory name.
t Push [ABC]
(MF6)
bol] to select the character group, then rotate
(MF7)
the main dial to select the character, or push the
keypad for number input.
• [abc] appears when [ABC]
(MF6)
"ABC" character group is selected, and [Symbol]
appears when [123]
acter group is selected.
• Selectable characters (with the main dial);
Key selection
ABC
abc
123
Symbol
✔ For your convenience
When a PC keyboard is connected to [USB] con-
nector on the front panel, the RTTY memory con-
tents can also be edited from the keyboard.
y Push [Ω]
F-1
backwards or forwards, respectively.
• Pushing [DEL]
F-4 inserts a space.
u Repeat steps t and y to input the desired charac-
ters.
i Push
EXIT/SET
memory edit screen.
4-17
RECEIVE AND TRANSMIT
to select RTTY memory
F-4
to select RTTY
F-6
to several times to select the
F-7
to select the edit item between
, [abc] , [123]
(MF6) (MF7)
is pushed when
(MF6)
is pushed when "123" char-
(MF7)
Editable characters
A to Z (capital letters)
a to z (small letters)
(selectable for memory name only)
0 to 9 (numbers)
! # $ % & ¥ ? " ' ` ^ + – ✱ / . , : ; =
< > ( ) [ ] { } | _ ~ @
(For the memory contents set-
ting, ! $ & ? " ' – / . , : ; ( ) ↵ are
selectable.)
or [≈] to move the cursor
F-2
F-3 deletes a character and [SPACE]
to set the contents and exit RTTY
4
or [Sym-
(MF7)
