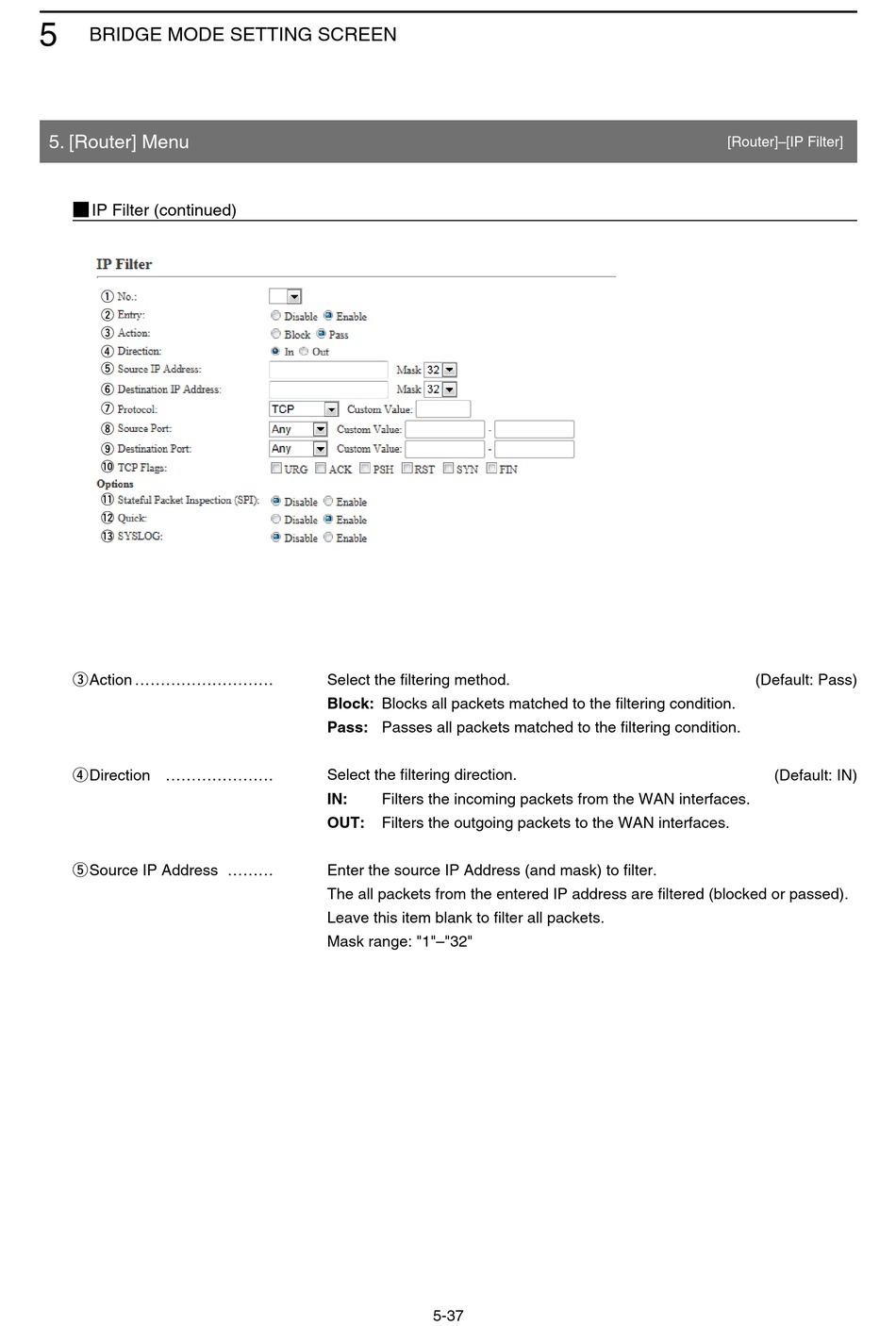

Icom VE-PG3 Instruction Manual page 99

5
BRIDGE MODE SETTING SCREEN
5. [Router] Menu
M IP Filter (continued)
e Action ...........................
r Direction .....................
t Source IP Address .........
Select the filtering method.
Block: Blocks all packets matched to the filtering condition.
Pass: Passes all packets matched to the filtering condition.
Select the filtering direction.
IN:
Filters the incoming packets from the WAN interfaces.
OUT: Filters the outgoing packets to the WAN interfaces.
Enter the source IP Address (and mask) to filter.
The all packets from the entered IP address are filtered (blocked or passed).
Leave this item blank to filter all packets.
Mask range: "1"–"32"
5-37
[Router]–[IP Filter]
(Default: Pass)
(Default: IN)
