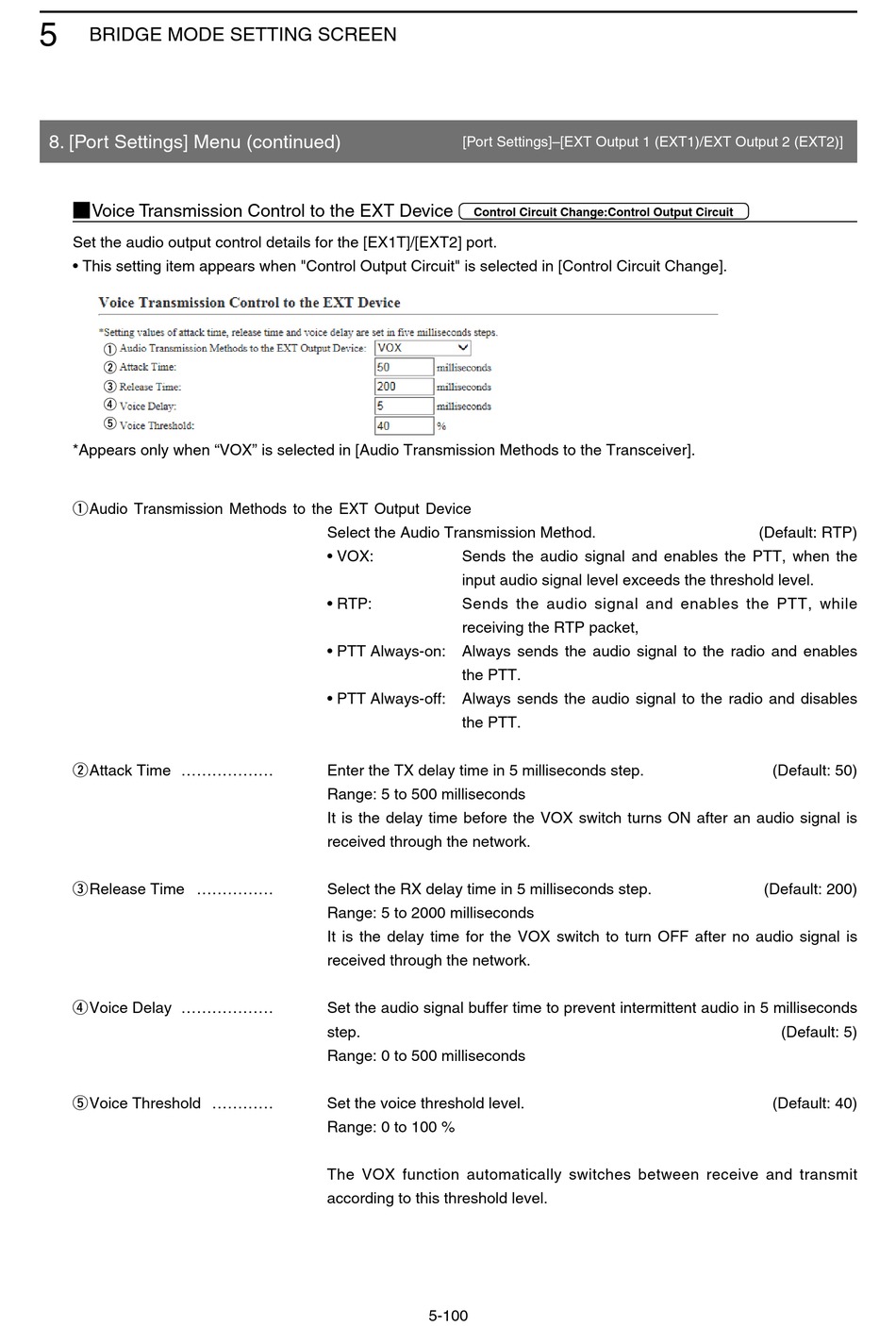

M Voice Transmission Control To The Ext Device - Icom VE-PG3 Instruction Manual

5
BRIDGE MODE SETTING SCREEN
8. [Port Settings] Menu (continued)

M Voice Transmission Control to the EXT Device

Set the audio output control details for the [EX1T]/[EXT2] port.
• This setting item appears when "Control Output Circuit" is selected in [Control Circuit Change].
*Appears only when "VOX" is selected in [Audio Transmission Methods to the Transceiver].
q Audio Transmission Methods to the EXT Output Device
w Attack Time ..................
e Release Time ...............
r Voice Delay ..................
t Voice Threshold ............
[Port Settings]–[EXT Output 1 (EXT1)/EXT Output 2 (EXT2)]
Control Circuit Change:Control Output Circuit
Select the Audio Transmission Method.
• VOX: Sends the audio signal and enables the PTT, when the
input audio signal level exceeds the threshold level.
• RTP: Sends the audio signal and enables the PTT, while
receiving the RTP packet,
• PTT Always-on: Always sends the audio signal to the radio and enables
the PTT.
• PTT Always-off: Always sends the audio signal to the radio and disables
the PTT.
Enter the TX delay time in 5 milliseconds step.
Range: 5 to 500 milliseconds
It is the delay time before the VOX switch turns ON after an audio signal is
received through the network.
Select the RX delay time in 5 milliseconds step.
Range: 5 to 2000 milliseconds
It is the delay time for the VOX switch to turn OFF after no audio signal is
received through the network.
Set the audio signal buffer time to prevent intermittent audio in 5 milliseconds
step.
Range: 0 to 500 milliseconds
Set the voice threshold level.
Range: 0 to 100 %
The VOX function automatically switches between receive and transmit
according to this threshold level.
5-100
(Default: RTP)
(Default: 50)
(Default: 200)
(Default: 5)
(Default: 40)
