CONVERTER MODE APPLICATION

2. Using an in-house sound system

You can send the received audio from a radio or IP phone to an external device, to make announcements. Refer to
the illustration below.
Extension No.
Area A Area B
302
Audio device
External AMP
(for BGM)
Audio output
(A1/A2 terminal) Audio input
(A3/A4 terminal)
HUB
IP
[EXT1] Network
Extension No.
Extension No.
IP Phone No.
401
301
[LAN]
32
[TRX1]
VE-PG3 VE-PG3
Radio A
IP telephone
Radio A1
(192.168.0.2) (192.168.0.3)
(KX-UT Series)

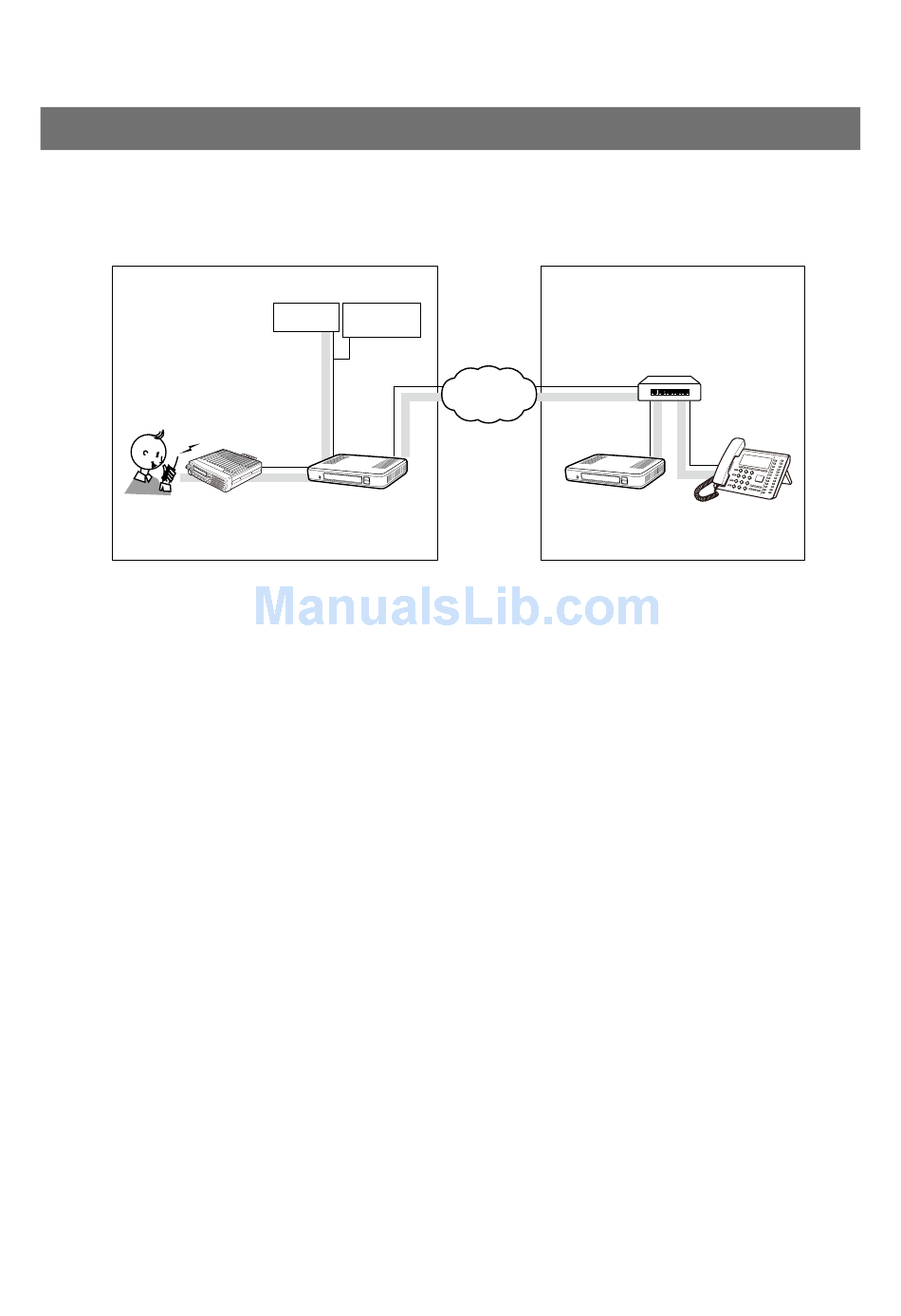

An example of an in-house audiosystem
