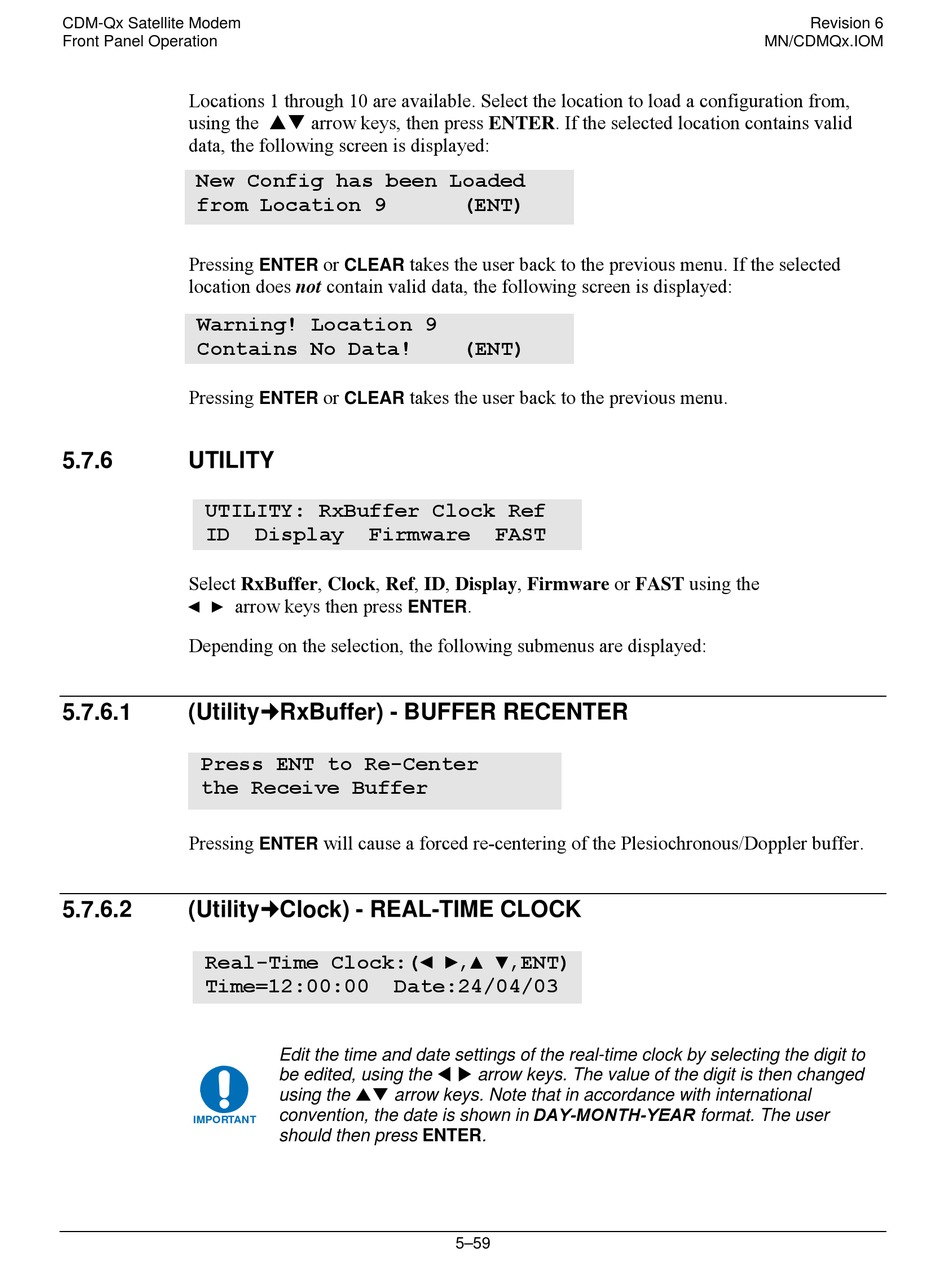

CDM-Qx Satellite Modem
Front Panel Operation
Locations 1 through 10 are available. Select the location to load a configuration from,
using the #$ arrow keys, then press ENTER. If the selected location contains valid
data, the following screen is displayed:
New Config has been Loaded
from Location 9
Pressing
location does not contain valid data, the following screen is displayed:
Warning! Location 9
Contains No Data!
Pressing
5.7.6

UTILITY

UTILITY: RxBuffer Clock Ref
ID
Select RxBuffer, Clock, Ref, ID, Display, Firmware or FAST using the
◄ ► arrow keys then press
Depending on the selection, the following submenus are displayed:
5.7.6.1 (Utility%RxBuffer) - BUFFER RECENTER
Press ENT to Re-Center
the Receive Buffer
Pressing
5.7.6.2 (Utility%Clock) - REAL-TIME CLOCK
Real-Time Clock:(◄ ►,▲ ▼,ENT)
Time=12:00:00
IMPORTANT
or takes the user back to the previous menu. If the selected
ENTER CLEAR
or takes the user back to the previous menu.
ENTER CLEAR
Display Firmware
ENTER
will cause a forced re-centering of the Plesiochronous/Doppler buffer.
ENTER
Date:24/04/03
Edit the time and date settings of the real-time clock by selecting the digit to
be edited, using the ! " arrow keys. The value of the digit is then changed
using the #$ arrow keys. Note that in accordance with international
convention, the date is shown in DAY-MONTH-YEAR format. The user
should then press ENTER.
(ENT)
(ENT)
FAST
.
5–59
Revision 6
MN/CDMQx.IOM
