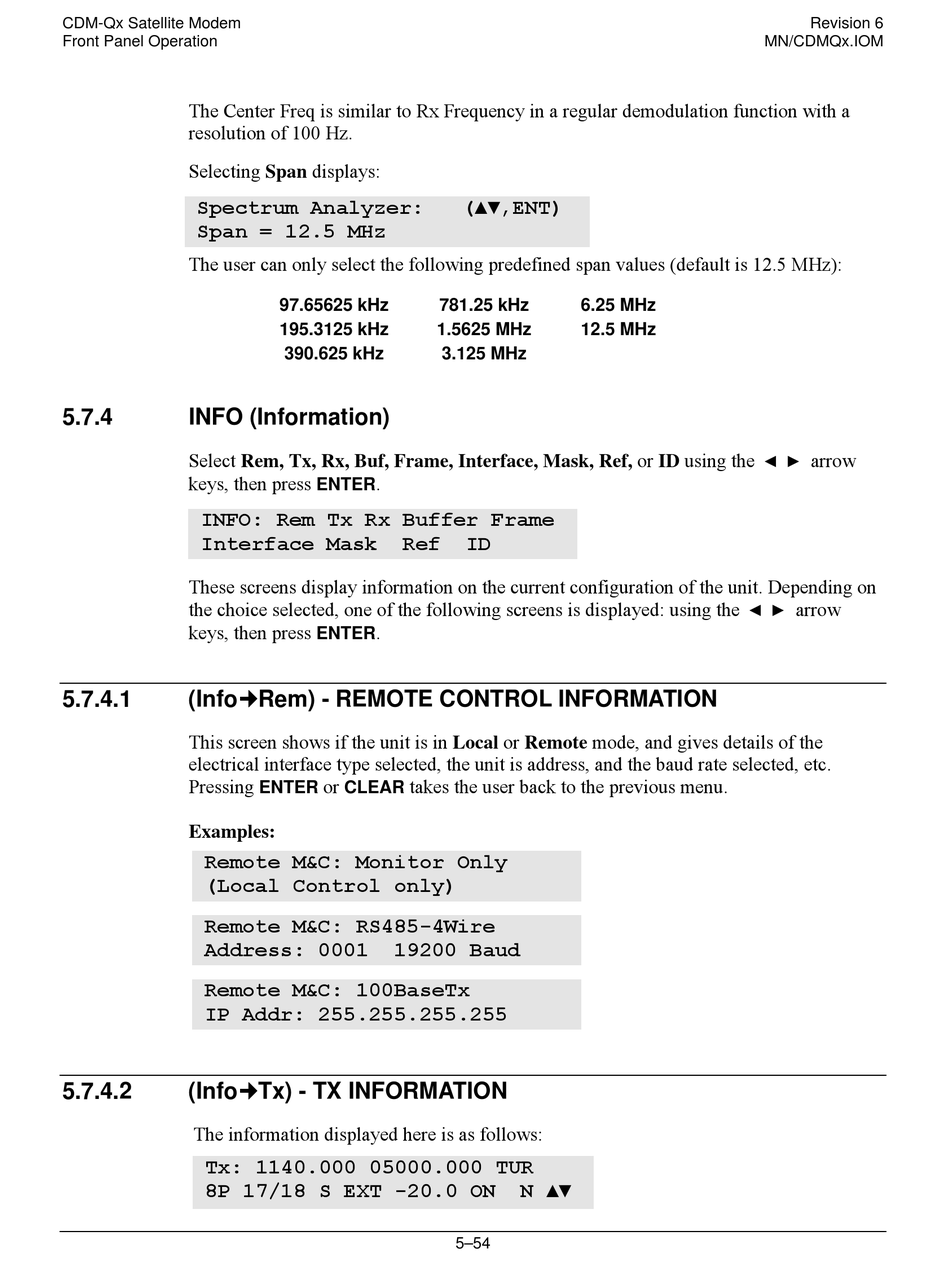

Front Panel Operation
The Center Freq is similar to Rx Frequency in a regular demodulation function with a
resolution of 100 Hz.
Selecting Span displays:
Spectrum Analyzer:
Span = 12.5 MHz
The user can only select the following predefined span values (default is 12.5 MHz):
5.7.4

INFO (Information)

Select Rem, Tx, Rx, Buf, Frame, Interface, Mask, Ref, or ID using the ◄ ► arrow
keys, then press
INFO: Rem Tx Rx Buffer Frame
Interface Mask
These screens display information on the current configuration of the unit. Depending on
the choice selected, one of the following screens is displayed: using the ◄ ► arrow
keys, then press
5.7.4.1 (Info%Rem) - REMOTE CONTROL INFORMATION
This screen shows if the unit is in Local or Remote mode, and gives details of the
electrical interface type selected, the unit is address, and the baud rate selected, etc.
Pressing
Examples:
Remote M&C: Monitor Only
(Local Control only)
Remote M&C: RS485-4Wire
Address: 0001
Remote M&C: 100BaseTx
IP Addr: 255.255.255.255
5.7.4.2 (Info%Tx) - TX INFORMATION
The information displayed here is as follows:
Tx: 1140.000 05000.000 TUR
8P 17/18 S EXT -20.0 ON
97.65625 kHz
195.3125 kHz 1.5625 MHz
390.625 kHz
.
ENTER
Ref
.
ENTER
or takes the user back to the previous menu.
ENTER CLEAR
19200 Baud
(▲▼,ENT)
781.25 kHz 6.25 MHz
12.5 MHz
3.125 MHz
ID
N ▲▼
5–54
