CDM-Qx Satellite Modem
Front Panel Operation

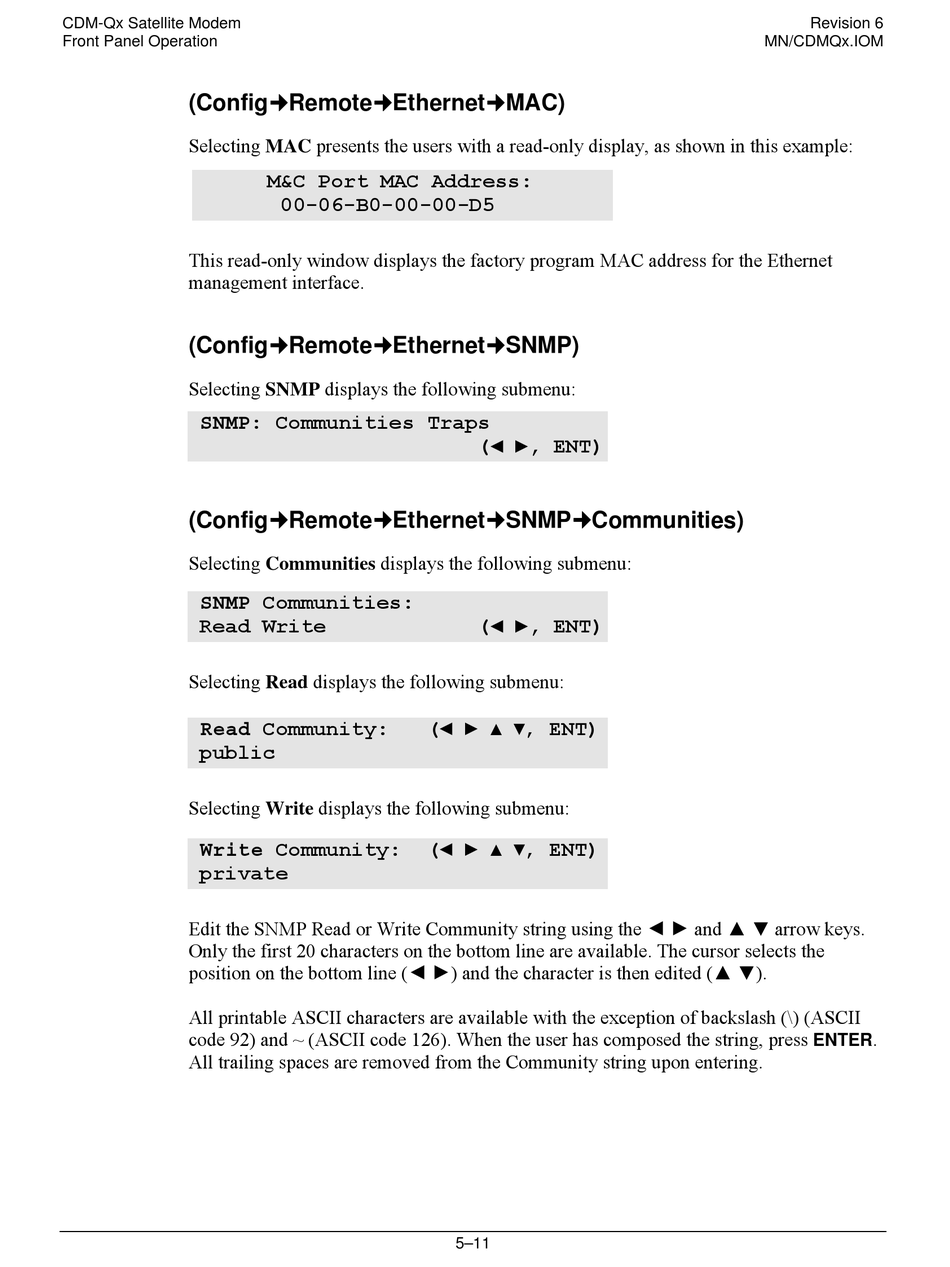

(Config%Remote%Ethernet%MAC)
Selecting MAC presents the users with a read-only display, as shown in this example:
This read-only window displays the factory program MAC address for the Ethernet
management interface.
(Config%Remote%Ethernet%SNMP)
Selecting SNMP displays the following submenu:
SNMP: Communities Traps
(Config%Remote%Ethernet%SNMP%Communities)
Selecting Communities displays the following submenu:
SNMP Communities:
Read Write
Selecting Read displays the following submenu:
Read Community:
public
Selecting Write displays the following submenu:
Write Community:
private
Edit the SNMP Read or Write Community string using the ◄ ► and ▲ ▼ arrow keys.
Only the first 20 characters on the bottom line are available. The cursor selects the
position on the bottom line (◄ ►) and the character is then edited (▲ ▼).
All printable ASCII characters are available with the exception of backslash (\) (ASCII
code 92) and ~ (ASCII code 126). When the user has composed the string, press
All trailing spaces are removed from the Community string upon entering.
M&C Port MAC Address:
00-06-B0-00-00-D5
(◄ ►
(◄ ►
(◄ ►, ENT)
(◄ ►, ENT)
ENT)
▲ ▼,
ENT)
▲ ▼,
5–11
Revision 6
MN/CDMQx.IOM
.
ENTER
