CDM-Qx Satellite Modem
Front Panel Operation

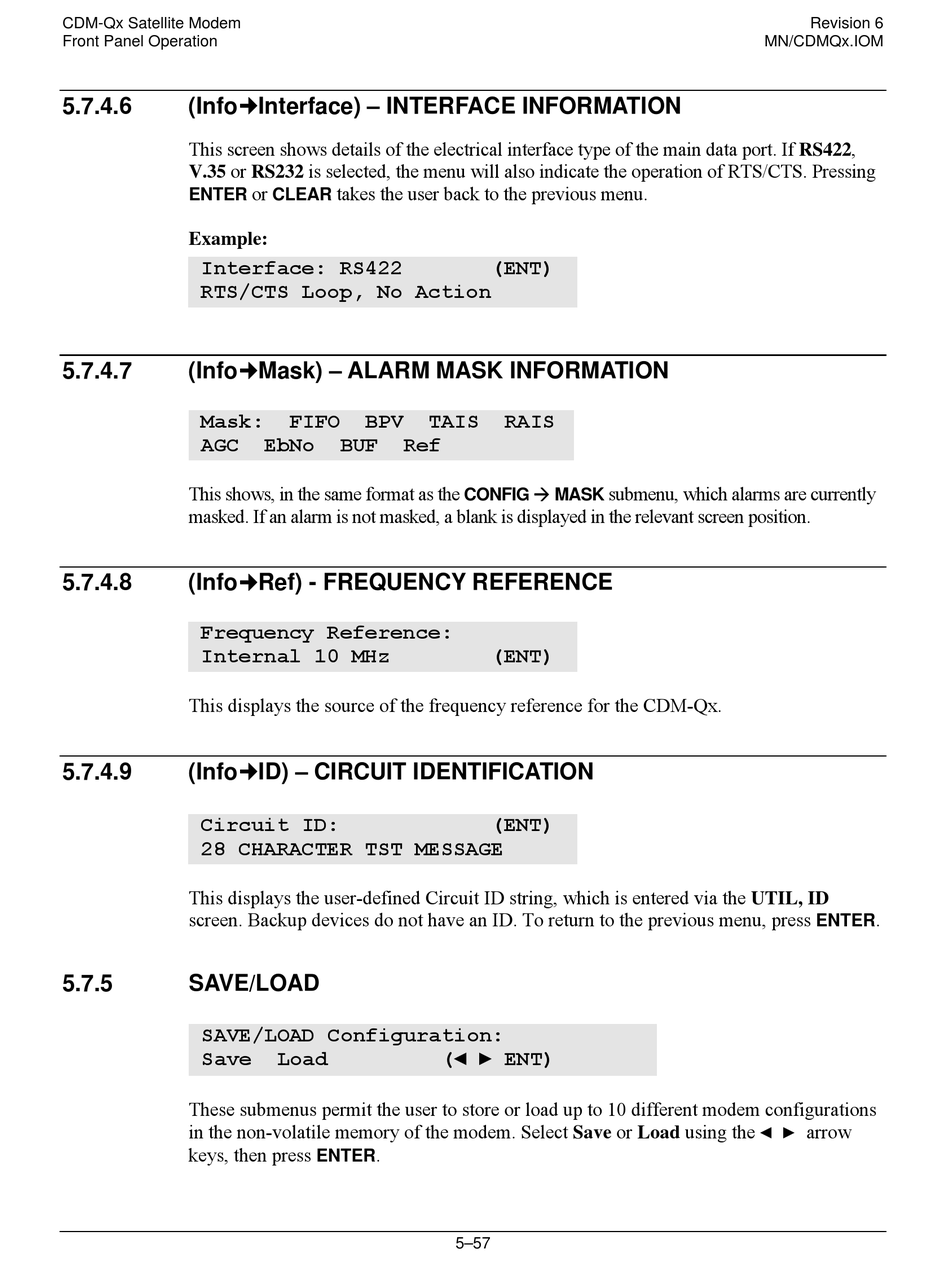

5.7.4.6
(Info%Interface) – INTERFACE INFORMATION
This screen shows details of the electrical interface type of the main data port. If RS422,
V.35 or RS232 is selected, the menu will also indicate the operation of RTS/CTS. Pressing
ENTER
Example:
Interface: RS422
RTS/CTS Loop, No Action
5.7.4.7
(Info%Mask) – ALARM MASK INFORMATION
Mask:
AGC
This shows, in the same format as the
masked. If an alarm is not masked, a blank is displayed in the relevant screen position.
5.7.4.8
(Info%Ref) - FREQUENCY REFERENCE
Frequency Reference:
Internal 10 MHz
This displays the source of the frequency reference for the CDM-Qx.
5.7.4.9
(Info%ID) – CIRCUIT IDENTIFICATION
Circuit ID:
28 CHARACTER TST MESSAGE
This displays the user-defined Circuit ID string, which is entered via the UTIL, ID
screen. Backup devices do not have an ID. To return to the previous menu, press
5.7.5
SAVE/LOAD
SAVE/LOAD Configuration:
Save
These submenus permit the user to store or load up to 10 different modem configurations
in the non-volatile memory of the modem. Select Save or Load using the ◄ ► arrow
keys, then press
or
takes the user back to the previous menu.
CLEAR
FIFO
BPV
TAIS
EbNo
BUF
Ref
Load
.
ENTER
(ENT)
RAIS
submenu, which alarms are currently
CONFIG ! MASK
(ENT)
(ENT)
(◄ ► ENT)
5–57
Revision 6
MN/CDMQx.IOM
.
ENTER
